Panduit FRZTP77X001M007 OM4 Fiber Cable

Panduit FRZTP77X001M007 OM4 Fiber Cable

Overview

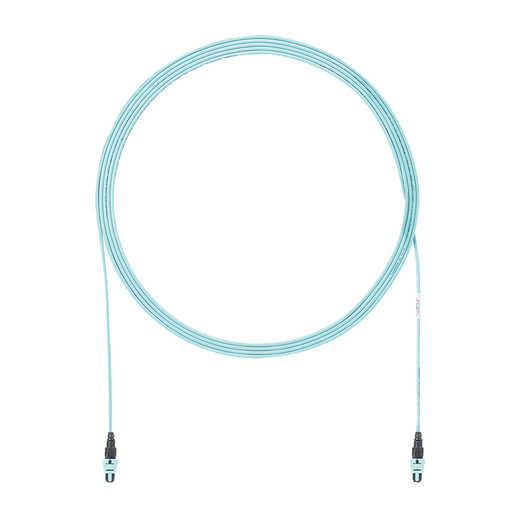

The Panduit FRZTP77X001M007 is a 7-meter (23 ft) OM4 12-fiber optic cable featuring MPO Female connectors on both ends. This pre-terminated cable is engineered for high-density environments like data centers, telecommunications rooms, and equipment distribution areas, enabling rapid deployment of fiber infrastructure. Its OM4 multimode fiber supports higher bandwidth applications compared to OM3, making it suitable for 10/40/100 GbE networks.

Compatibility

This cable is designed for use in environments requiring TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B compliant fiber optic cabling. It is compatible with network equipment and patch panels utilizing MPO Female connectors, commonly found in enterprise data center backbone and high-speed interconnect applications. Ensure your equipment ports match the MPO Female connector type for a secure connection.

Installation Notes

The OM4 fiber supports 50/125µm core/cladding diameters. When installing, maintain a minimum bend radius of 50mm (2 inches) for the 7-meter cable to prevent signal degradation or damage. The MPO connectors are keyed to prevent incorrect orientation, and a secure push-pull latching mechanism ensures proper seating.
