Panduit FYZTP77Y006F041 OM4 Fiber Trunk Cable

Panduit FYZTP77Y006F041 OM4 Fiber Trunk Cable

Overview

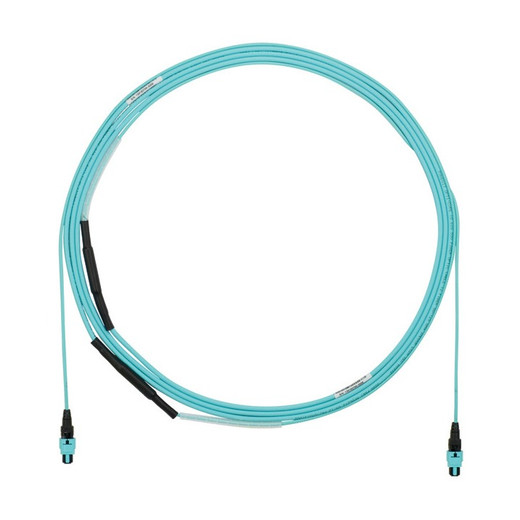

The Panduit FYZTP77Y006F041 is a 41-foot (12.5m) OM4 multimode fiber optic trunk cable assembly. It is designed for high-density data center and telecommunications room environments where rapid deployment of pre-terminated fiber infrastructure is critical for building out backbone or horizontal cabling systems. This assembly supports 12 fibers within a 50/125µm core/cladding diameter, providing the bandwidth needed for demanding network applications.

Compatibility

This Panduit QuickNet™ HD Flex trunk cable is engineered for use within Panduit's QuickNet™ HD Flex system infrastructure. It is compatible with Panduit's QuickNet™ HD Flex MPO/MTP cassettes and patch panels, as well as other standard-compliant MPO/MTP connector interfaces common in high-density fiber deployments. Ensure your receiving equipment utilizes MPO/MTP connectors for seamless integration.

Installation Notes

Adhere to standard fiber optic cable handling procedures to avoid kinks or excessive tension, which can degrade performance. Maintain a minimum bend radius of 41mm (1.6 inches) for the cable assembly during and after installation. Ensure connectors are clean before mating to prevent signal loss and damage. The cable is rated for indoor use in controlled environments.

Standards

This trunk cable assembly meets TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, ensuring interoperability and performance compliance within enterprise and data center network architectures. The OM4 fiber type supports high-speed data transmission protocols commonly found in these environments.
