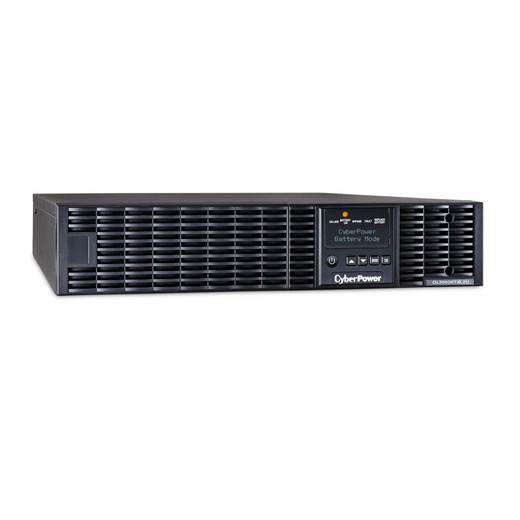

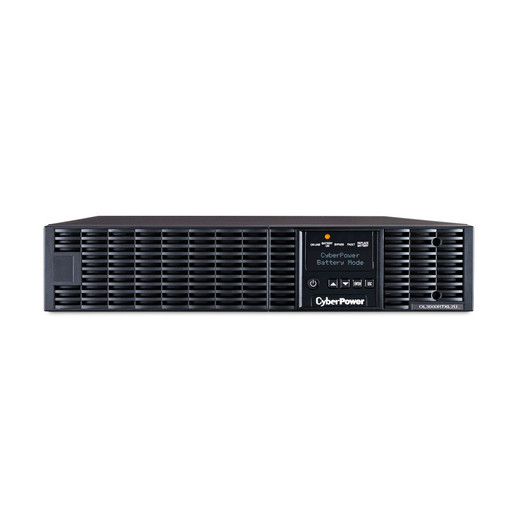

CyberPower OL3000RTXL2U Double-Conversion Online UPS
The CyberPower OL3000RTXL2U is a 3000VA / 2700W rack-mount UPS designed for surveillance networks, network closets, and edge compute environments where continuous power and zero-transfer switching are non-negotiable. Double-conversion (online) topology means the unit runs in true online mode 100% of the time — no transfer delay, no electrical noise from utility fluctuations reaching your cameras, NVRs, or network equipment. This matters: even brief utility glitches that don't trigger traditional standby UPS handoff can corrupt surveillance buffer or spike sensitive network cards.
Key Features
- Double-Conversion Online Topology: 0 ms transfer time when battery engages. Unlike standby or line-interactive designs, online UPS continuously converts AC to DC and back to a clean sine wave, protecting against sag, surge, and frequency variation — critical for 24/7 surveillance recording where even a microsecond dropout can trigger NVR watchdog resets or frame loss.
- 3000VA / 2700W at 0.9 Power Factor: Adequate for 4–6 IP cameras + PoE switch + NVR + networking gear in a typical retail or warehouse deployment. At full load, you get 4 minutes of runtime; at 50% load (common during idle camera periods), runtime extends to 12.5 minutes — enough time for graceful shutdown or to ride out a brief power restoration attempt.
- Six NEMA 5-20R + One NEMA L5-30R Outlets: Dual outlet types accommodate standard rack PDUs and 30A branch circuits. Each 5-20R is individually protected, so a downstream short doesn't take down all attached equipment.
- Hot-Swappable Sealed Lead-Acid Batteries (6x 12V/9Ah): Battery module slides out without shutting down the UPS. On surveillance deployments running 24/7, this means scheduled battery replacement during low-traffic hours without pulling power to cameras or recording. Recharge cycle: 0–90% in 4 hours, keeping recovery downtime predictable.
- Extended Battery Module Support (Up to 10 EBMs): If 4 min full-load runtime isn't sufficient, stack up to 10 external battery modules (BP72V60ART2U). Useful for remote sites or sites with unreliable utility — you can stretch runtime to 40+ minutes with full external capacity, buying time for generator startup or manual intervention.
- PowerPanel Business Edition Management Software: USB, Serial, Network, Relay, and EPO connectivity. Network card sends SNMP traps to your NOC if utility power fails, battery drains past threshold, or load exceeds capacity. Relay contacts can trigger a pager or email alert, or pulse a relay-driven emergency light or door unlock. EPO (Emergency Power Off) port hardwires a shutdown signal for compliance scenarios or remote shutdown from security keypad.
- RJ11/RJ45 Combo Surge Protection + 1335J Suppression: Data line protection on both phone and network lines prevents surge current from a nearby lightning strike from entering your NVR network interface or modem. 1335J is modest by standalone surge-protector standards but respectable for an integrated UPS PDU — sufficient to shunt most common transients without sacrificing lifespan.
- ECO Mode (>95% Efficiency): When utility voltage is nominal, ECO mode runs the UPS in high-efficiency bypass, drawing only inverter standby current and eliminating the thermal load of double-conversion. Useful in data centers or warm climates where every watt of cooling cost matters. Automatic failover to online mode if input voltage drifts outside tolerance.
- Generator-Compatible Design: Many online UPS units struggle with generator output (rougher waveform, less stable frequency than utility), but the OL3000RTXL2U is explicitly rated for it. If your site runs a backup generator during extended outages, this UPS will not falsely trigger low-battery shutdown from perceived frequency drift.
- 2U Rack or Tower Configuration: Ships as either a rack-mount unit (2U in a standard 19-inch rack) or free-standing tower. Useful if your network closet has mixed 19-inch and non-racked equipment. Removable, rotatable LCD display and control panel lets you orient the interface toward a cable entry or facing an operator workstation.
- UL1778 / CSA / RoHS / FCC Class A Compliance: Meets North American safety and EMC standards. UL1778 is the baseline for commercial UPS units. FCC Class A means the unit is designed for industrial/commercial environments and may emit some RF energy — non-issue in most surveillance closets, but relevant if you're installing next to sensitive radio or cellular test equipment.
Integration & Compatibility
The OL3000RTXL2U integrates via SNMP network card (standard on most commercial-grade UPS units) and relay contacts. PowerPanel Business Edition runs on Windows, Linux, or macOS in your NOC and polls the UPS every 5–10 seconds for status, load, battery voltage, and runtime estimates. If your VMS vendor supports UPS monitoring (common in Milestone Xprotect, Genetec Security Center, and exacqVision), SNMP traps can be forwarded to your VMS event log, triggering a visual alert when battery backup engages. Relay closure can drive external equipment: pagers, SMS gateways, emergency notification systems, or door latches.
Generator compatibility means the OL3000RTXL2U is a solid choice for sites with automatic transfer switches (ATS) — the UPS will feed from either utility or genset without false low-battery events. Serial port allows daisy-chaining to a second UPS or networked PDU for coordinated shutdown across redundant NVRs.
Environmental & Operating Parameters
Operating temperature range: 32–104°F (0–40°C), typical for indoor network closets. Humidity tolerance: 0–90% non-condensing. At the upper temperature limit (104°F), sealed lead-acid batteries age faster, so if your closet lacks active cooling and regularly hits 95°F+, plan for battery replacement every 3–4 years rather than the nominal 5–year lifespan. At comfortable 68°F, expect 5–6 years from a full battery set before capacity drops below usable threshold (typically 80% of rated capacity).
What's in the Box
UPS unit, 10-foot input power cord with NEMA L5-30P plug, multifunction LCD display panel, wall-mounting hardware (if tower config), Serial-to-USB cable, and PowerPanel Business Edition CD. USB and network connectivity cables are not included — bring standard USB-B (for direct-attached PC) or bring your own CAT5e/CAT6 for network card installation.
Frequently Asked Questions
Q: What's the warranty on the OL3000RTXL2U?
A: 3-year limited manufacturer warranty on the unit; lifetime $400,000 Connected Equipment Guarantee (covers damaged downstream equipment if UPS failure causes harm, within policy limits).
Q: Can I add more runtime with external batteries?
A: Yes. The OL3000RTXL2U supports up to 10 external battery modules (BP72V60ART2U), each adding runtime. Full configuration with 10 modules extends runtime from 4 minutes (full load, internal batteries only) to approximately 40+ minutes depending on load profile.
Q: Does the OL3000RTXL2U work with generator power?
A: Yes. It is explicitly rated for generator compatibility and will not trigger false low-battery alarms from rougher generator waveforms or frequency variation, unlike some online UPS units designed solely for utility/mains input.
Q: How long does battery recharge after a power outage?
A: 4 hours to reach 90% capacity from a fully depleted state. Partial discharge cycles (common in brief outages) recharge faster — typically 2–3 hours from 50% depletion back to full.
Q: What's the difference between ECO mode and online mode?
A: ECO mode (>95% efficiency) bypasses the inverter and runs input power directly to outputs, reducing heat and electrical loss. Online mode (double-conversion) continuously conditions power through the inverter. ECO mode is transparent during normal utility voltage; the UPS automatically switches to online mode if voltage sags or surges beyond tolerance.
Q: Can I integrate the OL3000RTXL2U with my VMS for alerts?
A: Yes, via SNMP network card and PowerPanel Business Edition software. If your VMS supports SNMP traps, power-loss and battery-status events can be logged and trigger visual/audible alarms in the VMS interface.
I've fielded a lot of UPS questions from surveillance integrators, and the OL3000RTXL2U sits at a useful sweet spot: it's a true double-conversion online unit (not line-interactive, not standby) rated for 3000VA / 2700W, which covers most compact surveillance clusters — 4–6 cameras, a PoE switch, and an NVR without breaking the bank. The zero-transfer-time guarantee on the model number OL3000RTXL2U means your NVR never sees a glitch during utility fault, which is the opposite of what happens when you use a cheap standby UPS and the NVR watchdog triggers a reboot mid-recording.
Technical Highlights:
- Double-Conversion Online Topology, 0 ms Transfer Time: The unit always runs on battery and inverter, converting AC to DC and back continuously. Utility sag, surge, or dropout never reaches your equipment — no risk of NVR frame loss, no PoE switch brownout, no network hiccup during the transfer. In contrast, line-interactive UPS has 2–4 ms transfer time; some budget standby units have 10+ ms.
- Hot-Swappable Battery Modules (6x 12V/9Ah, Recharge 0–90% in 4 Hours): On 24/7 surveillance rigs, battery aging is real. The ability to slide the battery module out and swap a new one without killing power to cameras or pulling your NVR backup means you can schedule maintenance during slow hours, not during an emergency. Four-hour recharge from fully depleted is brisk enough that an overnight charging window restores you to full capacity for the next day.
- Extended Battery Module Support (Up to 10 EBMs): If your site has spotty utility (frequent brownouts, wind-heavy rural location), you can stack external modules and stretch runtime from 4 minutes to 40+ minutes full-load. Gives you cushion to ride out a rough storm or wait for a generator to spin up, instead of forcing graceful shutdown within 4 minutes.
- Generator-Compatible Design: Many online UPS units are finicky with generator output — rough AC waveform, frequency drift. The OL3000RTXL2U is spec'd for it. If you're on a site with a backup genset, this UPS won't false-trigger low-battery shutdown from perceived instability.
- PowerPanel Business Edition SNMP + Relay Control: Network card sends SNMP traps to your NOC or directly to a VMS that understands UPS events. Relay closure on low-battery can trigger an SMS alert, pulse a horn, or close a door relay. This is how you get visibility into power status from the office instead of finding out about an outage when the customer calls you two hours later.
Deployment Considerations:
- Runtime is modest at full load (4 min): If you have a large NVR cluster (8+ cameras running HD or 4K simultaneously), or if you've loaded the PDU with additional rack equipment, you will hit that 4-minute runtime ceiling fast. Either plan on external battery modules up front, or confirm your actual load is 50% or less (12.5 min runtime at half-load is more realistic for most installations).
- Sealed lead-acid battery life degrades with heat: At comfortable 68°F, expect 5–6 years before capacity drops. At 95°F+ (summer closets without active cooling), expect 3–4 years. If your network closet runs hot, budget for battery replacement every 3–4 years, not 5.
- 2U rack depth (23.62") is substantial: Ensure your rack has sufficient depth. Some shallow wall-mount racks won't fit it. Tower configuration is an alternative if rack space is tight, but tower placement means manual reboot if someone trips over the power cord.
The OL3000RTXL2U is the right choice for a surveillance site where you need rock-solid power conditioning 24/7 and have the ability to monitor and manage the unit remotely. It's overkill for a single IP camera on a residential connection, but spot-on for a retail chain with 4–6 locations, each running a compact NVR + network setup, or a warehouse cross-dock where power stability directly impacts barcode scanning and access-control uptime.
