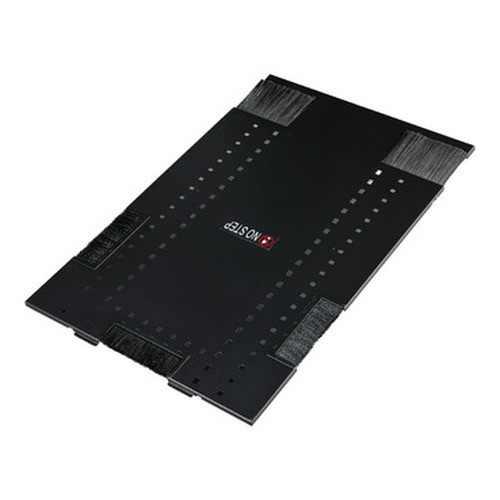

APC by Schneider Electric AR7201A NetShelter SX 600mm x 1070mm Deep Panel
Overview
The AR7201A is a panel component designed for APC NetShelter SX rack enclosures in the 600mm wide by 1070mm deep form factor. At 8.02 lb (3.64 kg) and finished in black, it matches the NetShelter SX cabinet family's standard aesthetic and structural profile. The 0.63 in (1.6 cm) profile dimension keeps the assembly tight without consuming meaningful floor footprint — relevant in high-density data center rows where every centimeter counts.
Mounting mode is listed as non-rack-mountable, which is consistent with a side, top, or structural panel that attaches to the cabinet frame rather than occupying rack unit space. This makes it a drop-in fit for NetShelter SX enclosures already deployed in the field — no tools or rail adjustments needed beyond the cabinet's existing mounting points.
Key Features
- Cabinet Family Fit: Sized for the NetShelter SX 600mm wide × 1070mm deep footprint — the most widely deployed APC cabinet depth in enterprise and co-location environments, so sourcing a replacement or expansion panel for an existing deployment is straightforward.
- 8.02 lb Fabricated Weight: Substantial enough to indicate steel or reinforced construction rather than thin plastic — relevant if airflow management or physical security of the enclosure is a consideration.
- Black Finish: Matches the standard NetShelter SX colorway, maintaining visual consistency across multi-cabinet rows without repainting or aesthetic workarounds.
- 0.63 in Profile: Minimal depth addition to the enclosure assembly; consistent with a flush panel design that doesn't interfere with adjacent equipment or cable management.
Frequently Asked Questions
Q: What cabinet is the AR7201A compatible with?
A: The AR7201A is sized for APC NetShelter SX enclosures in the 600mm wide by 1070mm deep configuration. Verify your cabinet dimensions before ordering.
Q: Is the AR7201A rack-mountable?
A: No. The AR7201A is listed as non-rack-mountable — it attaches to the cabinet frame and does not occupy rack unit (U) space.
Q: What does the AR7201A weigh?
A: 8.02 lb (3.64 kg).
Q: What color is the AR7201A?
A: Black, consistent with the standard APC NetShelter SX cabinet finish.
The AR7201A is a structural panel component for the NetShelter SX 600mm × 1070mm cabinet family. At 8.02 lb, the fabricated weight points to steel construction — not a lightweight plastic filler — which matters if you're relying on this panel for enclosure rigidity or airflow containment in a hot-aisle/cold-aisle setup.
Technical Highlights:
- Non-rack-mountable design: Attaches directly to the cabinet frame rather than consuming U space — keeps your rack unit inventory clean on high-density deployments.
- 600mm × 1070mm sizing: Matches the NetShelter SX deep cabinet footprint standard — the dominant depth spec in enterprise deployments running 1U/2U servers with rear cabling clearance.
- 0.63 in profile: Flush panel geometry that won't extend past the cabinet edge — important in tight row configurations with minimal aisle clearance.
Deployment Considerations:
- Confirm the exact NetShelter SX model number before ordering — APC produces panel variants across multiple cabinet widths (600mm, 750mm) and depths (1070mm, 1200mm); the AR7201A is specific to the 600×1070 configuration.
- Available spec data for this SKU is limited; consult the APC NetShelter SX compatibility matrix or your SE representative to confirm fit for non-standard cabinet configurations.
Best suited for facilities teams expanding or replacing panels on existing NetShelter SX 600×1070mm deployments — particularly in co-location environments where cabinet integrity and airflow containment are actively managed.
