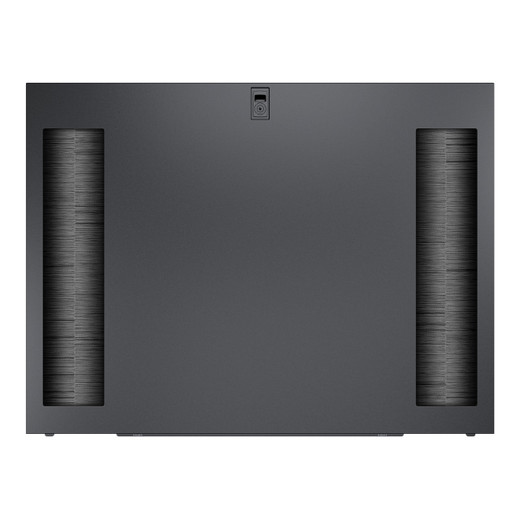

APC by Schneider Electric AR7314 NetShelter SX 48U Split Feed-Through Horizontal Cable Manager

Overview

The AR7314 is a horizontal split feed-through cable management trough engineered for APC NetShelter SX 48U rack enclosures. At 1097mm wide and designed to route structured cabling through the top or bottom of the cabinet without disrupting airflow management, this unit addresses one of the most common cable discipline problems in dense rack environments: keeping power and data runs separated, organized, and accessible without opening the enclosure itself. If your rack infrastructure relies on NetShelter SX frames, the AR7314 is the matched cable management solution.

Key Features

• Split Feed-Through Design: The split construction allows cables to be routed and re-routed without threading from an end — a meaningful time-saver during moves, adds, and changes in high-density rows where pulling cable end-to-end is impractical.
• 1097mm Width: Matched to the full external width of NetShelter SX 48U enclosures, so the trough aligns cleanly across a row without overhang or gap. Mismatched width accessories create cable pinch points and complicate row-level cable containment.
• Black Finish: Consistent with NetShelter SX enclosure aesthetics — relevant when data center managers enforce visual uniformity across rows or when rack photography is used for asset documentation.
• 55.1 lb (25 kg) Unit Weight: At this weight, the AR7314 requires a two-person lift for overhead or elevated installation. Plan your install crew accordingly, especially for top-of-cabinet routing on fully populated 48U frames.

Integration and Compatibility

The AR7314 is designed for use with APC by Schneider Electric NetShelter SX 48U network rack enclosures. Verify your specific enclosure model against APC's compatibility documentation before ordering — NetShelter SX frames share common external widths, but mounting hardware and feed-through cutout positions vary across generations. If you are planning a full data center infrastructure buildout, consult your cable management layout before specifying quantity; a single row of 48U cabinets typically requires one trough per cabinet top and bottom for clean separation of power and data.

Frequently Asked Questions

Q: What rack enclosure is the AR7314 designed for?

A: The AR7314 is designed for APC NetShelter SX 48U rack enclosures. Verify compatibility with your specific enclosure model before ordering.

Q: What does 'split feed-through' mean on the AR7314?

A: The split design allows cables to be inserted into the trough from the side rather than threaded from an end, which simplifies cable adds and changes without full re-routing.

Q: How much does the AR7314 weigh?

A: The AR7314 weighs 25 kg (55.1 lbs), so a two-person install is recommended, particularly for elevated or overhead mounting positions.

Q: What color is the AR7314?

A: Black, consistent with the standard APC NetShelter SX enclosure finish.

Karl Wilson

The AR7314 solves a specific problem: getting structured cabling in and out of a NetShelter SX 48U cabinet cleanly, without the kind of cable spaghetti that makes future maintenance a hazard. At 1097mm, it's dimensionally matched to the enclosure — that's not a minor detail when you're aligning a full row of cabinets and need troughs to sit flush without gaps or overhang that trap cable bundles.

Technical Highlights:

• Split Construction: Allows mid-run cable insertion — critical in live environments where you can't afford to re-route an entire bundle to add a single run.
• 1097mm Matched Width: Aligns with NetShelter SX 48U external frame dimensions, ensuring clean row-level cable containment without custom fabrication or adapter hardware.
• 25 kg (55.1 lbs): Heavier than it looks — factor this into your install plan, especially if the cabinet row requires overhead positioning during build-out.

Deployment Considerations:

• Confirm mounting hardware compatibility with your specific NetShelter SX generation before ordering — APC has updated mounting points across enclosure revisions and the AR7314 may require generation-specific brackets.
• At 55.1 lbs, this is a two-person lift minimum for any installation above waist height — underestimating this on a raised-floor data center build is a common install-day problem.

Best fit: structured cabling discipline in a multi-cabinet NetShelter SX 48U row where MAC activity is frequent enough to justify split-entry cable management over a fixed trough.
