APC by Schneider Electric AR7502 Cable Management Panel

Overview

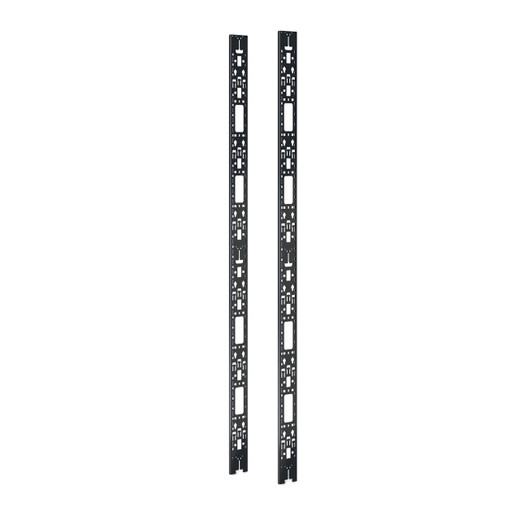

The APC by Schneider Electric AR7502 is a 42U vertical PDU mount and cable organizer designed to manage power distribution units and network cabling within standard server racks. Its black, slim profile minimizes rack space intrusion while providing essential organization for high-density deployments, preventing cable strain and improving airflow. This accessory is crucial for maintaining a clean and efficient rack infrastructure, particularly in environments where space and thermal management are critical.

Compatibility

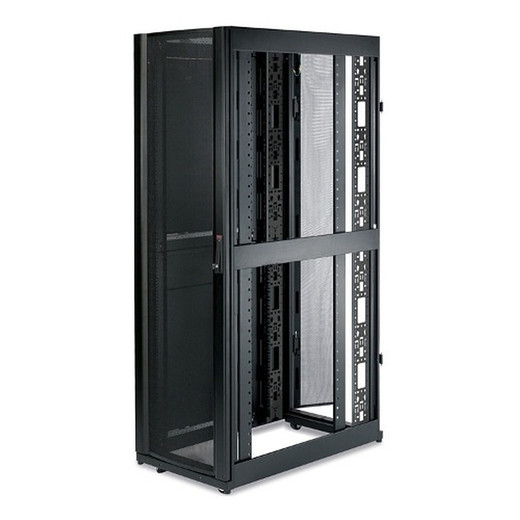

This cable management panel is designed for use with standard 19-inch wide server racks and is specifically rated for 42U vertical rack heights. It is compatible with APC's NetShelter SX enclosures and other rack systems that accommodate 42U vertical mounting. The design allows for the mounting of PDUs and routing of associated cables.

Installation Notes

Installation involves securing the unit vertically within the server rack using the included mounting kit. The panel's 117 mm width and 13 mm depth are designed for minimal protrusion, ensuring it does not interfere with other rack-mounted equipment. The 1930 mm height aligns with 42U rack standards. Ensure adequate clearance for PDU installation and cable bending radii.
