APC by Schneider Electric Netshelter SX 42U 750MM Wide X 1200MM Deep Enclosure Without - AR3350X609

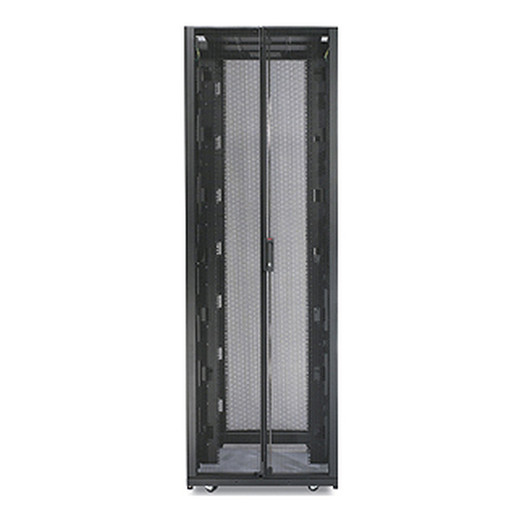

APC by Schneider Electric AR3350X609 42U NetShelter SX Server Rack Enclosure

Overview

The APC by Schneider Electric AR3350X609 is a 42U, 750mm-wide by 1200mm-deep free-standing rack enclosure from the NetShelter SX line — a platform purpose-built for network equipment rooms, server closets, and security head-end rooms where cable density, structured airflow, and 19-inch rail compatibility are non-negotiable. With a steel frame finished in black, 19-inch square-punched mounting rails, and a design that channels airflow front-to-rear, this enclosure is the right structural foundation when you're housing network switches, NVRs, patch panels, and UPS units together in a single rack.

At 42U, the AR3350X609 gives you enough vertical real estate to run a dense, fully-loaded security or IT head-end without stacking a second rack — important when floor space is limited and every rack unit matters for cable management and heat separation.

Key Features

• 42U Vertical Capacity: Forty-two rack units of usable space means you can house an NVR stack, PoE switches, patch panels, and a UPS in a single enclosure — no second rack, no second set of inter-rack cable runs to manage. If you're sizing a physical security head-end, 42U is typically the minimum once you account for cable management panels between active equipment.
• 750mm Interior Width: The extra 50mm versus a standard 600mm rack is not cosmetic — it provides meaningful clearance for side-by-side cable management arms on servers and dense switch installations. Blanks and accessories designed for 750mm frames seat properly without forcing 600mm accessories to float.
• 1200mm Depth: At 1200mm, the enclosure accommodates full-depth servers, large UPS chassis, and deep NVR appliances without the rear door pressing cables against equipment. This depth is also important for cabling: structured cabling has room to break out properly at both the front and rear without sharp bends that compromise conductors.
• 19-Inch Square-Punched Rails: Square-punch rail is the universal mounting standard for rackmount equipment. Cage nuts seat in a single motion, equipment aligns without coaxing, and you can pull and re-rack gear quickly during maintenance windows. No round-hole adapters, no thread chasing.
• Front-to-Rear Airflow Architecture: The enclosure is designed to support front-to-rear (cold-aisle/hot-aisle) airflow — the standard for data center and telecom room layouts. Aligning the enclosure with your room's cold-aisle intake means equipment exhausts into the hot aisle rather than recirculating heated air back into intake fans, which directly extends equipment life on heat-sensitive active components.
• Free-Standing Design: No wall anchoring required for initial deployment. The free-standing footprint allows repositioning during build-out without structural modifications — practical in phased construction environments and retrofit security rooms where wall penetrations are restricted.
• Steel Construction, Black Finish: Steel framing provides the structural rigidity needed to support high-density server and switch loads across all 42U without frame flex, which can cause misalignment of equipment mounting ears at lower rack positions. The black powder-coat finish is standard for equipment room aesthetics.

Integration & Compatibility

The AR3350X609 is designed for integration within the broader APC by Schneider Electric ecosystem. The NetShelter SX platform is compatible with APC's line of blanking panels, cable management accessories, overhead cable management systems, and power distribution units — meaning you can build out a complete, organized rack without sourcing third-party fillers or mismatched PDUs. Standard 19-inch equipment from any manufacturer mounts to the square-punched rails using industry-standard cage nuts.

For security integrators building out a physical security head-end, this enclosure is sized to house network video recorders, managed PoE switches, access control servers, and associated patch infrastructure. The 1200mm depth accommodates tower-form appliances in rackmount sleds as well as purpose-built 1U/2U recorders without modification.

When planning power distribution inside the rack, pair this enclosure with a compatible rack PDU rated to the load of your installed equipment. APC's vertical and horizontal PDUs mount natively to the NetShelter SX frame without adapters. For thermal management in dense deployments, review your room's cooling capacity against the aggregate heat load before finalizing rack density — front-to-rear airflow in the enclosure supports the thermal strategy but does not substitute for adequate room-level cooling.

Consult a rack enclosure selection guide if you are evaluating width or depth variants — APC offers NetShelter SX configurations in narrower widths and shallower depths for environments where floor space constrains the 750x1200mm footprint.

Frequently Asked Questions

Q: What is the rack unit capacity of the AR3350X609?

A: The AR3350X609 provides 42U of usable rack space, which is the full-height standard for enterprise rack enclosures.

Q: What rail style does the AR3350X609 use?

A: The AR3350X609 uses 19-inch square-punched rails, compatible with standard cage nuts and the vast majority of rackmount IT and security equipment.

Q: Is the AR3350X609 free-standing or does it require wall mounting?

A: It is a free-standing enclosure. No wall anchoring is required for standard deployment, though floor anchoring is recommended in seismic zones or high-traffic areas.

Q: What are the interior dimensions of the AR3350X609?

A: The enclosure is 750mm wide and 1200mm deep. Overall height falls in the greater-than-6-foot to 7-foot range for a 42U frame.

Q: What airflow direction does the AR3350X609 support?

A: The NetShelter SX AR3350X609 is designed for front-to-rear airflow, aligning with cold-aisle/hot-aisle data center and equipment room layouts.

Q: Can I use third-party rack accessories with the AR3350X609?

A: Yes. The 19-inch square-punched rail standard is universal — any rackmount equipment or accessory using standard cage nuts will mount correctly. APC-branded accessories are designed for native fit within the NetShelter SX platform.

Marty Allison

When I spec a physical security head-end, the rack enclosure is the decision I least want to revisit mid-project — and the AR3350X609's 1200mm depth is the spec I reach for first. Most security integrators underestimate depth: a single 2U NVR with rear cable arms plus a full-depth managed switch will consume more than 900mm before you account for cable egress, and at 1,200mm the AR3350X609 gives you that margin without forcing cable bends that cause intermittent failures six months after commissioning.

Technical Highlights:

• 750mm Width vs. 600mm Standard: The extra 50mm of interior width is the difference between clean cable management arm clearance and a situation where you're fighting arm interference every time you need to pull a switch for firmware. Dense security head-ends with four or more managed switches benefit directly from this.
• 42U Capacity with Front-to-Rear Airflow: Forty-two units aligned front-to-rear means you can plan your cold-aisle intake properly and not fight recirculated hot air at your NVR intake fans — a real failure mode in security closets that were retrofitted from general storage with inadequate room cooling.
• Square-Punch 19-Inch Rails: Every piece of security rack gear — NVRs, PoE switches, patch panels, KVM drawers — mounts to square-punch without adapters. In a service call at 2 AM you do not want to discover your rack uses a non-standard rail when you need to swap a failed unit quickly.

Deployment Considerations:

• The 1200mm footprint requires verifiable floor clearance in the equipment room — confirm door swing and aisle clearance before delivery, particularly in retrofit security rooms where the footprint may be tighter than a greenfield data center build.
• The AR3350X609 is the enclosure only — no PDU, no blanking panels, and no cable management accessories are included. Budget for these separately; an unmanaged cable plant in a 42U rack becomes a maintenance liability within 12 months.

This enclosure is the right call for a physical security operations center or enterprise network head-end where you're consolidating NVRs, managed PoE switching, access control servers, and UPS infrastructure into a single structured rack — the depth and width give you the actual room to do it cleanly, not just technically.
