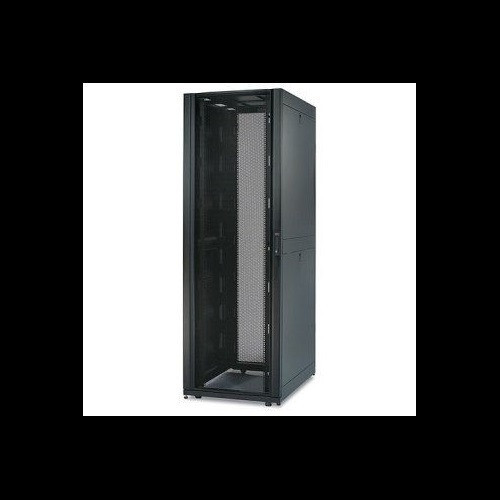

APC by Schneider Electric AR3150SP1 42U Rack Enclosure with Shock Packaging
Overview
The APC by Schneider Electric AR3150SP1 is a 42U NetShelter SX rack enclosure measuring 750mm wide by 1070mm deep, shipped in APC's purpose-built shock packaging configuration. Designed for data centers, server rooms, and network infrastructure deployments where equipment integrity during transit is as critical as it is in operation, the AR3150SP1 addresses one of the most common but overlooked failure points in rack deployments: damage incurred before the equipment ever powers on.
At 42U of usable vertical space, this enclosure accommodates full-height server, storage, and networking stacks without compromise. The 750mm width provides the clearance needed for today's cable-dense, hot-swap-heavy environments, while the 1070mm depth accommodates deep 2U and 4U servers, large UPS units, and patch-panel-plus-switch combinations in the same rack without front-door interference.
This is the shock-packaged variant of the NetShelter SX 42U 750x1070mm family — the primary reason to specify it over the standard AR3150 is when the enclosure must survive freight forwarding, third-party logistics, or multi-leg international shipment before final installation. If your enclosure is being drop-shipped to a remote site, staged at a warehouse, or delivered via common carrier rather than a white-glove rollout team, the shock packaging is worth factoring into the procurement decision.
Key Features
- 42U Rack Height: Provides full data-center-standard vertical capacity — enough headroom to populate an entire compute, storage, and top-of-rack switching stack without splitting across two enclosures, which reduces cross-rack cabling and simplifies power distribution runs.
- 750mm Interior Width: Wider than the 600mm standard, this dimension matters when you're running high-density patch panels, structured cabling trays, or side-by-side vertical PDUs — you get real cable management clearance rather than having to force-route bundles behind equipment.
- 1070mm Interior Depth: Accommodates deep storage arrays and large-form-factor servers (think 900mm+ chassis) with front-door clearance intact. Pairing a deep chassis with a shallow rack is a common mis-spec that forces doors to be removed permanently — this enclosure avoids that entirely.
- 1,250 lb Weight Capacity: At 1,250 lbs static load rating, this enclosure can handle a fully populated high-density deployment — dense blade chassis, multiple UPS modules, storage arrays — without structural concerns. Verify your raised-floor or concrete slab rating independently before populating to this limit.
- Shock Packaging (SP1 Variant): The AR3150SP1 designation indicates this unit ships in APC's shock-rated packaging, engineered to protect the enclosure frame and any pre-installed accessories from impact and vibration damage during freight. For remote deployments or multi-stop logistics chains, this eliminates the cost and delay of field repairs to bent frame rails or damaged door hardware.
- NetShelter SX Platform: As part of APC's NetShelter SX line, this enclosure is designed to integrate with APC's broader APC by Schneider Electric ecosystem — including APC PDUs, blanking panels, cable managers, and airflow containment accessories — so you're not sourcing rack accessories from disconnected vendors.
Integration & Compatibility
The AR3150SP1 follows standard EIA-310 19-inch rack mounting specifications, making it compatible with virtually all rackmount equipment from server, networking, storage, and network infrastructure vendors. The 750mm width and 1070mm depth are matched to APC's full catalog of rack PDUs, cable management arms, and airflow containment panels — horizontal and vertical PDU options mount cleanly without bracket adapters.
For physical security applications, this enclosure is a practical housing choice for NVR appliances, network video servers, PoE switch stacks, and access control head-end equipment where a lockable, structured enclosure is preferred over open-frame racks. Integrators deploying centralized network video recorders or switching infrastructure in dedicated IDF/MDF rooms will find the depth and load rating appropriate for mixed compute and security hardware stacks.
Note that the AR3150SP1 carries a RoHS Non-Compliant designation — this is relevant for deployments in jurisdictions with RoHS enforcement requirements (notably EU member states). Verify compliance requirements for your installation region before specifying this unit in a government or public-sector bid. For projects requiring RoHS-compliant rack enclosures, consult the NetShelter SX product family for compliant variants. See the rack enclosures category for additional options.
For deployments where power distribution and cable organization are being planned in parallel, pairing this enclosure with appropriately rated rack PDUs from the same NetShelter ecosystem simplifies mounting and cable routing.
Frequently Asked Questions
Q: What does the 'SP1' suffix on the AR3150SP1 mean?
A: SP1 designates the shock packaging variant. The enclosure ships in APC's purpose-built shock-rated packaging designed to protect the unit during freight — particularly useful for multi-leg shipments, remote site deliveries, or common-carrier logistics where handling cannot be controlled.
Q: What is the weight capacity of the AR3150SP1?
A: The AR3150SP1 is rated for a static load capacity of 1,250 lbs. This accommodates fully populated high-density configurations including blade chassis, storage arrays, and UPS equipment. Verify that your floor or mounting surface can support both the enclosure weight and its full load before deployment.
Q: Is the AR3150SP1 RoHS compliant?
A: No. The AR3150SP1 is designated RoHS Non-Compliant. For deployments in EU member states or other jurisdictions that enforce RoHS requirements, this is a disqualifying factor — check the NetShelter SX family for compliant alternatives before specifying this unit in a restricted-jurisdiction bid.
Q: What is the warranty on the AR3150SP1?
A: The AR3150SP1 carries a 1-year manufacturer warranty.
Q: Will standard 19-inch rackmount equipment fit the AR3150SP1?
A: Yes. The AR3150SP1 follows the EIA-310 19-inch rack mounting standard, so it is compatible with standard rackmount servers, switches, NVRs, storage arrays, and PDUs. The 750mm width and 1070mm depth provide additional clearance beyond minimum-spec enclosures, which is useful for deep chassis and dense cabling environments.
Q: Can the AR3150SP1 be used for physical security infrastructure deployments?
A: Yes. The enclosure is suitable for housing rackmount NVR appliances, PoE switch stacks, access control head-end equipment, and network video servers. Its 42U height and 1,250 lb load rating accommodate mixed compute and security hardware stacks in IDF/MDF environments.
The AR3150SP1 is a spec I reach for specifically when a project involves freight risk — remote data center builds, multi-stop logistics, or international staging. The shock packaging designation isn't cosmetic: APC engineers the SP1 packaging to absorb the kind of impact loads you get from common-carrier palletized freight, which is the actual delivery reality on most large infrastructure projects. The 1,250 lb static load rating and 1070mm depth are the other two numbers that matter most when I'm sizing this against a project BOM.
Technical Highlights:
- 1,250 lb Load Rating: Sufficient for a fully populated high-density stack — dual blade chassis, multiple UPS modules, top-of-rack switching — without structural risk. That said, this is a static rating; dynamic load during seismic events or rolling on casters is a separate calculation.
- 1070mm Depth: The depth that eliminates the 'door-removal' problem. Deep storage arrays and 900mm+ server chassis fit with front clearance maintained, which matters for airflow and cable access during live maintenance.
- Shock Packaging (SP1): Ships in purpose-built APC shock-rated packaging — not just extra foam. This is the deciding spec when freight handling is outside your control, and it's the primary differentiator between the AR3150SP1 and the standard-packaged variant.
Deployment Considerations:
- The RoHS Non-Compliant designation is a hard stop for EU public-sector and government bids — flag this in your pre-sales review before it surfaces during compliance verification late in the project cycle.
- The 1-year manufacturer warranty is shorter than you'll find on some competing enclosure families — factor this into long-lifecycle data center procurement where extended coverage is a contract requirement.
Best fit for a regional distribution center or multi-tenant data hall buildout where the enclosures are being drop-shipped to site via third-party freight and the integrator won't be present for delivery acceptance — that's exactly the scenario the AR3150SP1's shock packaging is engineered for.
