APC by Schneider Electric AR3100X609 42U Freestanding Server Rack Enclosure
Overview

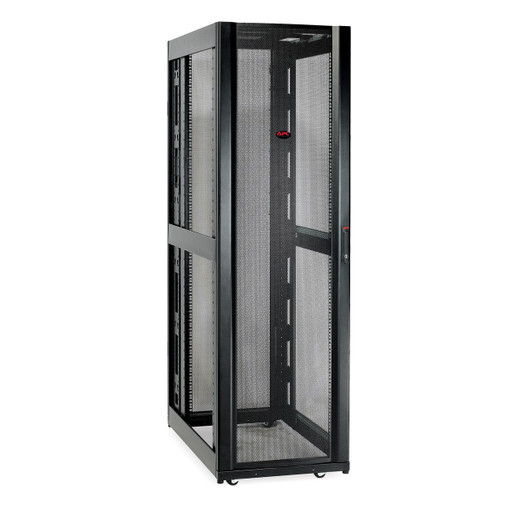

The AR3100X609 is APC by Schneider Electric's 42U NetShelter SX rack enclosure in a 600mm-wide by 900mm-deep footprint — the standard mid-depth configuration for environments where front-access cabling and hot-aisle/cold-aisle containment both matter. At 2,000mm tall (78.7 inches), it gives you a full 42 rack units for servers, switching, patching, and storage without reaching for additional vertical cabinets. The welded steel frame handles static loads up to 1,361 kg (3,000 lbs), which means a fully populated blade chassis or dense 1U server stack will not strain the structure. If you're sourcing APC by Schneider Electric data center infrastructure, this enclosure sits at the center of that ecosystem.
Key Features
- 42U capacity in a standard 600mm-wide footprint: 42U gives you enough vertical space to host a full compute stack — hypervisor hosts, top-of-rack switching, patch panels, and a KVM — without needing adjacent cabinets or overhead trays. The 600mm width fits standard 19-inch EIA-310 equipment and is the most common column width in structured server rack and enclosure deployments, so future equipment additions won't force a cabinet change.
- 1,361 kg static load rating: That's 3,000 lbs of rated capacity — sufficient for even dense blade environments where individual chassis can hit 200+ lbs fully populated. Most mid-market enclosures rate between 500–800 kg; the SX's welded steel frame doubles that, giving you real headroom on mixed-density deployments without monitoring rack weight per slot.
- 900mm depth with perforated front and rear doors: The 900mm internal depth accommodates deep 1U servers (Dell PowerEdge, HPE ProLiant, Supermicro) without the rear door interfering with cable runs. Perforated front and rear panels maintain natural airflow paths — critical in high-wattage deployments where hot spots inside sealed enclosures cause throttling and premature failure. If you're planning a data center cooling layout, perforated doors are the minimum requirement before adding in-row or in-rack cooling units.
- Welded steel construction: Unlike bolted or snap-fit frames that flex under uneven loads, the welded steel structure maintains square geometry as you add rail sets, cable managers, and mounting brackets. This matters in colocation environments where the cabinet gets moved with equipment installed, or wherever seismic bracing is a requirement.
- Standard 19-inch EIA-310 mounting rails: Every standard 1U, 2U, or larger rack-mount device fits without adapters. Adjustable mounting rails let you position equipment at the correct depth to align cable connections with integrated cable management channels — reducing the cable pull that leads to intermittent SFP and power connector failures over time.
- Lockable perforated doors: Lockable front and rear doors restrict physical access to installed equipment — baseline requirement in shared machine rooms, colocation cages, and any environment subject to SOC 2, HIPAA, or PCI-DSS physical security controls. Perforated construction means you don't trade security for airflow.
- Integrated cable management routing: Built-in vertical and horizontal cable routing channels keep power and data runs organized inside the cabinet. Separation between power and data reduces EMI-induced errors on copper Ethernet links and makes maintenance faster — you can swap a failed drive or NIC without disturbing adjacent cable bundles.
- RoHS-compliant construction: The enclosure meets RoHS environmental compliance standards, which matters for enterprise procurement teams with WEEE/green procurement mandates and for equipment destined for EU facilities.
Integration and Compatibility
The AR3100X609 is designed around the standard 19-inch EIA-310 form factor, making it compatible with virtually all rack-mount IT equipment from any manufacturer. APC's NetShelter SX line is designed to accept APC's own accessory ecosystem — blanking panels, PDU mounting brackets, horizontal and vertical cable managers, and side panels — so you can build out the cabinet incrementally as density grows. The enclosure pairs naturally with APC UPS and power distribution units that mount in the same frame without custom brackets. For deployments requiring hot-aisle containment, the enclosure accepts APC containment door kits on the front and rear, enabling row-level thermal management without replacing the cabinet. The 600mm width and 900mm depth are the dimensions most commonly specified in standard data center floor plans, so this enclosure fits pre-planned floor tiles and cable tray runs without modification.
Frequently Asked Questions
Q: What is the static load capacity of the AR3100X609?
A: The AR3100X609 is rated for a static load of up to 1,361 kg (3,000 lbs), making it suitable for dense server and blade chassis deployments.
Q: What are the exact dimensions of the AR3100X609?
A: The enclosure is 2,000mm tall (78.7 in), 600mm wide (23.6 in), and 900mm deep (35.4 in). It provides 42U of usable rack space.
Q: Is the AR3100X609 compatible with standard 19-inch rack-mount equipment?
A: Yes. The AR3100X609 uses standard 19-inch EIA-310 compliant mounting rails, so it accepts virtually all standard rack-mount servers, switches, patch panels, and storage equipment without adapters.
Q: Does the AR3100X609 include perforated doors for airflow?
A: Yes. Both the front and rear doors are perforated to support natural convective airflow and compatibility with in-row or in-rack cooling systems.
Q: What is the warranty on the AR3100X609?
A: The AR3100X609 carries a 5-year manufacturer warranty.
Q: Is the AR3100X609 RoHS compliant?
A: Yes, the AR3100X609 is RoHS certified, meeting environmental compliance requirements for enterprise and EU-bound deployments.
The AR3100X609 is one of the enclosures I recommend most often when a customer is standing up a new compute row and doesn't want to revisit cabinet selection in 18 months. The 1,361 kg static load rating is the number that earns it: most of the competition in this size class rates at 700–900 kg, and that ceiling becomes a real constraint once you start mixing blade chassis with high-density storage nodes in the same cabinet.
Technical Highlights:
- 42U / 600mm x 900mm footprint: This is the industry-standard column dimension — it tiles cleanly on 600mm floor grid systems, fits under standard 2,400mm raised floors with cable tray clearance, and accepts APC's full lineup of blanking panels and PDU brackets without custom adapters.
- Welded steel frame vs. bolted alternatives: In environments where cabinets are moved fully loaded (colocation cage relocations, disaster recovery swaps), welded frames hold square under dynamic load. Bolted frames can rack slightly out of square over time, which causes rail bind on sliding servers — a minor annoyance that turns into a maintenance headache at scale.
- Perforated front and rear doors: Perforation percentage on the SX doors supports high-velocity airflow from front-to-rear cooling architectures. This is the minimum door spec before deploying hot-aisle containment kits — solid doors with a dense compute load will drive inlet temperatures above ASHRAE A2 thresholds within a few weeks.
Deployment Considerations:
- The 900mm depth fits most 1U and 2U servers flush, but verify cable management clearance with your specific PDU bracket configuration — rear-mounted vertical PDUs can reduce usable depth by 50–75mm on the rear rail set.
- At 204 lbs empty, this cabinet requires two people and a pallet jack for initial positioning — plan floor logistics before scheduling delivery to a raised-floor room with limited staging space.
This enclosure is the right call for a 10–20 cabinet enterprise data center row, a colocation cage buildout where load and dimensional predictability matter from day one, or any healthcare or financial services IT room where physical security compliance (lockable doors, RoHS materials) is part of the procurement checklist — not an afterthought.
