APC by Schneider Electric Netshelter SX 24U 600MM Wide X 1070MM Deep Enclosure - 1250 - AR3104SP1

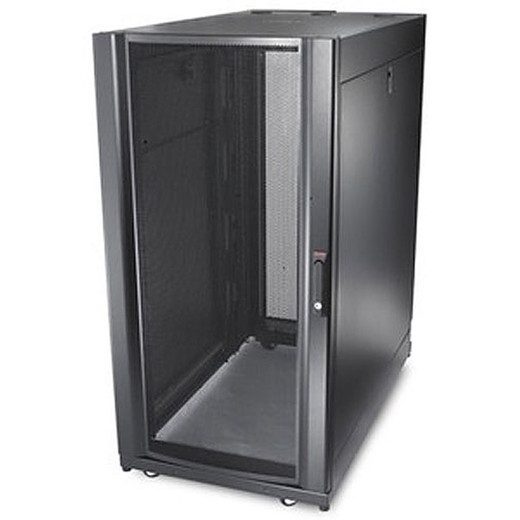

APC by Schneider Electric AR3104SP1 NetShelter SX 24U Rack Enclosure with Shock Packaging

Overview

The AR3104SP1 is APC's NetShelter SX 24U rack enclosure in shock packaging — the same 600mm wide by 1070mm deep steel cabinet used in server rooms and network closets, shipped with reinforced packaging rated for freight handling up to 1,250 lbs. If you're receiving equipment at a remote site or a warehouse where standard cartons routinely take hits, the shock-packaged variant matters: it reduces the risk of cosmetic and structural damage to the enclosure before it's even unboxed. The enclosure itself mounts standard 19" equipment per EIA-310E and meets UL 2416 and UL 60950-1 for IT equipment installations.

Key Features

• 24U Capacity: fits a full mix of 1U switches, 2U servers, and patch panels without running out of rack space in a mid-density deployment — 24U is the common sweet spot for IDF closets and edge compute nodes.
• 600mm Width / 1070mm Depth: the 1070mm depth accommodates most 2-post and 4-post server hardware with cable management room to spare; the 600mm width fits standard raised-floor tile footprints and tight wiring closets.
• Front-to-Rear Airflow: aligns with hot-aisle/cold-aisle data center layouts so your cooling infrastructure works with the enclosure rather than against it — critical when rack density climbs.
• Steel Construction: commercial-grade steel frame handles the 324 lb shipping weight and the cumulative load of fully populated rack gear without racking or flexing over time.
• 19" EIA-310E Mounting: industry-standard rail spacing means any rackmount hardware — switches, UPS units, KVMs, patch panels — drops straight in without adapters.
• UL 2416 / UL 60950-1 Certified: meets the safety standards required by most enterprise IT procurement policies and data center facility managers — reduces the compliance paperwork burden on installation teams.
• Shock Packaging (1,250 lb rating): the distinguishing spec of this SKU versus the standard AR3104. If the enclosure ships via LTL freight or gets staged in a distribution warehouse before final installation, this packaging is insurance against a forklift bump or a drop during unloading.
• Free-Standing Design: no wall anchoring required; positions anywhere on the floor and can be relocated without drilling — useful in leased spaces or temporary deployments.

Integration & Compatibility

The AR3104SP1 integrates with APC's power and UPS product line, including in-rack PDUs and UPS units sized for 24U deployments. Standard 19" rail spacing accepts equipment from any vendor. For structured cabling, standard patch panel and cable management accessories designed for 19" rack enclosures mount without modification. Review your network infrastructure rack load requirements against the enclosure's structural rating before populating fully — particularly if mounting high-density blade or storage hardware.

Frequently Asked Questions

Q: What is the difference between the AR3104SP1 and the standard AR3104?

A: The AR3104SP1 is the shock-packaged variant of the AR3104 NetShelter SX 24U enclosure. The enclosure itself is identical; the SP1 designation indicates reinforced shipping packaging rated for 1,250 lbs, intended for freight shipments where rough handling is a concern.

Q: What rack unit capacity does the AR3104SP1 provide?

A: The AR3104SP1 provides 24U of usable rack space with standard 19" EIA-310E mounting rails.

Q: What standards does the AR3104SP1 meet?

A: The AR3104SP1 is listed to UL 2416 and UL 60950-1 and conforms to EIA-310E rack mounting standards.

Q: What is the shipping weight of the AR3104SP1?

A: The AR3104SP1 ships at approximately 324 lbs including shock packaging.

Q: Does the AR3104SP1 support hot-aisle/cold-aisle cooling layouts?

A: Yes. The enclosure is designed for front-to-rear airflow, which aligns with standard hot-aisle/cold-aisle data center cooling configurations.
