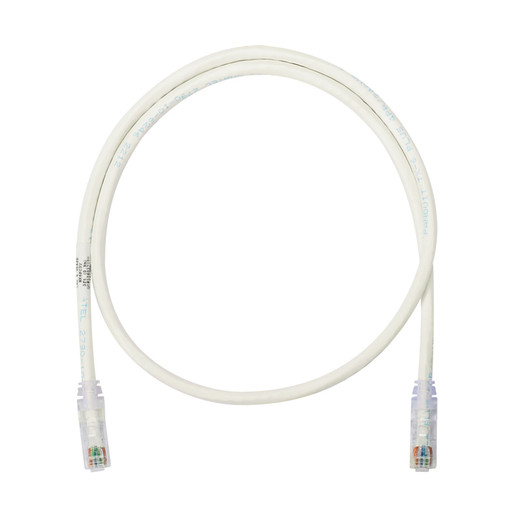

Panduit NK6APC5M NetKey Cat 6A 5m UTP Patch Cord

The Panduit NK6APC5M is a 5-meter Cat 6A UTP patch cord engineered for high-density data center and enterprise network deployments requiring 10GBASE-T performance and advanced PoE support. Built with 26 AWG stranded copper and Panduit's patented tangle-free latch, this patch cord delivers 500 MHz channel performance while simplifying installations in congested rack environments.

Key Features

• Cat 6A performance: supports 10GBASE-T, PoE++, and 10 Gb/s applications to 100 meters
• Patented tangle-free latch prevents snags during cable routing and extraction in high-density patch panels
• 26 AWG stranded construction provides superior flexibility for tight-radius routing in equipment racks
• Slender strain relief boot enables high port-count access without interference
• 100% factory tested for wiremap, NEXT, and return loss—every cord ships performance-verified
• Supports IEEE 802.3bt Type 3/4 PoE (60W/100W) for PTZ cameras and high-power IP devices

The NK6APC5M addresses the core challenge of modern structured cabling: maintaining 10 Gb/s performance in space-constrained installations. The 26 AWG stranded conductor design flexes repeatedly without conductor fatigue, critical for patch cords subjected to frequent reconnection during moves, adds, and changes. The Cat 6A specification extends usable bandwidth to 500 MHz—double that of Cat 6—eliminating alien crosstalk and ensuring margin for 10GBASE-T over the full 100-meter permanent link.

Panduit's tangle-free latch is a field-proven time saver. Traditional RJ45 boots snag on adjacent cables during extraction, forcing technicians to work blind or remove multiple cords to free a single connection. The tangle-free design incorporates a flush-profile release that clears neighboring boots and provides tactile feedback when the latch disengages. In a 48-port patch panel, this design cuts disconnect time by an estimated 30-40% compared to conventional boots.

The cord's slender boot profile measures 15% narrower than standard Cat 6A boots, enabling single-finger access in fully populated panels. This becomes critical in surveillance and access control installations where PoE switches and NVRs often occupy adjacent U-spaces with limited side clearance. The off-white jacket provides a neutral appearance suitable for both data center and office environments, and the CM/LSZH rating meets North American fire codes and European low-smoke requirements.

PoE++ (802.3bt Type 3/4) support makes the NK6APC5M a direct-fit solution for power-hungry IP cameras—PTZ units, multi-sensor models, and AI-equipped cameras that draw 45-90W. The 26 AWG conductor cross-section maintains DC loop resistance below PoE limits at the 5-meter length, ensuring full power delivery without voltage drop. The cord's U/UTP construction (unshielded twisted pair) is appropriate for typical commercial environments where external EMI is minimal; for industrial settings or runs near motor drives, consider Panduit's F/UTP (foiled) variant.

Every NK6APC5M ships with test results for wiremap, near-end crosstalk (NEXT), and return loss. This isn't a sample-based QA process—Panduit tests 100% of production, tagging each cord with a serialized report. For integrators building BICSI-compliant systems or pursuing LEED certification, this traceability simplifies documentation and reduces field testing overhead. The cord exceeds ANSI/TIA-568-C.2 Category 6A channel requirements and meets ISO 11801 Class EA—globally recognized standards ensuring interoperability with any compliant infrastructure.

The modular plugs use 50-microinch gold plating on contacts, a durability spec that supports 750+ insertion cycles without measurable degradation. This matters for patch cords in active environments—security operations centers, network closets, and AV control rooms—where ports get reconnected weekly or monthly. Lesser-quality plugs with 6-15 microinch plating oxidize after 200-300 cycles, causing intermittent link errors that masquerade as switch or NIC failures.

The NK6APC5M integrates into NetKey and third-party structured cabling systems without modification. It's wired to support both T568A and T568B pinouts, meaning it functions as a straight-through cable regardless of the jack wiring standard used in your infrastructure. This universality eliminates the crossover-versus-straight-through guesswork that still trips up field techs on legacy installations. The integral pair manager inside each plug maintains twist geometry to within 0.5 inch of the termination point, preserving the electrical balance that makes Cat 6A crosstalk rejection possible.

For surveillance system integrators, the NK6APC5M is a low-risk, high-reliability interconnect for camera-to-switch and switch-to-NVR links. The 5-meter length covers typical equipment rack and IDF distances without excess slack that invites cable management problems. Panduit's manufacturer warranty backs the cord when installed per guidelines, and the cULus listing (UL 1863) provides the safety certification required for commercial and institutional projects.
