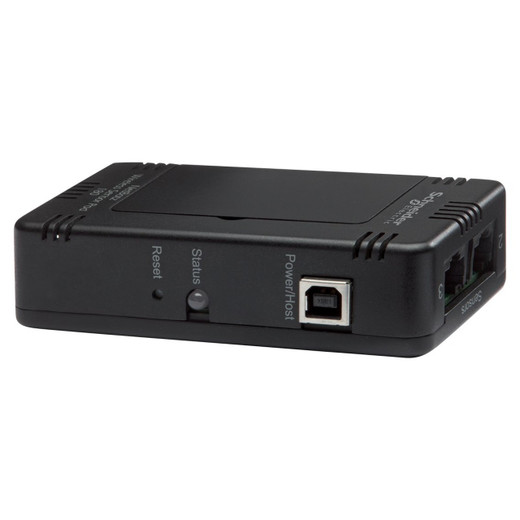

APC by Schneider Electric Netbotz Wireless Sensor POD 180 - NBPD0180

APC by Schneider Electric NBPD0180 NetBotz Wireless Sensor Pod 180

Overview

The NBPD0180 is APC by Schneider Electric's external environment monitoring pod designed for data centers, server rooms, and telecom closets where passive temperature and humidity awareness isn't enough. It extends the sensing reach of a NetBotz appliance by adding three external sensor ports — so you can place detection exactly where conditions matter most, rather than relying on a single point of measurement at the appliance itself. USB-powered operation means no separate power supply to wire in, simplifying installation in rack environments where power circuits are already congested. Explore the full APC by Schneider Electric catalog for compatible appliances and accessories.

Key Features

• 3 External Sensor Ports: Three dedicated wired sensor ports let you attach probes at precise locations — top-of-rack, under-floor, cold-aisle inlet — instead of averaging conditions across a room. This matters when a single hot spot can take down a critical load.
• USB Powered: Draws power directly from a NetBotz appliance USB port, eliminating the need for a local AC outlet or PoE tap. In fully-loaded racks with no spare power circuits, this is a practical advantage.
• Up to 113°F (45°C) Operating Range: Rated to operate in environments reaching 113°F — covering most active equipment rooms and intermediate distribution frames where ambient heat from gear can push well above room temperature.
• 0–95% Humidity Monitoring Range: Non-condensing humidity sensing across the full 0–95% range catches both dangerously dry static-risk conditions and high-humidity condensation risk before either causes equipment damage.
• External Form Factor: The pod's external, compact body is designed to mount or position independently of the host appliance — giving you flexibility to place sensing where airflow or thermal gradients actually occur, not just where the appliance happens to be installed.
• REACH Compliant: Meets EU REACH chemical compliance standards — relevant for deployments in regulated environments or for organizations with supply chain compliance requirements.
• 2-Year Manufacturer Warranty: Backed by a 2-year limited warranty, consistent with APC's commercial monitoring product line.

Integration and Compatibility

The NBPD0180 is designed to pair with APC NetBotz monitoring appliances that provide a host USB port and sensor pod support. It extends those appliances' native environment sensing without requiring additional network drops or power infrastructure. For deployments using network management and monitoring platforms, the host NetBotz appliance handles SNMP and alert integration — the pod itself is a sensing extension, not an independent network node. When planning a full data center infrastructure monitoring strategy, combining multiple pods across a row or room gives per-zone visibility that a single-appliance deployment cannot provide. Pair with compatible power management hardware to correlate environmental events with load changes.

Frequently Asked Questions

Q: What is the maximum operating temperature for the NBPD0180?

A: The NBPD0180 is rated for a maximum operating temperature of 113°F (45°C), covering most active equipment room environments.

Q: How is the NBPD0180 powered?

A: It is USB powered, drawing power directly from a compatible NetBotz host appliance — no separate AC outlet or power supply is required.

Q: How many sensor ports does the NBPD0180 have?

A: The NBPD0180 provides 3 external sensor ports for attaching wired environment probes.

Q: What is the warranty on the NBPD0180?

A: APC covers the NBPD0180 with a 2-year limited warranty.

Q: Is the NBPD0180 a standalone network device?

A: No. The NBPD0180 is an external sensor pod that extends a compatible NetBotz host appliance. It does not connect independently to a network.

Q: What compliance certifications does the NBPD0180 carry?

A: The NBPD0180 meets REACH compliance standards for chemical substance regulations.

Ted Perry

The NBPD0180 solves a specific problem I see repeatedly in mid-size data center deployments: a single NetBotz appliance mounted at the front of a cabinet gives you one temperature reading for an entire row. Three external sensor ports on this pod let you instrument top-of-rack, mid-rack, and floor-level simultaneously — the kind of granularity that actually catches a failing CRAC unit before it cascades. The USB power delivery means zero additional circuits to pull, which matters in older raised-floor rooms where every outlet is spoken for.

Technical Highlights:

• 3-Port Sensor Expansion: Adds three discrete probe attachment points to a single NetBotz host, enabling per-zone monitoring across a cabinet or row rather than single-point averaging.
• 113°F Max Operating Temperature: Rated to remain functional in ambient conditions up to 113°F — relevant when the pod itself is placed near exhaust air streams where temperatures regularly exceed 100°F.
• 0–95% Humidity Range: Full non-condensing humidity range catches both static-risk low-humidity and condensation-risk high-humidity conditions, covering the complete threat envelope for electronic equipment.

Deployment Considerations:

• The NBPD0180 requires a compatible NetBotz host appliance with an available USB port and sensor pod support — verify your appliance model supports external pods before ordering.
• With only 3 ports, large-row coverage requires multiple pods; plan pod quantity against probe placement requirements before committing to a layout.

This pod is a strong fit for colocation operators and enterprise IT teams instrumenting individual cabinets in high-density rows — particularly where a single appliance per aisle is the budget constraint but per-cabinet alerting is a compliance or SLA requirement.
