APC by Schneider Electric NBPD0175 Rack Access Control Pod

Overview

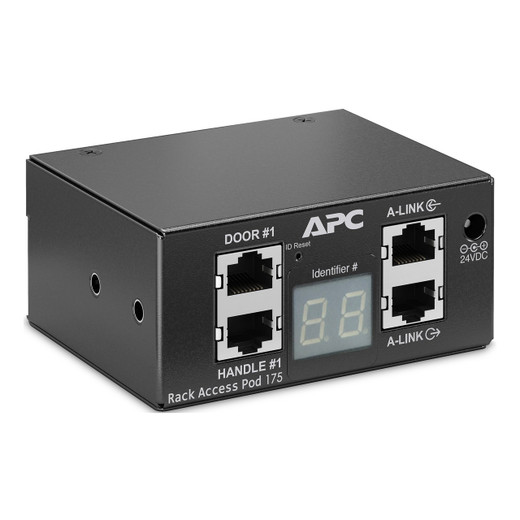

The NBPD0175 is APC by Schneider Electric's NetBotz Rack Access Pod 175 — a pod-only physical access control module designed for multi-enclosure data center environments where rack-level door monitoring and access logging need to scale across an entire row or room. Rather than relying on facility-level badge systems that stop at the data hall door, the NBPD0175 brings proximity-card authentication and door-contact sensing down to the individual cabinet. It pairs exclusively with the APC by Schneider Electric NetBotz 750 Rack Monitor Appliance or the NetBotz 755 Room Monitor Appliance, so if you're not running one of those appliances already, that's the starting point before this pod makes sense.

Key Features

• Dual-frequency card reader support (125kHz and 13.56 MHz): The NBPD0175 accepts handle kits in either HID-legacy 125kHz or modern 13.56 MHz (MIFARE/DESFire) formats. That matters in mixed-credential environments where your facilities team runs one card standard but your IT security policy is migrating to the higher-security 13.56 MHz standard — you can deploy pods on the newer format while the rest of the building catches up.
• Scales to 12 pods and 24 doors from a single appliance: One NetBotz 750 or 755 appliance can supervise up to 12 NBPD0175 pods, covering 24 individual cabinet doors. For a dense two-row colo or a modular data center hall with 20–24 racks, that's full coverage without adding a second appliance or a separate access control head-end.
• Door contact detection with surveillance trigger: Every door-open event fires an alert and can trigger surveillance recording on the NetBotz appliance. If a door is propped or forced, the event is timestamped and logged immediately — useful for audit trails in SOC 2 or ISO 27001 environments where evidence of unauthorized access must be retained.
• Per-card access scheduling: You can configure time windows for each registered proximity card, so a contractor's credential can be active only during a specific maintenance window without requiring manual revocation after hours. For co-location operators managing dozens of tenant access profiles, this removes a significant manual administration burden.
• Proximity card user registration: Cards tie to named individuals in the NetBotz appliance, so access logs show who opened which rack and when — not just that a valid card was presented. That named audit trail is the difference between a useful incident report and a badge swipe that tells you nothing.

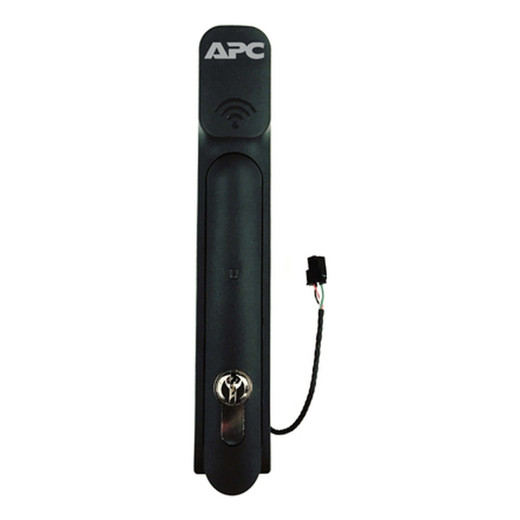

• Master key hard override: A mechanical key override is available for power-outage and maintenance scenarios. In practice, this means a rack can still be physically accessed during a UPS switchover or appliance reboot without needing a helpdesk call or a secondary credential path — a real operational consideration in 24/7 facilities.
• Password-protected read-only access mode: Administrators can grant monitoring visibility without write access, which matters when NOC staff need to see door-open alerts in real time but shouldn't be able to modify access schedules or register new cards.
• StruxureWare Data Center Expert integration: The NBPD0175's access events feed into Schneider's data center monitoring platform, giving infrastructure managers a unified view of environmental, power, and physical access data in a single pane. For organizations already running StruxureWare DCE, this eliminates a separate access control dashboard.

Integration and Compatibility

The NBPD0175 is a pod-only unit — it does not operate independently. Compatible appliances are the NetBotz 750 Rack Monitor and the NetBotz 755 Room Monitor. The pod connects to these appliances and inherits their alert logic, scheduling engine, and network connectivity. Handle kits and door sensors are sold separately and must be selected to match the card frequency (125kHz or 13.56 MHz) your environment uses. Mixing frequencies across pods on the same appliance is technically supported, but standardizing on a single card format simplifies credential management considerably.

For environments evaluating a rack access control strategy from scratch, the NBPD0175 combined with a NetBotz 750 or 755 appliance covers cabinet-level physical security, environmental monitoring, and alerting in a single integrated system — a meaningful difference from bolt-on solutions that require separate network segments and management consoles. Organizations already managing their data center through physical infrastructure management platforms will find the StruxureWare DCE integration the most operationally efficient path.

Frequently Asked Questions

Q: What appliances are compatible with the NBPD0175?

A: The NBPD0175 is compatible exclusively with the NetBotz 750 Rack Monitor Appliance and the NetBotz 755 Room Monitor Appliance. It will not operate as a standalone device or with other NetBotz appliance models.

Q: How many NBPD0175 pods can connect to a single appliance?

A: Up to 12 NBPD0175 pods can connect to one NetBotz 750 or 755 appliance, providing coverage for up to 24 individual cabinet doors total.

Q: What card frequencies does the NBPD0175 support?

A: The NBPD0175 supports both 125kHz (HID-legacy format) and 13.56 MHz (MIFARE/DESFire-compatible) proximity cards, depending on which handle kit is selected. Handle kits and door sensors are purchased separately.

Q: Does the NBPD0175 include handle kits and door sensors?

A: No. The NBPD0175 is a pod-only unit. Handle kits and door sensors must be purchased separately and matched to your chosen card frequency (125kHz or 13.56 MHz).

Q: What happens to rack access during a power outage?

A: The NBPD0175 includes a master key override that allows hard key access to racks during power outages or maintenance periods, so physical access is not blocked during appliance reboots or UPS switchovers.

Q: Does the NBPD0175 integrate with StruxureWare Data Center Expert?

A: Yes. The NBPD0175, operating through a NetBotz 750 or 755 appliance, integrates with Schneider Electric's StruxureWare Data Center Expert platform, feeding access events and alerts into a unified infrastructure management view.

James Everett

The NBPD0175 is the right call when you need cabinet-level access control that feeds into the same alerting stack as your environmental and power monitoring — not a standalone badge system bolted to the side of your racks. The key spec to anchor on here is the 12-pod / 24-door ceiling per appliance: for a standard two-row deployment with 20–22 cabinets, one NetBotz 750 or 755 handles the entire footprint, keeping management consolidated.

Technical Highlights:

• Dual card frequency support (125kHz / 13.56 MHz): Flexibility to match existing HID legacy deployments or deploy on higher-security 13.56 MHz credentials without swapping appliances mid-rollout — select the handle kit for your card standard and the pod follows.
• 24-door capacity via 12 pods: A single NetBotz appliance supervising 12 NBPD0175 units covers a full cabinet row — no secondary access control head-end, no separate credential database, no additional network segment to manage.
• Door-open surveillance trigger: Breach or prop events automatically trigger recording on the NetBotz appliance. For SOC 2 Type II or ISO 27001 audits, that timestamped video-plus-access-log correlation is significantly cleaner than reconstructing events from two separate systems after the fact.

Deployment Considerations:

• The NBPD0175 ships as a pod only — budget line items for handle kits and door sensors separately, matched to your card frequency. Ordering the wrong frequency handle kit is the most common procurement error on this product line.
• This pod is hard-scoped to the NetBotz 750 and 755 appliances. If your site runs a different NetBotz model, the NBPD0175 will not integrate — confirm your appliance model before quoting pods.

The NBPD0175 fits best in co-location facilities and enterprise data halls where physical access logging at the cabinet level is a compliance requirement, not just a nice-to-have — specifically where the same team managing power and environmental alerts also owns the physical security audit trail.
