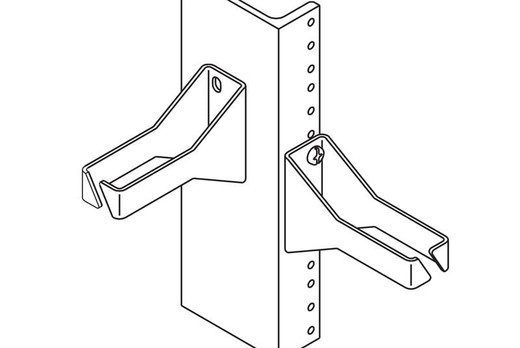

Chatsworth 11228-501 Narrow Cable Ring

Overview

The Chatsworth 11228-501 is a narrow cable ring designed for efficient cable management in network and surveillance installations. Its compact dimensions allow for neat routing of cables behind equipment racks, within enclosures, or along pathways where space is constrained. This ring helps prevent cable strain and damage by providing organized support, crucial for maintaining signal integrity and simplifying future maintenance. The 11228-501 is specifically useful in high-density environments where every inch of space counts.

Compatibility

This cable ring is a universal accessory designed to integrate with standard rack systems and cable management infrastructure. It is compatible with most 19-inch racks and server enclosures, as well as various cable runway and ladder rack systems. While not tied to specific camera or NVR models, it is an essential component for any structured cabling deployment supporting IP cameras, network switches, or recording devices.

Installation Notes

Mounting typically requires standard rack screws or T-nuts (not included) for attachment to rack rails or panels. Ensure the mounting surface can support the weight of the cables routed through the ring. For optimal performance, avoid sharp bends in cables passing through the ring; maintain a bend radius appropriate for the cable type (e.g., Cat6a, fiber optic).
