Overview:

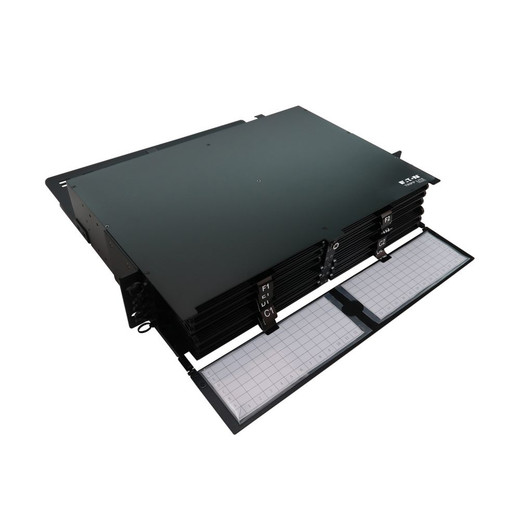

Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure 12 Splicing Cassettes 288 LC/UPC SM 0.9 mm 1.5 m 2U
Connector:
LC
Length:
1.5 M
Product Height:
3.46 in
Product Width:
19 in
Product Weight:
15.43 lb
Compliances:
REACH RoHS
Product Type:
Fiber patch panel and cassette and enclosure
Package Contents:
Velcro tie Spiral wrapping band Owner's manual N600P-288U-12 2U Panel Fiber Splice Enclosure (288) Single-splicing protective tubes (10) Nylon cable ties Mounting hardware
Product Features:
Built-in Cable Management Mounting Accessory Included Labeled Ports Numbered Ports Rackmountable
Network Speed:
40 Gbps 1 Gbps (Gigabit) 100 Gbps 10 Gbps 25 Gbps 800 Gbps 400 Gbps
SideA Connector1:
LC
Technology:
Singlemode
Operating Humidity:
5% to 85% RH, non-condensing
Operating Temperature Range:
14° to 140° F (-10° to 60° C)
Storage Humidity Range:
5% to 85% RH, non-condensing
Storage Temperature:
14° to 140° F (-10° to 60° C)
Insertion Loss:
≤0.30dB
Number Of Fibers:
288
Panel Dimensions:
19.10 x 3.46 x 18.51
Primary Form Factor:
Rackmount
Material Of Construction:
Metal
Cassette Capacity:
12
Number Of Cassette Splicing Trays:
12
Splicing Tray Dimensions (hwd/mm:
12.5 x 196.2 x 295
Cassette Patch Cord:
LC/UPC Singlemode, 1.5 M Pigtail, 0.9 mm
Minimum Required Rack Depth:
21.5 in
Rack Units:
2
Mounting Details:
RACK MOUNT
Wavelength:
1550 nm
Attenuation 1550NM:
≤0.30dB/KM
Endface Polish:
UPC
Fittings Included:
Mounting Accessory Included
Optical Mode:
OS2 SM
Optical Port:
LC
Series:
High-Density Panel Fiber Splice Enclosure
Splicing Cassettes:
12
Fiber Count:
288 LC/UPC SM
Pigtail Length:
1.5 m
Rack Height:
2U
Shipping Weight:
18.080 lb
Country Of Origin:
CN
