Middle Atlantic MPR 20A Module W/s-surge - M-20A-SP

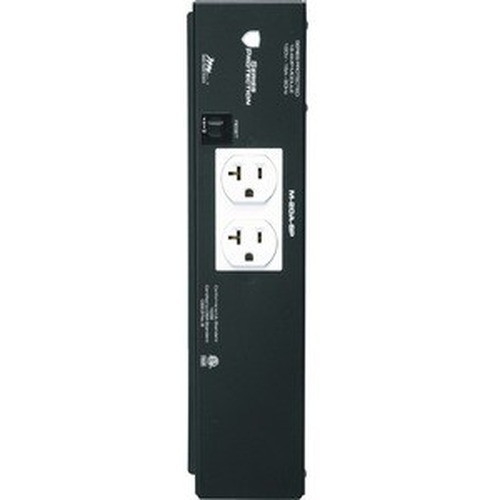

Middle Atlantic M-20A-SP Surge-Protected 20A Configurable Power Module

Overview

The Middle Atlantic M-20A-SP is a 20-amp, 120VAC modular power distribution unit designed for rack-integrated security and AV systems where configurable power allocation and baseline surge protection matter as much as the equipment being powered. Built for the MPR (Modular Power and Raceway) ecosystem, the M-20A-SP slots into Middle Atlantic rack enclosures as a dedicated single-circuit power module — giving integrators the flexibility to assign protected power exactly where it's needed without over-engineering a full UPS or multi-circuit panel for smaller loads.

For security integrators managing NVR cabinets, access control enclosures, or communications racks, the M-20A-SP (often searched as M 20A SP) is the workhorse fill-in: a clean 20A single circuit with series surge protection and ETL Recognized compliance baked in, no assembly required beyond sliding it into the MPR chassis.

Key Features

• 20-Amp Single Circuit: A dedicated 20A circuit means this module handles the full load of a mid-range NVR, multi-port PoE switch, or access control panel without sharing headroom with other devices. Single-circuit isolation also makes troubleshooting straightforward — if a downstream device trips the module, nothing else in the rack goes dark.
• Series Surge Protection: Unlike parallel (MOV-only) surge suppressors that can silently degrade over time, series protection actively filters and limits transient voltages inline before they reach connected equipment. This is the relevant distinction for long-term rack installations where you won't be swapping protection hardware annually.
• 120VAC Operation: Designed for standard North American 120VAC circuits, which means no step-down transformer or voltage adapter is needed in typical US commercial installations. Pair with a 20A-rated circuit breaker at the panel — the module is rated to match.
• Configurable Power Architecture: The MPR system's modular design means the M-20A-SP can be positioned within a rack enclosure to supply power specifically to the devices that need surge protection most — NVRs, recorders, or control panels — while other modules in the same chassis handle UPS-backed or switched loads independently.
• ETL Recognized Compliance: ETL Recognized listing (from Intertek) confirms the unit has been independently tested against applicable safety standards. For commercial installations subject to inspection or building code review, this listing supports permit sign-off without requiring additional field testing of the power distribution hardware.
• TAA Non-Compliant — Plan Accordingly: The M-20A-SP is not TAA compliant. For federal, GSA schedule, or government-contracted installations with TAA requirements, this module is not the correct choice — verify your procurement requirements before specifying it in a government bid.
• Compact Shipping Weight at 3.5 lbs: At 3.5 lbs (1.6 kg) shipped, the module adds minimal rack weight. In ceiling-mounted or wall-enclosure deployments where load distribution matters, the lightweight profile is a practical advantage.

Integration and Compatibility

The M-20A-SP is engineered as a component of Middle Atlantic's MPR power distribution line, and compatibility depends on pairing it with the correct MPR chassis. Verify the chassis model and available module slots before ordering — the module does not operate as a standalone unit. It integrates within rack power distribution systems commonly deployed alongside NVRs, video management servers, and network switches in security head-end enclosures.

For installations requiring a broader power management review — including UPS runtime calculation, circuit loading, and rack layout — consult a power distribution planning guide before finalizing module quantities. Pairing this module with rack enclosures and accessories from the same ecosystem simplifies installation and cable management.

Because this module provides series surge protection (not battery backup), it should be combined with a UPS module or upstream UPS device in any installation where ride-through during a power outage is required — the M-20A-SP protects against transients but does not provide runtime during outages.

Frequently Asked Questions

Q: Is the Middle Atlantic M-20A-SP TAA compliant for government procurement?

A: No. The M-20A-SP is explicitly listed as TAA Non-Compliant. It should not be specified for federal, GSA, or government-contracted projects with TAA requirements.

Q: What type of surge protection does the M-20A-SP use?

A: The M-20A-SP uses series surge protection, which filters transient voltages inline rather than the parallel (MOV-based) approach that degrades silently over time. This makes it more suitable for long-term rack installations.

Q: Does the M-20A-SP work as a standalone power strip or unit?

A: No. The M-20A-SP is a modular component designed to install within a compatible Middle Atlantic MPR chassis. It requires a matching MPR enclosure and cannot operate independently.

Q: How many circuits does the M-20A-SP provide?

A: One dedicated 20-amp circuit at 120VAC. Single-circuit design keeps loads isolated, which simplifies troubleshooting and prevents a tripped circuit from affecting other modules in the rack.

Q: Does the M-20A-SP provide battery backup or UPS functionality?

A: No. This module provides surge protection and power distribution only — it does not include battery backup. For ride-through during outages, pair it with a separate UPS module or upstream UPS in the same rack.

Q: What safety certifications does the M-20A-SP carry?

A: The M-20A-SP is ETL Recognized by Intertek, confirming independent third-party safety testing against applicable standards. This listing supports permit and inspection requirements in commercial installations.

Karl Wilson

The M-20A-SP fills a specific gap in MPR rack builds: when you need a dedicated 20A protected circuit for a single heavy load — an NVR drawing 15–18A, a multi-port managed switch, or a recording server — without pulling in a fully managed PDU with more overhead than the job warrants. The series protection architecture here is the spec that separates it from cheaper parallel-MOV strips that you'll eventually need to replace once the MOVs sacrifice themselves absorbing a few spikes.

Technical Highlights:

• 20A Single Circuit: A full 20-amp dedicated circuit means no shared headroom with adjacent modules — a meaningful distinction when an NVR or access control panel is drawing near its rated load continuously across a 24/7 recording environment.
• Series Surge Protection: Inline series filtering catches and limits transients before they reach downstream equipment rather than bleeding them to ground progressively. Better long-term protection profile for installed security infrastructure that won't be routinely inspected.
• ETL Recognized: Third-party safety listing from Intertek. In commercial construction with electrical inspections involved, this is the difference between a sign-off and a callback. Don't skip verifying the listing matches your jurisdiction's requirements.

Deployment Considerations:

• The M-20A-SP is a chassis-dependent module — confirm the target MPR enclosure has an available module bay and is rated for an additional 20A circuit before purchasing. Ordering without verifying chassis compatibility is the most common install-day problem with MPR systems.
• No TAA compliance on this unit. If there is any possibility the rack end up in a government facility or on a federally funded contract, flag this at the design stage — substituting after award is painful.

Best fit for commercial security head-end closets and enterprise IT rooms where a dedicated protected 20A feed for a single NVR or network device is the exact requirement — not more, not less. Avoid overspecifying a full managed PDU when this module and its chassis slot are sufficient for the load.
