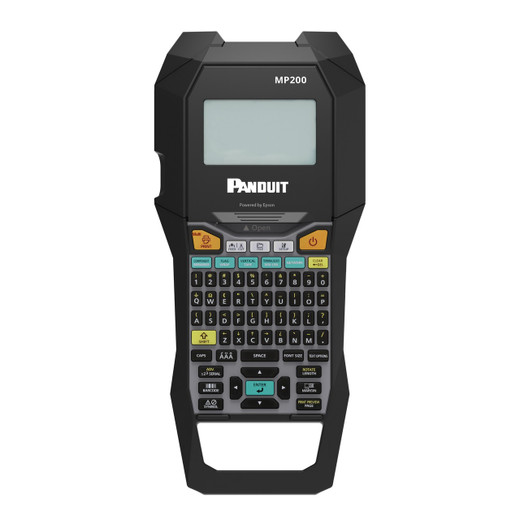

Panduit MP200 PXE Mobile Label Printer
Overview
The Panduit MP200 is a rugged, portable label printer from the PXE™ line designed for industrial identification work — network infrastructure labeling, electrical panel marking, and general facility ID tasks where you need a reliable handheld device on the job site rather than a desktop unit back in the shop. At 1.2 in/sec print speed with a powered cutter that handles both full and half cuts, the MP200 is built for technicians who print dozens of labels per shift, not one-offs. The package ships with the printer, a continuous label cassette, and a quick reference card, so you can be printing within minutes of opening the box.
If you're evaluating the Panduit label printer lineup and comparing across the Panduit catalog, the MP200 sits in the mobile tier — economical, compact, and field-ready — as opposed to the full bench-top industrial printers in the range. It's RoHS compliant and rated for global use.
Key Features
- 1.2 in/sec Print Speed: Fast enough for a field tech to keep pace with a large patch panel labeling job or full electrical cabinet marking session without standing around waiting — this isn't a slow consumer label maker. At 1.2 in/sec, even a 50-label run finishes in well under a minute.
- Powered Full and Half Cutter: The motorized cutter does both full cuts (separating labels completely) and half cuts (leaving the backing intact for easy peel-and-apply). Half-cut mode is the right setting for pre-printing a batch and applying quickly — you don't lose labels to a pile of loose pieces. Full cut is cleaner for individual long-run labels.
- 1.0-Inch Continuous Tape Width: Handles continuous tape up to 1.0 in. wide — wide enough for readable rack labels, cable wraps, patch panel IDs, and electrical breaker markers without being oversized. Compatible with Panduit's T100X000VPEA continuous label cassette included in the box.
- Large LCD Backlit Screen: The backlit display is readable in dim server rooms, electrical closets, and under-desk environments where you typically can't bring in extra lighting. You don't need a smartphone or PC connection just to navigate label settings — everything is manageable on-device.
- Custom Label Modes, Barcodes, and Symbols: Built-in support for barcode generation and symbol sets means you can produce machine-readable labels for asset tracking or compliance tagging directly from the printer — no separate barcode software or PC required for common barcode types.
- Compact Physical Footprint (5.4 × 3.5 in): At 5.4 in. wide and 3.5 in. tall, the MP200 fits in a tool bag or field kit without displacing other gear. The compact form factor matters when you're on a ladder or working inside a cramped IDF closet and need the printer accessible but not in the way.
- RoHS Compliant: Meets RoHS environmental standards — relevant for projects under green procurement requirements or government facility contracts that mandate RoHS compliance on installed equipment and tools.
- Global Use Rated: Cleared for deployment across international projects and facilities without power adapter or regulatory substitution concerns — useful for organizations managing infrastructure across multiple countries.
Integration and Compatibility
The MP200 is designed to work within the broader Panduit PXE™ labeling ecosystem. It accepts Panduit continuous label cassettes — the T100X000VPEA cassette ships in the box — and is compatible with the range of Panduit label media designed for network, electrical, and industrial ID applications. If you're sourcing labels for label printers across multiple Panduit units in your facility, the PXE media line provides the broadest coverage.
The printer operates standalone — no PC or driver installation is required for basic label printing, barcode generation, and symbol selection. This matters in environments where field technicians work without laptop access or where IT policies restrict software installations on job-site machines. For organizations standardizing on a single labeling platform across their network and electrical infrastructure teams, the MP200's cassette system integrates with Panduit's broader network labeling and cable identification product lines.
Competitive context: Panduit lists the Brady M210 as the primary comparable competitor model. If you're migrating from Brady M-series labelers, the MP200 targets the same mobile-industrial segment with Panduit's cassette media system instead of Brady TLS/M-series cartridges — media is not cross-compatible, so plan your consumables inventory accordingly at the start of a project.
What's in the Box
- 1x Panduit MP200 PXE Mobile Label Printer
- 1x Continuous label cassette (T100X000VPEA)
- 1x Quick reference card
Frequently Asked Questions
Q: What is the maximum tape width the MP200 supports?
A: The MP200 handles continuous tape up to 1.0 inch (25.4mm) wide. It is designed for network, electrical, and general industrial identification labeling applications.
Q: Does the MP200 require a PC or software to operate?
A: No. The MP200 operates as a standalone device. The large backlit LCD display lets you configure label modes, barcodes, and symbols directly on the printer without a connected computer or driver installation.
Q: What type of cutter does the MP200 have?
A: The MP200 has a powered motorized cutter that supports both full cuts (complete label separation) and half cuts (backing intact for batch peel-and-apply). The powered cutter is a step above manual-cut printers in the same price range.
Q: Is the MP200 RoHS compliant?
A: Yes. The Panduit MP200 meets RoHS compliance standards and is rated for global use.
Q: What label cassette is compatible with the MP200?
A: The MP200 uses Panduit PXE continuous label cassettes. The T100X000VPEA continuous cassette ships in the box. Additional Panduit-compatible cassettes in the PXE media line are available separately for network, electrical, and industrial applications.
Q: What are the physical dimensions of the MP200?
A: The MP200 measures 5.4 inches wide by 3.5 inches tall (136mm × 90mm). The overall length is 11.7 inches. This compact footprint is designed to fit in a tool bag or field kit for use in IDF closets, server rooms, and electrical panels.
The spec I keep coming back to on the MP200 is the powered dual-mode cutter — full and half cut in a handheld at this price point is genuinely useful in the field, not a spec-sheet checkbox. I've seen techs lose significant time on large structured cabling jobs because their handheld cutter was manual or single-mode; half-cut mode lets you pre-print an entire panel run, peel as you go, and stay in a rhythm. That's the workflow the MP200 is actually designed for.
Technical Highlights:
- 1.2 in/sec Print Speed: Fast for a mobile handheld — on a 48-port patch panel label job, the difference between 0.5 in/sec and 1.2 in/sec is tangible. You're not waiting on the printer between ports.
- 1.0-Inch Continuous Tape: The 1.0-inch max width covers the majority of network and electrical ID use cases — port labels, breaker tags, cable wraps — without the bulk of a wider-format unit you don't need in the field.
- Standalone Operation with Backlit LCD: No laptop dependency means a field tech can run a full label session in a live server room or dimly lit electrical closet without pulling out additional hardware. The backlit display is the right call for low-light environments.
Deployment Considerations:
- The MP200 ships with the T100X000VPEA continuous cassette — confirm your label material needs before ordering consumables. If your project requires heat-shrink, vinyl, or specialty substrates, verify PXE cassette compatibility before assuming the media you need is available in the PXE format.
- Media is not cross-compatible with Brady M-series cartridges. If your team runs mixed Panduit and Brady labelers, you're managing two separate consumable inventories — factor that into your standardization decision before deploying the MP200 at scale.
The MP200 is the right tool for structured cabling and electrical panel commissioning teams who need a fast, standalone handheld that can keep up with a full IDF buildout in a single shift — not for occasional one-label jobs where any basic labeler will do.
