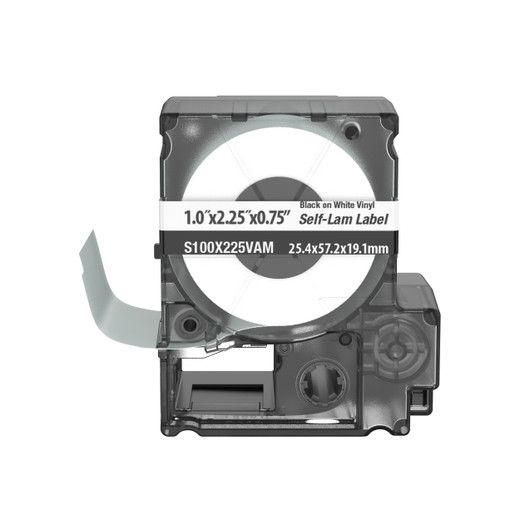

Panduit S100X225VAM Self-Laminating Wire and Cable Label Cassette

The Panduit S100X225VAM is a PXE™ self-laminating vinyl label cassette engineered for permanent wire and cable identification on conductors ranging from 8 to 4 AWG. Designed exclusively for use with the MP300 portable label printer, this cassette bundles both the label stock and the ribbon into a single drop-in unit — eliminating the separate ribbon-loading step and reducing changeover time in the field. Each cassette contains 125 pre-cut labels at 25.4 × 57.2 mm, sold one cassette per package.

Overview

Self-laminating labels are the right call anywhere a printed wire marker needs to survive long-term: electrical panels, cable trays, patch bays, and any installation where abrasion, moisture, or repeated handling would degrade an unprotected printed surface. The S100X225VAM uses a white print zone overlaid with a transparent laminate flap — the laminate wraps around the wire after application, encapsulating the printed text and protecting it from smearing, chemicals, and UV exposure. That construction is what separates a self-laminating label from a basic adhesive flag, and it matters on conductors that won't be re-labeled for years.

The cassette format itself is worth understanding if you're evaluating Panduit PXE™ label cassettes for the first time: the all-in-one ribbon-plus-label design means technicians in the field don't carry separate ribbon spools, and a depleted cassette swaps in seconds without touching any internal components of the MP300 printer.

Key Features

• Self-Laminating Vinyl Construction: The transparent overlaminate wraps around the conductor after application, sealing the printed text against abrasion, moisture, and handling wear. On 8–4 AWG conductors in industrial or electrical environments, this extends legible label life far beyond unprotected paper or polyester alternatives.
• 25.4 × 57.2 mm Label Dimensions: The 57.2 mm print length provides enough horizontal space for a wire number, circuit ID, and destination field on a single label — useful in panel work where technicians need to read three data points without unwrapping the conductor. The 25.4 mm (1 inch) width fits cleanly around 8 AWG without bunching.
• 8 to 4 AWG Wire Range: This cassette is sized for medium-to-large branch circuit conductors — the kind found in 20A–60A panel runs, motor control wiring, and heavier building infrastructure. If your application involves control wiring at 16–22 AWG, you'll need a narrower cassette from the PXE™ label family.
• Integrated Ribbon Cassette: Ribbon and label stock ship together as one unit. In the field, a spent cassette swaps in under 30 seconds — no ribbon threading, no alignment step. This matters on service calls where a technician is labeling under time pressure.
• White Print Zone with Clear Overlaminate: The white background maximizes print contrast for barcode and alphanumeric text. After wrapping, the transparent flap holds the printed area flat against the conductor, preventing the label from peeling at the edge — a common failure point on wrap-style labels in warm or humid environments.
• 125 Labels per Cassette: Sized for a day's work on a mid-scale panel or cable run. At 125 labels per cassette and 5 cassettes per package (625 labels total), a single package covers a substantial wiring job without repeated reorders.
• RoHS-Compliant Materials: The vinyl substrate meets RoHS requirements, which matters for projects in jurisdictions requiring material compliance documentation — commercial construction in the EU, or US federal/state projects with RoHS language in their specs.
• MP300 Printer Compatibility: The S100X225VAM is validated for use with the Panduit MP300 portable label printer. If your site is standardized on a different PXE™-compatible printer model, verify cassette compatibility before ordering — the cassette keying is model-specific.

Integration and Compatibility

This cassette is designed for use with the MP300 portable label printer exclusively. The PXE™ cassette system uses a keyed mechanical interface — cassettes from this family will not seat in printers outside the compatible range. Competitor cross-references include M-51-427, M6-21-427, PTL-21-427, and several S100X225V variants (AC, BC, DC, HC, IC) — if you're replacing a cassette from one of those part numbers, verify the printer model first, as the cross-reference may cover a different printer platform. For wire and cable labeling solutions across a broader AWG range, the PXE™ family includes cassettes from fine control wire up through large feeder conductors.

What's in the Box

• 1× Panduit S100X225VAM PXE™ self-laminating vinyl label cassette (125 labels, ribbon included)

Frequently Asked Questions

Q: What printer is the S100X225VAM compatible with?

A: The S100X225VAM is validated for use with the Panduit MP300 portable label printer. It is not confirmed compatible with other PXE™ printer models — verify your printer model before ordering.

Q: How many labels are included in the S100X225VAM cassette?

A: Each cassette contains 125 pre-cut self-laminating vinyl labels at 25.4 × 57.2 mm. The package quantity is 1 cassette; the carton quantity is 80 cassettes (5 packages of 5 per carton at 80 cassettes total).

Q: What wire sizes does the S100X225VAM fit?

A: The label is sized for conductors in the 8 to 4 AWG range — medium-to-large branch circuit and feeder wiring. For smaller control wire (16 AWG and below), select a narrower PXE™ cassette from the Panduit label family.

Q: Is the S100X225VAM RoHS-compliant?

A: Yes. The S100X225VAM meets RoHS requirements as stated in the product specifications.

Q: Does the ribbon come included, or does it need to be ordered separately?

A: The ribbon is integrated into the cassette — no separate ribbon purchase is required. The all-in-one PXE™ cassette format includes both label stock and ribbon in a single drop-in unit.

Q: What are the cross-reference part numbers for the S100X225VAM?

A: Known cross-references include M-51-427, M6-21-427, PTL-21-427, S100X220VAC, S100X225VAC, S100X225VBC, S100X225VDC, S100X225VHC, S100X225VIC, and XSL-21-427. Confirm printer compatibility before substituting, as some cross-references may apply to different printer models.

Karl Wilson

The S100X225VAM is a straightforward consumable, but the detail that matters most in the field is the 8–4 AWG sizing: this cassette is built for branch circuit and feeder conductors, not control wire. If you're labeling a mixed panel with both 12 AWG branch circuits and 20 AWG control runs, you'll need two cassette SKUs — this one won't wrap cleanly on fine wire.

Technical Highlights:

• Integrated Ribbon Format: The all-in-one cassette eliminates separate ribbon management — relevant when technicians are working from a tool bag in the field rather than a stationary print station. Swap time under 30 seconds with no threading.
• 125 Labels per Cassette at 57.2 mm Print Length: Long enough to carry wire number, source, and destination on a single label without crowding. At 5 cassettes per package, a single order covers 625 labels — enough for a substantial panel run without mid-job reorders.
• RoHS-Compliant Vinyl Substrate: Matters specifically on projects with material compliance documentation requirements — EU installations, federal contracts, or any spec sheet that calls out RoHS explicitly. The compliance is stated; document it in your submittal package.

Deployment Considerations:

• Compatibility is locked to the MP300 printer — the PXE™ cassette key is model-specific. Confirm your printer model before stocking these; the cross-reference list (M-51-427, PTL-21-427, and others) may point to different printer platforms depending on the source.
• The self-laminating flap provides meaningful protection in humid or abrasive environments, but the base material is vinyl — not rated for extreme heat exposure. For high-temperature environments near bus bars or heat-generating equipment, verify thermal tolerance before specifying.

Best fit for commercial electrical and low-voltage panel work where the 4–8 AWG range covers the bulk of the conductors being labeled and the MP300 is already the site's standard printer. Less suited to data center patch labeling or fine control wire — different cassette sizes serve those applications.
