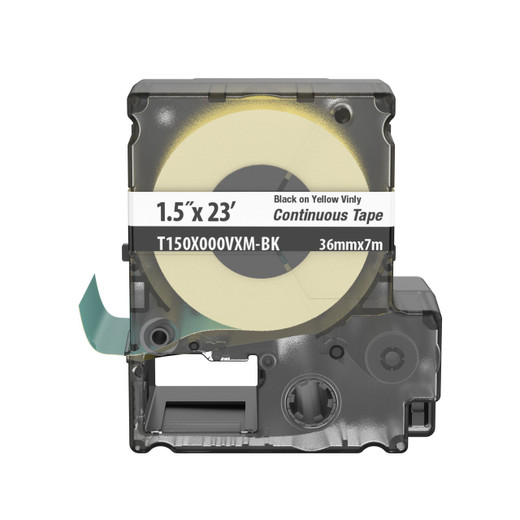

Panduit T150X000VXM-BK PXE™ Continuous Vinyl Label Tape Cassette
The Panduit T150X000VXM-BK is a PXE™ continuous vinyl label tape cassette designed for on-demand printing of pipe markers, bin labels, voltage indicators, network ID panels, and facility identification labels. Measuring 36 mm (1.47 in) wide by 7 m (23 ft) long and printing black on yellow, this cassette is engineered for use exclusively with the Panduit MP300 portable label printer. It ships five cassettes per package, making it a practical replenishment unit for facilities running high-volume identification programs.
Key Features
- Vinyl construction: Vinyl substrate resists moisture, chemicals, and abrasion better than paper alternatives — meaningful when labeling conduit runs in mechanical rooms, outdoor panels, or wash-down areas where paper labels degrade quickly.
- Black-on-yellow color combination: High-contrast black print on yellow background improves legibility at a glance for safety-critical applications such as voltage warnings and pipe content markers — the same color convention used in ANSI/ASME A13.1 pipe marking standards.
- 36 mm (1.47 in) tape width: Wide enough to accommodate multi-line text and symbols in a single pass, so you can print a pipe label with content, direction arrow, and hazard notation without repositioning or layering.
- 7 m (23 ft) per cassette run length: At a practical average marker length of roughly 150–200 mm, one cassette yields 35–45 individual labels — enough for a mid-size panel or a section of pipe run before reloading.
- Cassette format with integrated ribbon: The combined tape-and-ribbon cassette design eliminates separate ribbon handling. Load changes take seconds, reducing downtime for technicians working through a labeling punch list on a job site.
- RoHS compliant: Meets EU Restriction of Hazardous Substances directive, which matters for projects where environmental compliance documentation is required at handoff — common in EU-destined equipment or LEED-tracked facilities.
- PXE™ sub-brand: Designates Panduit's portable printing ecosystem; cassettes, printers, and label stock within PXE™ are matched for output quality and printer compatibility — cross-brand substitution risks print misalignment or void warranties.
- Flat label applications only: Per Panduit's own specification, this tape is rated for flat label surfaces. It is not formulated for wrap-around pipe marking (which requires a different cassette series), so verify your application geometry before ordering.
Integration & Compatibility
The T150X000VXM-BK is validated for use with the Panduit MP300 portable label printer — the only printer confirmed in the evidence base. Do not assume compatibility with other MP-series or PXE™ printers without verifying the cassette compatibility matrix on the printer's spec sheet. The cassette format is self-contained, so no separate ribbon cartridge is needed for the MP300.
Cross-reference part numbers from competing label systems — Brady M5C-1500-595-YL-BK, MC1-1000-595-YL-BK, MC1500-595-YLBK, PTL-43-439-YL, and 236BYPX — confirm this cassette is positioned as a direct replacement option for facilities standardizing on Panduit hardware after migrating from Brady label printers. Verify print width and printer compatibility before substituting in a mixed-fleet environment.
For broader labeling infrastructure needs, explore labels, markers, and printer supplies or review the signs and identification category for complementary products including pre-printed markers and specialty tapes. If you are provisioning a complete portable printing kit, pair with portable label printers and evaluate carrying cases and spare cassette holders available in the Panduit accessory line.
What's in the Box
- 5× T150X000VXM-BK PXE™ continuous vinyl label tape cassettes (36 mm × 7 m, black on yellow)
Frequently Asked Questions
Q: Which printer is the T150X000VXM-BK compatible with?
A: The T150X000VXM-BK is specified for use with the Panduit MP300 portable label printer. No other printers are confirmed in the product documentation — verify compatibility before use with any other model.
Q: How many cassettes are included in one package?
A: Each package contains 5 cassettes. Carton quantity is 80 cassettes (16 packages per carton), which is useful to know for bulk procurement planning.
Q: What is the tape width and run length per cassette?
A: Each cassette is 36 mm (1.47 in) wide and 7 m (23 ft) long — sufficient for approximately 35–45 standard-length identification labels per cassette depending on label length programmed.
Q: Can the T150X000VXM-BK be used for wrap-around pipe markers?
A: No. Per Panduit's product specification, this tape is designed for flat label applications only. Wrap-around pipe marking requires a different cassette series formulated for curved surface adhesion.
Q: Is the T150X000VXM-BK RoHS compliant?
A: Yes. The T150X000VXM-BK meets RoHS (Restriction of Hazardous Substances) compliance standards, making it suitable for projects requiring environmental compliance documentation at project handoff.
Q: What are the cross-reference part numbers for competing label systems?
A: Panduit lists the following competitor cross-references: Brady 236BYPX, M5C-1500-595-YL-BK, MC1-1000-595-YL-BK, MC1500-595-YLBK, and PTL-43-439-YL. Always confirm print width and printer compatibility before substituting cassettes across brands.
The T150X000VXM-BK is a purpose-built consumable for the MP300 ecosystem, and the spec detail that matters most in a real deployment is the flat-only application constraint. At 36 mm wide and 7 m per cassette, this tape covers panel ID labels and bin markers cleanly — but if your scope includes pipe wrap, you need a different series. I've seen projects order the wrong cassette type because the width looked right; the flat-only limitation is not obvious from the part number alone.
Technical Highlights:
- 36 mm × 7 m per cassette: At typical ID label lengths of 150–200 mm, each cassette yields 35–45 labels — plan cassette count against your label count per panel or per pipe section to avoid mid-job stockouts.
- 5-pack package format: The T150X000VXM-BK ships 5 cassettes per package with a carton quantity of 80, so high-volume jobs can be procured at full carton to reduce per-unit cost and consolidate shipping.
- RoHS compliance: Documented compliance is print-ready for handoff binders on projects with environmental reporting requirements — no additional certification chase needed for this line item.
Deployment Considerations:
- This cassette is validated for the Panduit MP300 only — before specifying for a job, confirm the field team's printer model. Running it on an unverified MP-series printer risks print quality issues or feed errors that waste cassette material on-site.
- The black-on-yellow color scheme is correct for electrical hazard and pipe content marking conventions, but verify your facility's or customer's labeling standard before ordering in bulk — some standards call for specific color combinations by application category that differ from this stock color.
The T150X000VXM-BK is the right call for electrical panel labeling projects and network ID campaigns in commercial facilities where the MP300 is already the standardized field printer and flat-surface labels are the dominant output type.
