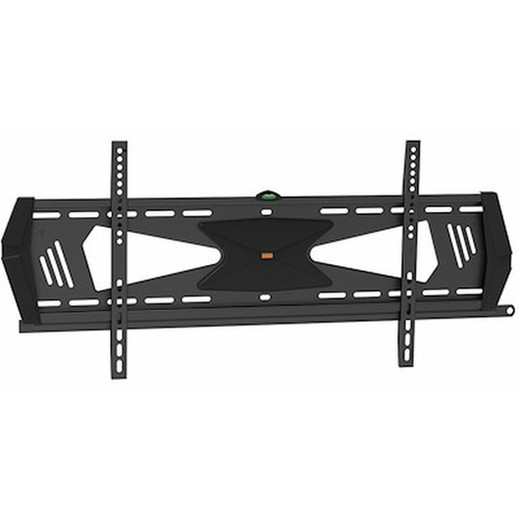

StarTech FPWFXBAT Fixed Low-Profile Flat-Panel TV Wall Mount

Overview

The StarTech FPWFXBAT is a fixed-position, low-profile wall mount designed to hold flat-panel displays from 37 to 75 inches at a consistent 0.9-inch standoff from the wall. If your installation calls for a permanently oriented display — digital signage in a lobby, a monitoring screen in a security operations center, or a presentation panel in a conference room — this bracket locks the panel in place and keeps it there without articulation mechanisms that can drift or loosen over time. Steel construction and an 88.2 lb (40 kg) weight capacity mean it handles commercial-grade displays, not just consumer panels.

For integrators working through a range of flat-panel mounting solutions, the FPWFXBAT covers the wide middle of the commercial display market without over-engineering the install.

Key Features

• 37–75 Inch Display Compatibility: Covers the full range of commercial displays commonly deployed in boardrooms, operations centers, and digital signage applications — one SKU handles most standard panel sizes rather than requiring size-specific brackets per install.
• 88.2 lb (40 kg) Weight Capacity: Supports heavier commercial-grade panels, including large-format displays with integrated media players or thicker bezels, without flexing or shifting under load. Verify your display's shipping weight and subtract packaging — actual display weight is what matters here.
• 0.9-Inch (22 mm) Minimum Wall Profile: The panel sits just 22 mm off the wall surface, which matters in tight corridors, narrow hallways, or any installation where protrusion depth affects foot traffic clearance or aesthetics. This is meaningfully thinner than many articulating arm mounts that extend 2–4 inches even in their retracted position.
• Nine VESA Hole Pattern Configurations: Compatible with VESA patterns including 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, and 800x400 mm — covering the majority of commercial flat panels without adapter plates. Always cross-reference your display's VESA spec before ordering.
• Steel Construction: The bracket itself weighs 6.4 lb (2.9 kg), which is consistent with solid-gauge steel fabrication rather than stamped sheet metal. That matters for long-term rigidity in permanent installs where vibration from HVAC or foot traffic can work fasteners loose on lighter brackets.
• Fixed-Position Locking Design: No tilt, swivel, or articulation. In security and operations deployments where viewing angle is set once during commissioning and never changed, a fixed mount eliminates the risk of the panel being accidentally repositioned by cleaning staff or occupants — a recurring nuisance in fixed-viewing-angle environments.
• Black Finish: Matches standard commercial display bezels and blends with ceiling tile or painted drywall backgrounds, reducing visual distraction in monitoring environments where the display content is what needs attention.
• 5-Year Warranty: A five-year manufacturer warranty on a passive mechanical bracket is a meaningful signal of build confidence — most structural mounting failures occur early or very late; a five-year coverage window captures both.

Integration and Compatibility

The FPWFXBAT is compatible with any flat-panel display between 37 and 75 inches that uses one of the nine listed VESA mounting patterns and weighs no more than 88.2 lb. It is not a camera mount, speaker bracket, or tilt arm — it is a fixed-position panel mount only. Before specifying this bracket in a digital signage installation or operations center build-out, confirm three things: (1) the display's VESA hole pattern matches one of the nine supported configurations, (2) the display's actual weight (not shipping weight) is under 88.2 lb, and (3) the wall structure behind the mount location can support the combined weight of the display and bracket. Stud or masonry anchoring is standard practice for any display over 40 lb — do not rely on drywall anchors alone for commercial installs.

Integrators specifying mounting hardware alongside StarTech's full AV and connectivity catalog will find the FPWFXBAT consistent with StarTech's commercial-grade hardware approach. For deployments pairing this mount with a managed display or network video recorder output, route cables behind the wall before final panel installation — the 22 mm standoff leaves minimal clearance for rear-cable management once the panel is seated.

Frequently Asked Questions

Q: What VESA patterns does the FPWFXBAT support?

A: The FPWFXBAT supports nine VESA hole patterns: 300x200 mm, 300x300 mm, 400x200 mm, 400x300 mm, 400x400 mm, 600x200 mm, 600x300 mm, 600x400 mm, and 800x400 mm. Always confirm your display's VESA spec before ordering.

Q: What is the maximum display weight the FPWFXBAT can hold?

A: The FPWFXBAT is rated for displays up to 88.2 lb (40 kg). Use the actual display weight — not the shipping weight — when verifying compatibility.

Q: How far does the display sit from the wall with the FPWFXBAT installed?

A: The minimum profile from the wall surface is 0.9 inches (22 mm). This is a fixed distance — the bracket does not tilt, swivel, or extend.

Q: Does the FPWFXBAT allow tilt or swivel adjustment?

A: No. The FPWFXBAT is a fixed-position mount only. Once installed, the display angle cannot be adjusted without removing and remounting the bracket. If you need tilt or articulation, a different mount is required.

Q: What is the warranty on the FPWFXBAT?

A: The FPWFXBAT carries a 5-year manufacturer warranty.

Q: What display sizes does the FPWFXBAT fit?

A: The FPWFXBAT is designed for flat-panel displays from 37 inches to 75 inches diagonal. Compatibility also depends on the display's VESA mounting pattern — confirm this matches one of the nine supported configurations.

Ted Perry

The spec I keep coming back to on the FPWFXBAT is that 0.9-inch (22 mm) wall standoff. In operations centers and command rooms where you're mounting multiple displays side by side, that slim profile means the panels sit flush enough to read as a unified video wall rather than a collection of floating screens. At 88.2 lb rated capacity, this bracket handles most 65–75 inch commercial panels without you having to verify the math twice.

Technical Highlights:

• Nine VESA Patterns: Covering 300x200 through 800x400 mm, this bracket fits the overwhelming majority of commercial flat panels — you're unlikely to pull a display spec sheet and find a gap unless you're working with a non-standard OEM configuration.
• Steel at 6.4 lb: The bracket weight itself tells you something — 6.4 lb for a mount rated to 88.2 lb means you're working with real-gauge steel, not stamped sheet metal. That directly affects long-term rigidity in high-vibration environments like manufacturing floors or mechanical rooms.
• 5-Year Warranty: On a passive bracket, a five-year warranty indicates the manufacturer isn't worried about early field failures — important when you're specifying mounts for a multi-site rollout and can't afford callbacks on mechanical hardware.

Deployment Considerations:

• The fixed-position design is a feature in any install where viewing angle is set during commissioning — but confirm the final display position before drilling. Repositioning requires full remount, and at 22 mm standoff, there is no adjustment range built in.
• At 88.2 lb capacity, this bracket handles most commercial panels in the 37–75 inch range, but always verify the actual panel weight against the datasheet — manufacturer-listed display weights can vary by configuration, especially with integrated media players or soundbars.

This mount is the right specification for fixed-angle installs in security operations centers, digital signage corridors, and conference rooms where the display goes up once and stays there — not for customer-facing retail environments where staff regularly adjust panel angles.
