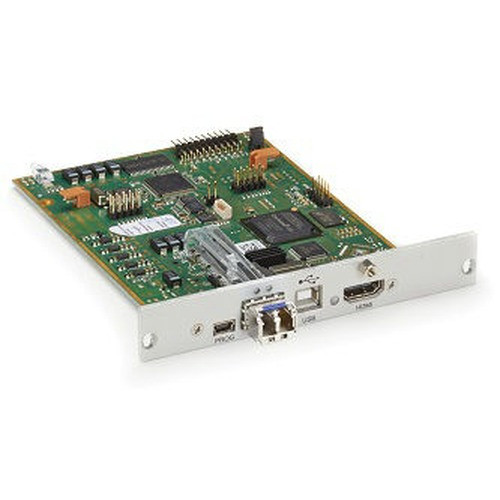

Black Box ACX1MT-HDMI-SM Modular KVM Extender Transmitter

Overview

The Black Box ACX1MT-HDMI-SM is the transmitter module for Black Box's ACX modular KVM-over-fiber extender platform, designed to carry HDMI video signals across single-mode fiber infrastructure. As the source-side half of an extender pair, it connects to the host computer or source device and converts the HDMI signal for long-haul transport over single-mode fiber — the right approach when you need to push video and control signals well beyond the 10–15 meter limit of direct HDMI cabling. This module pairs with a compatible ACX receiver to complete the extension link, making it a targeted solution for broadcast control rooms, secure server room deployments, or any environment where source and display must be separated by significant distance.

Key Features

• HDMI Signal Transport: Carries HDMI video from the source device to the fiber link — preserving digital video integrity without the signal degradation that plagues long copper HDMI runs. No analog conversion in the signal path means what the source outputs is what the receiver sees.
• Single-Mode Fiber Interface: Single-mode fiber (SM) supports substantially greater reach than multimode — typically enabling distances in the hundreds of meters to several kilometers depending on the paired receiver and transceiver — making this module the right choice when the source and display are in different buildings or across campus infrastructure.
• Modular Platform Architecture: The ACX1MT-HDMI-SM is a transmitter module within Black Box's modular ACX extender family. This approach lets you mix and match transmitter and receiver modules to match your exact signal types and distances, rather than purchasing a fixed, monolithic extender that may overshoot or undershoot your requirements.
• Compact Form Factor: As a dedicated transmitter module, it installs at the source end — at the workstation, server, or AV source — keeping the deployment footprint small at the host side.

Integration & Compatibility

The ACX1MT-HDMI-SM (often searched as ACX1MT HDMI SM) is designed to operate within the Black Box ACX modular extender ecosystem. Confirm receiver compatibility and supported HDMI resolutions with the paired ACX receiver module before deploying. For full specification details including supported resolutions, maximum fiber distance, power input, and USB/audio extension capabilities, consult the Black Box product datasheet or contact pre-sales engineering. If you are evaluating KVM extender solutions for a broader deployment, review your fiber plant type carefully — single-mode and multimode modules are not interchangeable, and selecting the wrong fiber type is the most common installation error in fiber-based KVM extension.

Frequently Asked Questions

Q: What is the difference between the ACX1MT-HDMI-SM and a multimode variant?

A: The SM designation indicates single-mode fiber. Single-mode supports longer transmission distances than multimode and is the preferred choice for inter-building or campus-scale deployments. If your fiber plant is multimode (OM1/OM2/OM3/OM4), you would need a multimode-specific transmitter module instead.

Q: Does the ACX1MT-HDMI-SM transmit audio as well as video?

A: HDMI carries embedded audio by default, so audio transport depends on whether the ACX extender platform passes the full HDMI signal including audio channels. Confirm audio pass-through support with the paired receiver module specifications before assuming full AV extension.

Q: Can the ACX1MT-HDMI-SM be used as a standalone device?

A: No. The ACX1MT-HDMI-SM is the transmitter half of an extender pair. It requires a compatible ACX receiver module at the display or destination end to complete the signal path.

Q: Is the ACX1MT-HDMI-SM TAA compliant?

A: TAA compliance has not been confirmed in the available product evidence for this specific module. Contact Black Box directly or consult the current product datasheet to verify compliance status before purchasing for federal or government projects.

Karl Wilson

The ACX1MT-HDMI-SM is the source-end piece of the puzzle — the module you drop at the workstation or server rack when you need HDMI to travel over single-mode fiber to a remote display or KVM receiver. Single-mode fiber is the right call whenever your run exceeds what multimode can reliably cover, or when your building's existing fiber plant is already SM infrastructure.

Technical Highlights:

• HDMI over Single-Mode Fiber: Converts HDMI signal at the source for single-mode fiber transport — the only clean answer for long-distance video extension without signal compromise.
• Modular ACX Platform: Slots into Black Box's ACX modular chassis ecosystem, meaning you replace only the module if your signal type or distance requirements change — not the entire extender unit.
• Transmitter-Only Role: Purpose-built as the TX half; the receiver module at the far end determines the supported resolution ceiling and maximum fiber reach for the complete link.

Deployment Considerations:

• Verify the paired ACX receiver module part number before ordering — transmitter and receiver must be matched for signal type (HDMI) and fiber type (single-mode); a mismatch produces no link.
• Single-mode fiber and multimode fiber require different transceivers and are not interchangeable — confirm your fiber plant type with your facilities team before specifying SM modules.

Best fit for secure operations centers, broadcast control rooms, or campus-scale AV/KVM deployments where single-mode fiber already runs between the source room and the display or operator station — and where you need a modular, field-swappable transmitter rather than a fixed-format extender appliance.
