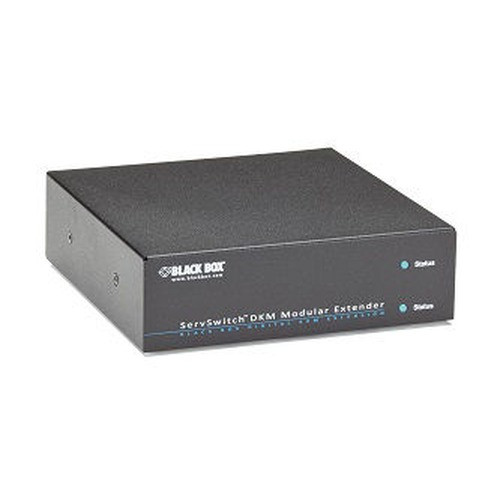

Black Box ACXMODH2R-R2 2-Slot Modular KVM Extender Chassis

Overview

The Black Box ACXMODH2R-R2 is a 2-slot modular chassis designed for use within the Black Box ACX KVM extender ecosystem. Modular KVM extender architectures let you consolidate signal extension hardware into a shared chassis, reducing rack space and simplifying cable management compared to deploying individual standalone extender units. The ACXMODH2R-R2 accepts two module slots, making it a compact entry point into the modular ACX platform — suited to smaller deployments or satellite locations where only a handful of KVM extension links are needed alongside a centralized receiver or transmitter blade infrastructure.

The ACXMODH2R-R2 (often searched as ACXMODH2R R2) is the replacement/revised version of the original ACXMODH2R, indicated by the -R2 suffix that Black Box uses to denote hardware revision updates. If you are sourcing spares or expanding an existing ACX modular installation, confirm your existing chassis generation before ordering to ensure blade compatibility.

Key Features

• 2-Slot Modular Bay: Accepts two ACX-series extender modules in a single chassis, letting you consolidate two independent KVM extension links into one housing — fewer power connections and a smaller rack footprint than deploying two standalone units.
• Modular Architecture: Blades can be swapped or upgraded independently of the chassis, so you can change extension media (fiber, CATx, etc.) or update a single link without replacing the entire unit — a meaningful operational advantage in production AV-over-IP or secure KVM environments.
• Black Chassis Finish: Standard rack-mount black finish integrates cleanly into mixed-vendor equipment racks and broadcast furniture.

Integration & Compatibility

The ACXMODH2R-R2 is part of Black Box's ACX modular KVM extender line. Confirm module compatibility against Black Box's ACX blade matrix before purchasing — not all ACX blades are cross-compatible across chassis generations. For full KVM extension deployments, pair this chassis with the appropriate KVM extender blades, and review your KVM switch architecture to ensure signal routing aligns with your source and destination endpoints. If you are building out a larger matrix switching environment, consult the video management and signal distribution documentation for your specific ACX blade series.

For deployments requiring more than two extension links in a single chassis, consider a higher-slot-count variant within the Black Box ACX modular family.

Frequently Asked Questions

Q: What is the ACXMODH2R-R2 and what does the -R2 suffix mean?

A: The ACXMODH2R-R2 is a 2-slot modular KVM extender chassis from Black Box's ACX product line. The -R2 suffix denotes a hardware revision update to the original ACXMODH2R chassis. Verify blade compatibility with your existing ACX modules before ordering.

Q: How many modules does the ACXMODH2R-R2 chassis hold?

A: The ACXMODH2R-R2 holds two ACX-series extender modules simultaneously in its two blade slots.

Q: Is the ACXMODH2R-R2 compatible with all Black Box ACX extender blades?

A: The ACXMODH2R-R2 is designed for use within the Black Box ACX modular extender ecosystem. Not all ACX blades are guaranteed cross-compatible across chassis hardware revisions — confirm blade compatibility with Black Box's ACX compatibility matrix before purchasing modules.

Q: Can I expand beyond two slots if my deployment grows?

A: The ACXMODH2R-R2 is a fixed 2-slot chassis. For larger deployments requiring more simultaneous extension links in a single chassis, look to a higher-slot-count variant within the Black Box ACX modular family.

Q: What is the difference between the ACXMODH2R and the ACXMODH2R-R2?

A: The ACXMODH2R-R2 is the revised hardware generation of the ACXMODH2R. The -R2 designation indicates a product refresh. If you are sourcing replacement units for an existing installation, confirm the revision level matches your deployed chassis generation to ensure module interoperability.

Karl Wilson

The ACXMODH2R-R2 is Black Box's 2-slot modular KVM extender chassis — the starting point for integrators who want the operational flexibility of the ACX blade architecture without committing to a larger chassis footprint. Two slots is the right call for satellite control rooms, secondary edit suites, or any location where you're extending just one or two workstation links rather than running a full matrix.

Technical Highlights:

• 2-Slot Blade Capacity: Two independent KVM extension links in one chassis — consolidates power, reduces physical rack depth, and keeps cable runs manageable in tight installations.
• Modular Blade Design: The chassis is the constant; the blades define the extension type (fiber, CATx, or other media). That separation means you can retool a link by swapping a blade rather than replacing infrastructure — useful in environments where extension media or distance requirements evolve.
• -R2 Hardware Revision: The ACXMODH2R-R2 carries Black Box's revision-2 designation, which typically reflects PCB or power delivery refinements. If you're populating an existing ACX chassis installation, match revisions to avoid blade incompatibility edge cases.

Deployment Considerations:

• Always cross-reference your ACX blade part numbers against the Black Box compatibility matrix for this chassis revision before ordering blades — revision mismatches can create subtle interoperability issues that are difficult to diagnose in the field.
• The 2-slot form factor is intentionally compact. If your site plan shows three or more concurrent KVM extension links feeding a single rack location, specify the higher-slot-count ACX chassis from the outset — retrofitting a larger chassis later means remounting and re-cabling all blades.

The ACXMODH2R-R2 fits best in smaller secure operations centers, broadcast satellite positions, and enterprise branch office AV distribution racks where two KVM extension links cover the full local workstation requirement and rack space is at a premium.
