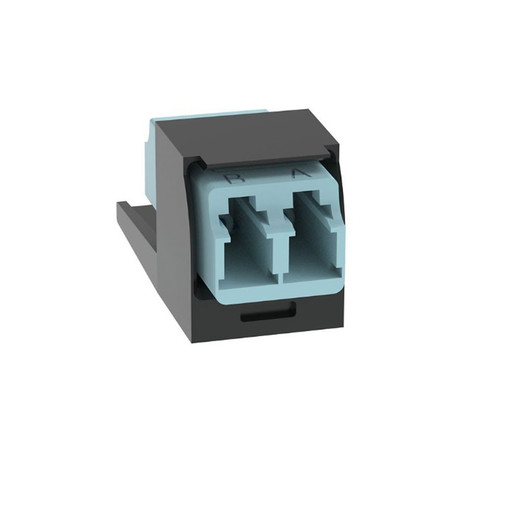

Panduit CMDKIGLCZIW Mini-Com LC Duplex Fiber Optic Adapter
Overview
The Panduit CMDKIGLCZIW is a keyed LC duplex fiber optic adapter designed for use with Panduit's Panduit Mini-Com modular outlet system. It ships as a single-piece module containing one LC (K-IG keyed, international gray) small-form-factor duplex adapter with zirconia ceramic split sleeves — the same sleeve material found in high-density data center and enterprise backbone deployments where insertion-loss consistency over thousands of mating cycles matters. If you're building out fiber optic structured cabling termination points on a Mini-Com platform, this is the field-replaceable adapter module that seats into a Mini-Com faceplate, surface box, or patch panel.
Key Features
- Zirconia Ceramic Split Sleeves: Zirconia ceramic is the industry standard for low-insertion-loss LC mating — harder and more dimensionally stable than phosphor bronze alternatives, which means alignment stays consistent across repeated plug/unplug cycles. This matters in MDA/HDA environments where technicians are patching frequently.
- LC Duplex Connector Interface: LC has become the dominant SFF connector for enterprise fiber. Duplex configuration means a single adapter module handles both the Tx and Rx fibers simultaneously — one module, one installation action, two fiber paths managed. Simplifies faceplate design and reduces the number of discrete parts to stock.
- Keyed K-IG Format: The K-IG (Keyed International Gray) designation indicates this adapter carries physical keying to prevent mismatched mating with non-compatible connector types on the same panel — useful in mixed-connector environments where accidental cross-connection can damage polished ferrule faces.
- Ceramic Housing: The housing material is ceramic, matching the ferrule and sleeve material stack for thermal expansion consistency. In installations with temperature variation — raised-floor data centers, telecom closets without dedicated HVAC — this reduces micro-stress on the fiber interface over time.
- Mini-Com Platform Integration: Designed specifically to drop into Panduit's Mini-Com patch panels, faceplates, and surface-mount boxes. No field modification required. The modular architecture means individual adapter modules can be replaced without disturbing adjacent ports — a real advantage when a single damaged port would otherwise require pulling and replacing an entire panel.
- International Gray Color Coding: International gray (IG) is a recognized color designation for single-mode fiber in some international deployments. Verify your fiber type and color-coding convention before ordering — if your site uses a different color scheme for SM vs. MM differentiation, confirm compatibility with your cable plant documentation.
- Single-Piece Per Pack: Sold individually (1 pc per pack). Quantity purchasing is supported — plan your port count before ordering to consolidate freight.
Integration & Compatibility
The CMDKIGLCZIW is built for the Panduit Mini-Com modular system. It seats into any standard Mini-Com module slot, making it compatible with Panduit's range of 1-, 2-, 4-, and 6-port faceplates, surface-mount boxes, and high-density patch panels that accept Mini-Com modules. This adapter is engineered for LC-terminated fiber patch cords — both single-mode and multimode LC connectors will mate physically, though single-mode and multimode components should not be mixed in the same optical link. Pair with appropriately rated LC fiber patch cords and ensure your transceiver on each end matches the fiber type in use. For structured cabling planning, note that Panduit's Mini-Com platform is designed around field-configurable outlet assemblies, so this module can be added, relocated, or swapped without rewiring the backbone.
Frequently Asked Questions
Q: What fiber types does the CMDKIGLCZIW support — single-mode, multimode, or both?
A: The CMDKIGLCZIW is a passive adapter — it does not have an inherent fiber-type restriction. However, zirconia ceramic split sleeves are used with both SM and MM LC connectors. That said, you should never mix single-mode and multimode components in the same link. The international gray (IG) color designation on this module is associated with single-mode use in some international color-coding conventions. Confirm your fiber type and site color-coding standard before deploying.
Q: Is the CMDKIGLCZIW keyed to prevent cross-mating?
A: Yes. The K-IG designation indicates this is a keyed adapter. Physical keying is designed to prevent incompatible connector types from mating with this adapter on a shared panel, reducing the risk of accidental cross-connection and ferrule damage in mixed-connector environments.
Q: Which Panduit faceplates and panels is the CMDKIGLCZIW compatible with?
A: The CMDKIGLCZIW is designed to install into Panduit Mini-Com modular system components — this includes Mini-Com faceplates, surface-mount boxes, angled patch panels, and flat patch panels that accept standard Mini-Com module slots. It is not designed for other manufacturer's modular outlet platforms.
Q: How many adapters come in a pack of CMDKIGLCZIW?
A: One (1) duplex LC adapter module per pack. The duplex module handles two fiber paths (one LC pair), so one CMDKIGLCZIW fills one Mini-Com module slot and provides a complete Tx/Rx duplex connection point.
Q: What is the housing and sleeve material in the CMDKIGLCZIW?
A: The housing is ceramic and the split sleeve — the critical alignment component — is zirconia ceramic. Zirconia ceramic offers tighter dimensional tolerances and greater hardness than phosphor bronze, supporting consistent low insertion loss across repeated mating cycles.
The CMDKIGLCZIW is the fiber adapter module I reach for when a customer is building or extending a Panduit Mini-Com outlet infrastructure and needs a reliable LC duplex termination point. The zirconia ceramic split sleeve is the spec that actually matters here — it is not a cosmetic difference from phosphor bronze. Ceramic holds tighter bore tolerances, which directly reduces insertion loss variation across the service life of the port. In a high-density backbone where you might be measuring link budgets to the tenth of a dB, that consistency is the difference between a stable link and a marginal one you're chasing with an OTDR at 2am.
Technical Highlights:
- Zirconia Ceramic Split Sleeve: Tighter bore tolerance than phosphor bronze alternatives — supports repeatable low insertion loss across high mating-cycle environments like MDA/HDA cross-connects where ports see frequent re-patching.
- LC Duplex in a Single Mini-Com Module: One CMDKIGLCZIW fills one module slot and delivers a complete duplex (Tx + Rx) LC interface — efficient use of faceplate real estate in workstation outlets and wall-plate applications.
- Keyed K-IG Design: Physical keying on the adapter face prevents accidental cross-connection with incompatible connector types on shared panels — a meaningful protection measure in mixed-media or mixed-fiber environments where connector damage from force-mating is a real risk.
Deployment Considerations:
- This module is platform-specific — it is engineered for Panduit Mini-Com slots only. Confirm your faceplate, surface box, or patch panel is Mini-Com compatible before ordering. Mixing with non-Panduit modular systems will not work without adapter hardware that defeats the purpose of a clean Mini-Com installation.
- The international gray (IG) color designation is not universally standardized across all fiber color-coding schemes. If your site uses TIA-598 color coding or a custom scheme for SM/MM differentiation, verify that IG aligns with your cable plant documentation before you build out a full run of these modules — correcting a color-coding mismatch across 48 ports post-installation is avoidable overhead.
This module is a strong fit for enterprise campuses and data center IDF/MDF buildouts standardized on the Panduit Mini-Com platform where single-mode LC backbone runs terminate at the outlet or patch point. It is not a cost-saving shortcut on generic panels — deploy it where the Mini-Com ecosystem is already the standard and you'll get the full benefit of the modular replace-in-place architecture.
