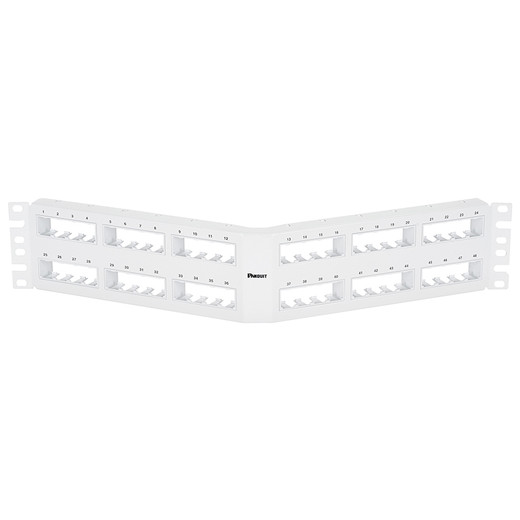

Panduit CPPA48FMWWH 48-Port Flush Mount Angled Modular Patch Panel
Overview
The Panduit CPPA48FMWWH is a 48-port, 2U angled modular patch panel engineered for high-density structured cabling deployments in enterprise data centers, IDF closets, and commercial network rooms. Part of the Panduit Pan-Net™ copper cabling line, it accepts up to 48 Mini-Com™ modules per panel — meaning your choice of jack category, shielding level, or connector type is handled at the module level, not the panel. If your organization standardizes on modular patch panels, this flush-mount angled format gives you the port density of a traditional panel while keeping the face accessible in tightly packed racks.
The angled port orientation is the practical differentiator here. Patch cords route at a natural angle rather than bending sharply toward horizontally oriented ports, which matters when you're running 48 connections in a 2U space and every cord has to clear the cable manager below it. For any structured cabling build where cable management is a primary concern — and in dense deployments it always is — the angled format reduces stress on RJ-45 terminations and makes it easier to trace individual circuits during moves, adds, and changes.
Key Features
- 48 Mini-Com™ Module Ports in 2U: Fits up to 48 modules in a 3.47-inch (88.13 mm) tall, 2U form factor. That's a full copper cross-connect tier in two rack units — useful when you're building out a 48-port switch tier and want one-to-one port mapping without consuming more rack space than necessary.
- Flush Mount Design for 483 mm and 584 mm Racks: The panel mounts flush with the rack face — no overhang — making it compatible with both standard 19-inch (482.6 mm wide) EIA racks and the deeper 584 mm rack formats common in enterprise environments. If you're mixing rack depths across sites, this matters for physical standardization.
- Angled Port Configuration: The face-angled port layout lets patch cords exit at a natural angle rather than routing straight back, which reduces cable stress and keeps cord runs manageable even at full 48-port density. Less cord pressure on the jack means fewer intermittent connection failures over the life of the installation.
- Modular, Unshielded Application: The CPPA48FMWWH is designed for unshielded (UTP) copper applications. Module selection determines the cable category — Cat 5e, Cat 6, or Cat 6A — so you can match the panel to your existing cabling plant or upgrade modules independently without replacing the panel itself.
- CRS Steel Construction: Cold-rolled steel (CRS) body provides the rigidity needed to maintain port alignment across 48 positions without flexing under cable load. In high-density patch environments where cords are pulling at odd angles, panel stiffness directly affects long-term jack seating integrity.
- Adhesive Label Identification: The panel accepts adhesive labels for circuit identification — a practical necessity in any 48-port environment where you need to trace circuits at a glance without pulling documentation. Pair this with a consistent labeling system and you'll cut MAC time significantly in large installations.
- White Finish: The white color distinguishes this panel visually in mixed-rack environments where color coding by application type (voice vs. data vs. security) simplifies administration. It also photographs well for as-built documentation.
- RoHS Compliant: Meets RoHS (Restriction of Hazardous Substances) requirements, which is relevant for deployments in regions with environmental compliance obligations or for organizations with sustainability procurement policies.
Integration & Compatibility
The CPPA48FMWWH is designed around Panduit's Mini-Com™ module ecosystem. The panel itself is category-agnostic — it provides the mechanical housing and port structure; the inserted Mini-Com modules determine the electrical performance tier. This means a single panel SKU can serve a Cat 6 floor today and accept Cat 6A module upgrades later without a panel replacement. The 19-inch width and standard 2U height make it compatible with any EIA-310-compliant rack or enclosure. When specifying rack infrastructure for a new build, this panel integrates directly with Panduit's cable management accessories and horizontal managers, which are designed to align with Mini-Com panel port heights.
The panel ships as a single unit (Package Quantity: 1) and is available in carton quantities of 10 for multi-rack rollouts or campus-wide structured cabling projects where panel consistency across all IDFs is a procurement requirement.
Frequently Asked Questions
Q: What modules are compatible with the CPPA48FMWWH?
A: The CPPA48FMWWH accepts Panduit Mini-Com™ modules. The panel is designed for unshielded (UTP) copper applications, and the specific cable category (Cat 5e, Cat 6, Cat 6A) is determined by the Mini-Com module you insert — not the panel itself.
Q: What rack sizes does the CPPA48FMWWH fit?
A: The panel is 19 inches (482.6 mm) wide and mounts flush in standard EIA 483 mm racks as well as 584 mm enclosures. It occupies 2U (3.47 inches / 88.13 mm) of rack height.
Q: Is the CPPA48FMWWH shielded or unshielded?
A: The CPPA48FMWWH is designed for unshielded (UTP) copper cabling applications. If your installation requires shielded (STP/FTP) infrastructure, a different Panduit panel variant should be specified.
Q: Is the CPPA48FMWWH RoHS compliant?
A: Yes. The CPPA48FMWWH meets RoHS (Restriction of Hazardous Substances) compliance standards.
Q: What is the panel material?
A: The panel body is constructed from CRS (cold-rolled steel), providing the structural rigidity needed to maintain port alignment across all 48 positions under cable load.
Q: Can I order the CPPA48FMWWH in bulk quantities?
A: Yes. The panel ships individually (Package Quantity: 1) and is available in carton quantities of 10, making it practical for multi-rack or campus-scale structured cabling rollouts.
The detail I keep coming back to on the CPPA48FMWWH is the flush-mount angled port design in a 2U form factor. At 48 ports across 3.47 inches of rack space, cable routing discipline isn't optional — and the angled face means you're not fighting a 90-degree bend on every cord while also trying to keep circuits labeled and traceable. That's the real operational argument for specifying this panel over a flat-face alternative in high-density closets.
Technical Highlights:
- Module-agnostic category support: The panel accepts any Mini-Com module, which means your category commitment (Cat 5e through Cat 6A) is made at the module level. You can standardize on one panel SKU across a campus rollout and handle category variation or future upgrades by swapping modules — no panel replacement required.
- Dual rack depth compatibility: At 19 inches (482.6 mm) wide, this panel installs flush in both standard 483 mm and 584 mm rack formats. That's not universal among patch panel SKUs, and it matters if your site mixes rack generations or you're specifying across multiple IDF builds with different enclosure specs.
- CRS steel body at 48-port density: Cold-rolled steel construction means the panel maintains port alignment under full cord load. A flexing panel at 48 ports is a support call waiting to happen — misaligned jacks at positions 40-48 are a classic symptom of under-built panel bodies in high-density runs.
Deployment Considerations:
- This panel is UTP only — verify your cabling plant before specifying. If any segments run shielded (STP/FTP) or if the project spec calls for shielded infrastructure, you need a different Panduit panel variant. Mixing shielded and unshielded on the same panel is not supported.
- The CPPA48FMWWH ships without Mini-Com modules — budget and order modules separately based on your category requirement. A 48-port panel ordered without a corresponding module order will sit empty on the rack, which is a procurement coordination point worth flagging on multi-IDF projects.
This panel is a strong fit for enterprise IDF closets running 48-port switch tiers where one-to-one port mapping, future category flexibility, and clean cord routing under full density are the primary requirements. Less suited for shielded or industrial environments where screened infrastructure is the spec baseline.
