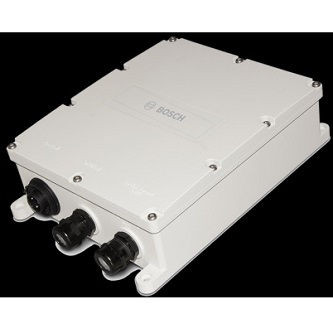

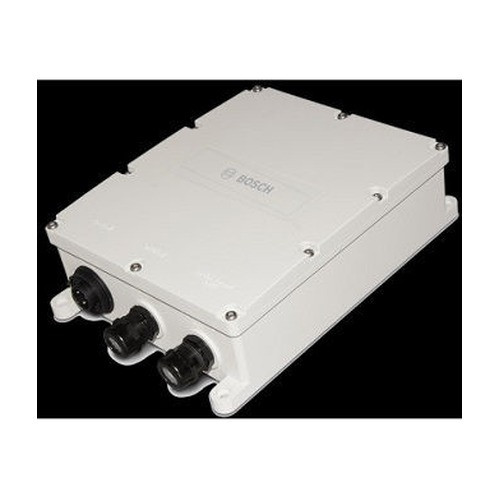

Bosch MIDSPAN SINGLE PORT OUTDOOR 95W AC IN WITH SURGE SUPPRESSION - NPD-9501-E

Bosch NPD-9501-E Outdoor Single-Port 95W PoE Midspan with Surge Suppression

Overview

The Bosch NPD-9501-E is a single-port outdoor PoE midspan injector rated at 95W output — purpose-built for installations where you need to deliver high-wattage PoE to a camera, PTZ, or access control device that sits well beyond your nearest wiring closet. Rated IP67 for full dust exclusion and temporary water immersion, this unit can be mounted directly at the pole or wall without a separate enclosure. If you're running Bosch security cameras or PTZ units that exceed standard PoE+ budgets, the NPD-9501-E is the field-hardened solution to bridge that gap without pulling new power runs.

The 95W output — delivered at 54 VDC — comfortably covers high-draw PTZ cameras, pan-tilt mounts with heaters, and multi-sensor units on a single port. Pair this with your PoE switch infrastructure where a direct high-wattage midspan at the edge makes more sense than running a higher-class switch port to a remote node.

Key Features

• 95W Output at 54 VDC: Enough headroom to drive demanding PTZ cameras with integrated heaters, wiper motors, or IR illuminators — devices that routinely exceed PoE++ Class 8 (90W) budgets under load. A single port, single purpose: no wasted capacity shared across a multi-port strip.
• IP67 Ingress Protection: Full dust-tight and rated for temporary submersion up to 1 meter — not just rain splash. You can mount this unit at the base of a pole in a drainage-prone area or on an exterior wall exposed to pressure washing without adding a separate weatherproof enclosure. That cuts both install time and material cost.
• -40°C to +60°C Operating Range: Operational across the full extremes you'll encounter in northern climates or desert environments. The -40°C floor is particularly relevant for unheated exterior pole mounts in cold-weather regions where standard injectors fail seasonally.
• Surge Suppression Built In: Outdoor PoE runs on long cable runs are real lightning and transient surge targets. Having suppression integrated into the midspan — rather than relying on separate inline surge arrestors — reduces parts count and failure points in the field.
• 100–240 VAC Universal Input: Accepts 50/60 Hz at up to 2.5A input current, so it's compatible with both North American and international power infrastructure without an external transformer. Useful on international deployments or mixed-voltage campuses.
• Wall and Pole Mounting (25mm–203mm Poles): Ships with hardware to mount directly on round poles from 25mm to 203mm diameter, or flat wall surfaces — covering everything from thin conduit masts to standard utility poles. No adapters needed for the most common field configurations.
• EMC Compliance (FCC Part 15, EN 55032 Class B, EN 55024, VCCI): Class B EMC certification means this unit is qualified for use in residential-adjacent environments as well as commercial/industrial sites — relevant when a camera run passes through or terminates near a mixed-use building.
• RoHS, WEEE, CE, UL/cUL Regulatory Compliance: Covers North American (UL/cUL) and European (CE, RoHS, WEEE) markets from a single SKU — simplifies procurement for multi-region projects or integrators maintaining a single stocking unit.
• 2000m Operating Altitude: Certified for high-altitude deployments — relevant for mountain resort security, mining operations, or broadcast/telecom infrastructure where most consumer-grade power equipment isn't rated.
• 95% Non-Condensing Humidity Tolerance: Both operating and storage humidity rated at 95% non-condensing, meaning coastal, tropical, and high-humidity industrial environments won't compromise the unit's electronics over time.

Integration & Compatibility

The NPD-9501-E operates as a pass-through midspan — it injects DC power onto the spare pairs of a standard Ethernet run without altering data traffic. This makes it compatible with any 802.3-compliant switch on the upstream side and any PoE-accepting device on the downstream side, provided the device's power draw stays within 95W. It's a natural fit alongside outdoor IP cameras from Bosch's fixed and PTZ families that require high-wattage delivery in locations far from the MDF or IDF. When planning cable runs, factor in that the NPD-9501-E draws up to 2.5A at 100–240 VAC input — confirm the local circuit can support the load if you're daisy-chaining multiple units on a single breaker. For large outdoor surveillance deployments, review your PoE power planning guide to map wattage budgets before specifying injector counts. The unit's 214mm × 150mm × 70mm footprint and 2.2 kg weight are manageable for single-person pole installation.

Frequently Asked Questions

Q: What is the maximum output wattage of the NPD-9501-E, and what types of cameras or devices does it support?

A: The NPD-9501-E delivers up to 95W at 54 VDC on a single port. This covers high-draw PTZ cameras, pan-tilt units with heaters and wipers, multi-sensor cameras, and other PoE devices that exceed standard PoE+ (30W) or PoE++ (60W or 90W class) budgets. Any PoE-compatible device drawing 95W or under on a single port is supported.

Q: Can the NPD-9501-E be mounted outdoors without an additional enclosure?

A: Yes. The unit carries an IP67 ingress protection rating, meaning it is fully dust-tight and rated for temporary submersion up to 1 meter. It can be mounted directly on an exterior wall or pole in exposed outdoor environments without a separate weatherproof housing.

Q: What pole diameters is the NPD-9501-E compatible with for pole mounting?

A: The NPD-9501-E supports pole mounting on round poles ranging from 25mm to 203mm in diameter, covering standard conduit masts through utility-scale poles. Wall mounting is also supported.

Q: What is the operating temperature range of the NPD-9501-E?

A: The unit operates from -40°C to +60°C (-40°F to +140°F), making it suitable for extreme cold-weather environments such as northern outdoor installations, as well as high-heat environments including desert climates.

Q: Does the NPD-9501-E include surge suppression, and why does that matter for outdoor PoE runs?

A: Yes, surge suppression is integrated directly into the NPD-9501-E. Long outdoor Ethernet cable runs act as antennas for lightning-induced transients and electrical surges. Built-in suppression eliminates the need for separate inline surge arrestors and reduces the number of components that can fail in the field.

Q: What are the regulatory certifications for the NPD-9501-E?

A: The NPD-9501-E holds UL/cUL (North America), CE (Europe), RoHS, WEEE, FCC Part 15, EN 55032 Class B, EN 55024, and VCCI certifications. This covers North American and European deployments from a single SKU.

Karl Wilson

The spec that most integrators underestimate on the NPD-9501-E is the IP67 rating combined with the -40°C floor — this isn't a midspan you drop into a weatherproof box as an afterthought; it's rated for direct pole exposure in the harshest field conditions without any additional enclosure. I've seen projects where specifying a standard indoor injector in a NEMA box added $150–$200 per node in hardware and labor; the NPD-9501-E (often searched as NPD 9501 E) eliminates that cost entirely on outdoor pole runs.

Technical Highlights:

• 95W at 54 VDC Output: Exceeds PoE++ Class 8 (90W) on a single port — enough headroom for PTZ cameras with integrated heaters, wiper motors, or high-draw IR illuminators running simultaneously under full load.
• IP67 + -40°C to +60°C Envelope: Dust-tight, submersion-rated, and operational across 100°C of temperature swing — this is the full outdoor hardening spec, not a partial rating. Storage goes to -40°C / +85°C, so transit and warehousing in cold climates won't damage the unit before it's installed.
• 100–240 VAC Universal Input: Single SKU covers North American and international power at 50/60 Hz — relevant for integrators who stock one part number across multi-region deployments rather than carrying region-specific variants.

Deployment Considerations:

• Pole mounting is rated for 25mm–203mm diameter poles — verify your pole OD before ordering; anything outside that range will require a separate adapter bracket not included with the unit.
• Input draw is up to 2.5A at 100–240 VAC. On a 15A circuit running multiple NPD-9501-E units, plan for no more than 5–6 injectors per breaker to maintain safe headroom — confirm with your AHJ on the install.

The NPD-9501-E is the right specification for perimeter surveillance installations where high-wattage PTZ cameras or pan-tilt units with environmental heaters are pole-mounted at distances that rule out running a separate power circuit — think transportation hubs, ports, large outdoor parking structures, or campus perimeter rings where every pole needs a fully self-contained power injection point.
