Bosch MICRO DOME 2MP HDR 106 3.2MM - NUV-3702-F04-GOV

Bosch NUV-3702-F04-GOV 2MP HDR Micro Dome Camera

Overview

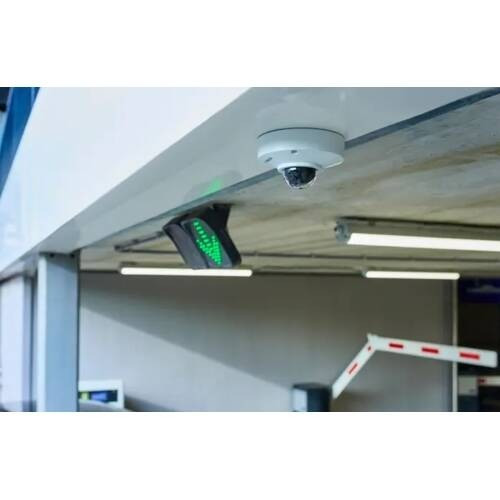

The Bosch NUV-3702-F04-GOV is a compact 1080p indoor micro dome built for commercial and government environments where discretion, compliance, and wide-area coverage matter. The 3.2mm fixed lens delivers a 106° horizontal field of view — broad enough to cover a standard corridor or lobby from a single ceiling drop without a supplemental camera. At 110mm across and 230g, the dome blends into finished ceilings in ways that bulkier housings cannot.

NDAA Section 889 and TAA compliance are verified for this SKU, which matters if you're deploying into a federal facility, government contractor site, or any program that mandates country-of-origin restrictions on surveillance equipment. The NUV-3702-F04-GOV ships with UL, FCC, CE, RCM, VCCI, UKCA, CMIM, and WEEE certifications, covering the full range of commercial and government procurement requirements across North American and international markets.

Key Features

• 1080p HDR Imaging: High Dynamic Range processing keeps faces and license plates readable when your scene mixes bright windows with shadowed hallways — the kind of lighting that causes conventional cameras to blow out highlights or crush shadows. At 1920×1080 native, you get evidence-quality detail without stepping up to 4MP or 5MP storage overhead.
• 106° Horizontal Field of View: The 3.2mm f/1.6 lens covers 106° horizontal and 56° vertical, which translates to roughly 15–18 feet of width at a 10-foot mounting height. That's full-corridor coverage without fisheye distortion. For tighter scene control, the 355° pan, 75° tilt, and 355° roll adjustment range lets you dial in the scene during installation rather than repositioning the mount.
• H.265/HEVC Compression: H.265 cuts storage and bandwidth requirements roughly 40–50% compared to H.264 at equivalent quality. On a 32-channel NVR running 24/7, that's the difference between a 16TB and 8TB drive array for the same retention window. The camera supports H.264, H.265/HEVC, and MJPEG — giving your VMS options depending on recording server capabilities.
• PoE Class 3 Power: The NUV-3702-F04-GOV draws 3.2W typical to 4.5W maximum via IEEE 802.3af/at Type 1 — standard Class 3 PoE. That means any 802.3af-capable switch port will power it without requiring a PoE+ port or budget reallocation. On a 24-port 370W switch, you can run well over 24 of these cameras without hitting the power ceiling.
• IK08 Impact Rating: IK08 means the housing withstands 5 joules of impact — equivalent to a 500g mass dropped from 1 meter. In a retail or transit environment, that matters. This isn't full vandal-resistant IK10, but it handles incidental contact in occupied spaces without needing a separate protective cage.
• ONVIF Profile S, G, T, M: Four ONVIF profiles means compatibility with virtually any modern VMS — Milestone, Genetec, Avigilon, Hanwha Wave, and others. Profile G covers edge recording to the onboard MicroSD slot (up to 2TB via MicroSDXC), Profile T adds H.265 and HDR metadata, and Profile M covers metadata for analytics. You're not locked into Bosch-native software.
• Up to 2TB Edge Storage: MicroSDXC support up to 2TB enables local recording as a redundancy layer when network connectivity drops or as a primary store in bandwidth-constrained deployments. The 32GB MicroSDHC ceiling applies only to lower-capacity SDHC cards — use MicroSDXC for any meaningful retention buffer.
• >55 dB Signal-to-Noise Ratio: A 55dB+ SNR keeps video clean at night without introducing the grainy noise that makes forensic review unreliable. In a government or evidence-grade deployment, cleaner sensor output means usable footage at lower light levels without toggling to maximum gain.
• Variable Frame Rate 1–30 fps: Full 30fps capture for live monitoring and evidence-grade playback. Variable down to 1fps for static scenes where motion bandwidth savings matter — useful in perimeter zones that need coverage but rarely have activity.

Integration & Compatibility

ONVIF conformance across Profile S, G, T, and M covers integration with any major VMS platform on the market. For Bosch security native deployments, the camera slots directly into BVMS and Video Security Client without profile negotiation. The 802.3af/at PoE input works with standard PoE network switches — no midspan injectors or proprietary power required.

Edge recording via MicroSD provides a local buffer for NVR failover scenarios. If your VMS supports ONVIF Profile G, the camera can record locally and sync to the server when connectivity restores — a practical redundancy layer for remote or bandwidth-limited sites. For mounting in finished ceilings, a compatible ceiling mount or junction box adapter sized for the 110mm footprint is recommended.

Explore the full Bosch IP camera line for multi-resolution variants and outdoor-rated siblings in this product family.

Frequently Asked Questions

Q: Is the NUV-3702-F04-GOV NDAA Section 889 compliant?

A: Yes. The NUV-3702-F04-GOV carries verified NDAA compliance, making it eligible for use in federal facilities and government contractor deployments subject to Section 889 procurement restrictions. TAA compliance is also confirmed for this SKU.

Q: What PoE standard does the NUV-3702-F04-GOV require?

A: It uses IEEE 802.3af/at Type 1, Class 3 PoE — drawing 3.2W typical and up to 4.5W maximum. A standard 802.3af PoE switch port is sufficient; no PoE+ (802.3at Type 2) budget is needed.

Q: What is the maximum MicroSD capacity supported?

A: The camera supports MicroSDHC cards up to 32GB and MicroSDXC cards up to 2TB. For any meaningful edge-recording retention, use MicroSDXC.

Q: Which VMS platforms is the NUV-3702-F04-GOV compatible with?

A: The camera supports ONVIF Profile S, G, T, and M, providing broad compatibility with Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wave, and any other ONVIF-compliant VMS. It also integrates natively with Bosch BVMS and Video Security Client.

Q: Does the NUV-3702-F04-GOV have night vision or IR illumination?

A: The available specifications do not confirm built-in IR illumination for this model. The HDR imaging and >55dB SNR are the primary low-light performance features documented for this SKU. Verify with Bosch product documentation if IR is a hard requirement for your deployment.

Q: What is the impact resistance rating of the NUV-3702-F04-GOV?

A: IK08 — rated to withstand 5 joules of impact. This is suitable for commercial indoor environments with incidental contact risk. If the installation site requires full vandal resistance, consider an IK10-rated variant in the Bosch camera family.

Marty Allison

The NUV-3702-F04-GOV is one of the tighter-spec micro domes I've seen come through in the government-compliant category — 110mm housing, 3.2W typical PoE draw, IK08, and both NDAA and TAA checked on a single SKU. That combination is unusual at this price tier, and it's the reason this model keeps showing up on GSA-adjacent procurement lists. The 106° horizontal FOV at f/1.6 means you're getting usable wide-angle coverage without needing to push the sensor hard in lower light.

Technical Highlights:

• 106° FOV / 3.2mm f/1.6 Lens: At a standard 9-foot ceiling height, this covers roughly 14 feet of width — typical single-corridor span — without needing a fisheye correction. The f/1.6 aperture pulls in more light than a typical f/2.0 lens, which matters in lobbies with mixed natural and artificial lighting.
• H.265 + HDR on Class 3 PoE: Getting both H.265 compression and HDR processing at 3.2W–4.5W consumption is efficient. You're reducing storage cost by ~40–50% versus H.264 and handling mixed-lighting scenes without blowout, all without requiring PoE+ switch ports. That's a real BOM savings across a multi-camera deployment.
• ONVIF Profile G + 2TB MicroSDXC: The combination of Profile G conformance and 2TB edge storage means you can configure local recording as a genuine failover layer — not just a buffer. On a government site with network segmentation or intermittent connectivity, that edge capability can be the difference between retained evidence and a gap in coverage.

Deployment Considerations:

• The pan (355°), tilt (75°), and roll (355°) adjustment ranges give installation crews real flexibility when rough-in placement isn't perfect — but this is an indoor-only unit with no listed IP weather rating. Don't place it in unconditioned spaces, loading docks, or any environment where condensation or dust ingress is a risk.
• IK08 handles incidental contact but is not rated for deliberate vandalism. If the mounting location is accessible to the public below 10 feet, assess whether IK10 or a surface-mount cage is warranted before specifying this unit.

The NUV-3702-F04-GOV is the right call for indoor government office buildouts, secured corridors, and commercial spaces where NDAA/TAA compliance is non-negotiable and ceiling aesthetics matter — not for perimeter, parking, or outdoor applications where you need IP weather protection.
