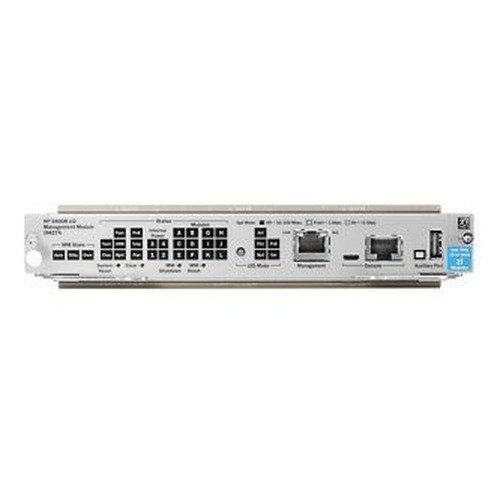

HPE J9827A Management Module for Aruba 5400R zl2 Chassis
Overview
The HPE J9827A is a dedicated management module engineered exclusively for the HPE Aruba 5400R zl2 series chassis — specifically the J9821A (6-slot) and J9822A (10-slot) variants. If you are running one of these modular chassis switches as a campus core or distribution layer device, this module is what gives you out-of-band management access independent of the data plane. That separation matters when you are troubleshooting a forwarding issue or pushing a firmware update and cannot afford to route management traffic through the same fabric you may be working on.
For network architects managing enterprise modular switches at scale, the J9827A eliminates a common operational risk: loss of management access when a line card or uplink fails. Because management traffic rides a dedicated path — not the switching fabric — you retain console and IP-based access to the chassis regardless of data plane state.
Key Features
- Dedicated 1 Gigabit Management Port: The out-of-band Ethernet management interface keeps your management plane entirely separate from production traffic. When a spanning-tree event or VLAN misconfiguration takes down user traffic, you still have full SSH and SNMP access to diagnose and recover — without routing management frames through the affected fabric.
- RJ45 Serial Console Port: The onboard serial console is your last resort when IP connectivity is completely lost. A single RJ45 connection to a terminal server or laptop gives you full CLI access at any point — including during boot sequences, firmware recovery, or catastrophic forwarding failures. For data centers and IDFs without dedicated KVM infrastructure, this port is the difference between a remote fix and a truck roll.
- Auxiliary (AUX) Port: The AUX interface provides an additional out-of-band communication path — useful for modem-based dial-in access in remote or unmanned network closets where IP connectivity cannot be guaranteed. Pair it with a cellular or POTS modem for resilient remote access at branch locations.
- Chassis-Exclusive Design: The J9827A is engineered specifically for the 5400R zl2 platform. It will not seat or operate in earlier 5400 or other zl-generation chassis. Verify your chassis SKU — J9821A or J9822A — before ordering to confirm compatibility.
- 365-Day Manufacturer Warranty: Covered by a standard HPE manufacturer warranty, giving you a defined support window for a module that sits in a critical management path.
Integration & Compatibility
The J9827A integrates into HPE's modular switching ecosystem as a chassis-resident management module. It is compatible exclusively with the HP 5400R zl2 series chassis — the J9821A (6-slot) and J9822A (10-slot). It does not support earlier 5400 zl1-generation chassis, so confirm your hardware revision before specifying this module in a bill of materials.
From a network management and operations standpoint, the dedicated management port integrates with out-of-band management networks, TACACS+/RADIUS authentication infrastructure, and NMS platforms that poll via SNMP. The serial console port connects directly to terminal servers running SSH-to-serial proxy services — a standard configuration in enterprise network operations centers. AUX port connectivity is compatible with industry-standard asynchronous modem configurations for dial-in fallback access.
For organizations building or expanding a campus distribution or core layer around the 5400R zl2 platform, this module should be considered a required line item — not an optional add-on. Out-of-band management access is an operational dependency, not a convenience feature, in any environment where uptime SLAs matter.
Frequently Asked Questions
Q: Which chassis models are compatible with the HPE J9827A?
A: The J9827A is compatible exclusively with the HP 5400R zl2 series chassis: the J9821A (6-slot) and J9822A (10-slot). It is not compatible with earlier 5400 zl or zl1 chassis generations.
Q: What is the warranty period for the J9827A?
A: The J9827A carries a 365-day manufacturer warranty.
Q: Does the J9827A provide in-band or out-of-band management?
A: The J9827A provides out-of-band management. The dedicated 1 Gigabit management port and RJ45 serial console are independent of the switching fabric, so management access is maintained even when data plane traffic is disrupted.
Q: What is the AUX port on the J9827A used for?
A: The AUX port supports asynchronous dial-in access via modem — a fallback management path for remote or unmanned sites where IP-based management connectivity cannot be guaranteed.
Q: Can the J9827A be used in an older HP 5400 chassis (non-zl2)?
A: No. The J9827A is designed exclusively for the 5400R zl2 platform. Verify your chassis SKU is J9821A or J9822A before purchasing.
The J9827A is straightforward to specify once you know the 5400R zl2 platform — the dedicated 1 Gigabit out-of-band management port is the critical detail here. In modular chassis environments, losing management access during a fabric event is a real operational scenario, and having that port on a separate management plane means you are not trying to SSH through the same fabric you are troubleshooting.
Technical Highlights:
- Out-of-Band 1GbE Management Port: Keeps management traffic off the switching fabric entirely — you maintain CLI and SNMP access during data plane outages, spanning-tree reconvergence, or line card failures.
- RJ45 Serial Console: Direct console access independent of IP connectivity — essential for firmware recovery, initial provisioning, and any scenario where the management port itself is unreachable.
- AUX Port for Dial-In Fallback: Supports modem-based out-of-band access — the right answer for remote distribution closets or branch IDFs where sending a technician is measured in hours, not minutes.
Deployment Considerations:
- Confirm chassis SKU before ordering — the J9827A seats only in J9821A and J9822A (5400R zl2). Earlier 5400 zl chassis are not compatible, and this is a common ordering error when replacing or expanding older installations.
- The 365-day warranty window is shorter than HPE's lifetime limited warranty on many other switch components — factor that into your support contract planning for long-running campus core deployments.
This module belongs in every 5400R zl2 deployment where the chassis is functioning as campus core or distribution — specifically in environments where out-of-band network operations center access to remote IDFs is a support requirement, not a nice-to-have.
