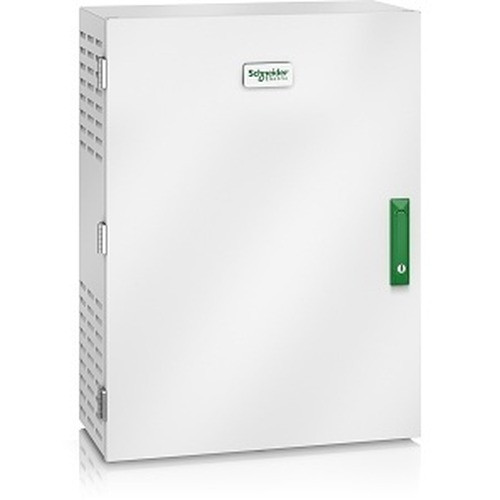

APC by Schneider Electric Maintenance Bypass Panel Single Unit 80-120KW 400V - GVSBPSU80K120H

APC by Schneider Electric GVSBPSU80K120H Maintenance Bypass Panel 80-120kW 400V

Overview

The APC by Schneider Electric GVSBPSU80K120H is a single-unit maintenance bypass panel designed specifically for use with APC Galaxy VS UPS systems rated 80 to 120kW at 400V. A maintenance bypass panel is a non-negotiable component in any mission-critical power installation — it lets facility and power engineers take the UPS offline for scheduled maintenance, firmware updates, or component replacement without dropping power to the connected load. Without it, servicing a 100kW UPS means a planned outage on whatever critical infrastructure it protects. With the GVSBPSU80K120H in the circuit, the load transfers cleanly to bypass while the UPS is worked on. Wall-mount form factor keeps the bypass accessible without occupying additional floor or rack space — relevant in tight electrical rooms and data center edge deployments where every square foot is accounted for. The unit is sized for the Galaxy VS 80-120kW range, so it matches the full upper tier of that UPS family. If your Galaxy VS is rated below 80kW, verify the correct bypass SKU for that power band before ordering — APC sizes bypass panels to match specific UPS power ranges, and mismatching bypasses and UPS units is a common procurement error on large power projects.

Key Features

• 80-120kW Power Range: covers the full upper capacity band of the Galaxy VS family — one SKU handles 80, 100, and 120kW variants, simplifying procurement on multi-UPS deployments.
• 400V System Voltage: matched to the 400V Galaxy VS configurations standard in European and international three-phase commercial and data center installations.
• Wall-Mount Form Factor: installs on the wall adjacent to the UPS rather than requiring a separate floor-standing enclosure, preserving usable floor space in constrained electrical rooms.
• Single-Unit Design: one bypass panel per UPS unit — straightforward to specify and install without parallel switching complexity.
• Galaxy VS Compatibility: engineered and validated for the APC by Schneider Electric Galaxy VS platform, which means the mechanical connections, control interlocks, and switching sequences are designed to work together rather than adapted from a generic bypass.

Integration & Compatibility

The GVSBPSU80K120H is validated for use with APC Galaxy VS 80-120kW UPS systems at 400V. It is not a universal bypass panel — it should only be paired with the Galaxy VS series in the specified power range. For deployments using UPS units outside this range or from a different Galaxy product line, confirm the correct bypass model with APC's power configurator or pre-sales engineering before specifying. Installation should be performed by a qualified electrical contractor familiar with three-phase power systems and APC bypass switching procedures. Consult the Galaxy VS installation documentation for torque specs, cable entry requirements, and control wiring.

Frequently Asked Questions

Q: What UPS systems is the GVSBPSU80K120H compatible with?

A: The GVSBPSU80K120H is designed for use with APC Galaxy VS UPS systems rated 80-120kW at 400V. It is not a universal bypass panel and should not be used with other UPS product lines or power ranges without verification from APC.

Q: Can this bypass panel be used with a 60kW Galaxy VS?

A: No. The GVSBPSU80K120H is rated for the 80-120kW power band. APC produces separate bypass panels for lower-capacity Galaxy VS units. Using a mismatched bypass is a specification error — confirm the correct SKU for your UPS capacity.

Q: How is the GVSBPSU80K120H mounted?

A: The unit is designed for wall-mount installation, which keeps it accessible without requiring additional floor space. Follow APC's installation documentation for clearance and cable entry requirements.

Q: Does the GVSBPSU80K120H support three-phase power?

A: The panel is rated at 400V and designed for the Galaxy VS, which is a three-phase UPS platform. Confirm all wiring requirements with a licensed electrical contractor and APC's installation guide for this model.

Marty Allison

The GVSBPSU80K120H exists to solve one specific problem: how do you maintain a 100kW UPS without cutting power to the load it protects? On Galaxy VS deployments in data centers, healthcare facilities, or industrial control rooms, the answer is this panel. It routes the load to utility bypass while the UPS is de-energized, keeping critical systems running through a maintenance window that would otherwise require a coordinated outage.

Technical Highlights:

• 80-120kW Power Band: one SKU covers three Galaxy VS capacity points — simplifies the spare parts list and procurement process on sites running multiple UPS units at different loads.
• 400V System Matching: the 400V rating aligns with the Galaxy VS three-phase configurations deployed in European-standard and internationally-spec'd commercial facilities, so there's no voltage adaptation or custom wiring.
• Wall-Mount Form Factor: installs on the wall rather than the floor, which matters in electrical rooms where the UPS itself already consumes significant floor area.

Deployment Considerations:

• This panel is not field-adaptable to other UPS families or power ranges — specify it only alongside a confirmed Galaxy VS 80-120kW unit at 400V. Mismatched bypass panels are a real procurement mistake on complex power projects, especially when purchasing through a separate channel from the UPS itself.
• Installation requires a qualified electrician familiar with APC's Galaxy VS switching procedures and three-phase panel wiring — this is not a plug-and-play component.

The GVSBPSU80K120H is the right specification for any Galaxy VS 80-120kW 400V deployment where zero-downtime UPS maintenance is a hard requirement — which, at this power level, it almost always is.
