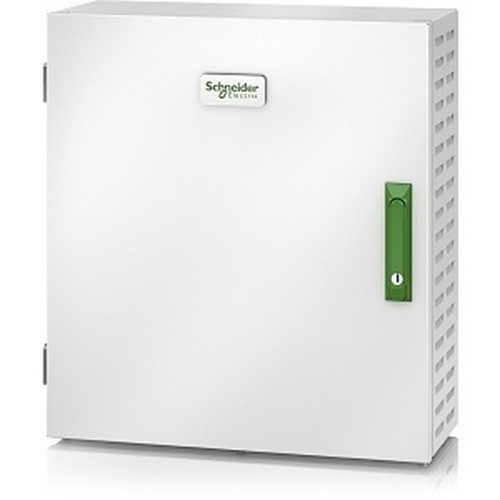

APC by Schneider Electric Maintenance Bypass Panel, Single Unit, 20-60KW 400V Wallmount, FOR Galaxy VS AND
APC by Schneider Electric Maintenance Bypass Panel, Single Unit, 20-60KW 400V Wallmount, FOR Galaxy VS AND
APC by Schneider Electric Maintenance Bypass Panel Single Unit 20-60KW 400V - GVSBPSU20K60H
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric GVSBPSU20K60H Maintenance Bypass Panel

Overview

The APC by Schneider Electric GVSBPSU20K60H is a wall-mount maintenance bypass panel designed for seamless integration with 20-60kW 400V Galaxy VS uninterruptible power systems (UPS). This unit allows for safe isolation of the UPS for servicing or replacement without disrupting connected loads, ensuring continuous operation in critical environments. Its white, commercial-grade enclosure is built for standard rack room installations.

Compatibility

This maintenance bypass panel is specifically engineered for use with the APC Galaxy VS UPS systems in the 20kW, 30kW, 40kW, 50kW, and 60kW power ratings at 400V input/output voltage. It is not compatible with other UPS series or voltage configurations.

Installation Notes

The unit requires wall mounting and supports an input voltage of 400V. Operating temperature range is 0-40°C, with storage temperatures between -25-55°C. The panel dimensions are 550mm width, 220mm depth, and 600mm height. Compliance includes RoHS and REACH certifications.

Expert Analysis
Specifications
Mounting type: Wall-mount
Product colour: White
Input voltage: 400 V
Compliance certificates: RoHS
Certification: REACH
Operating temperature (T-T: 0 - 40 °C
Storage temperature (T-T: -25 - 55 °C
Width: 550 mm
Depth: 220 mm
Height: 600 mm
Weight: 25 kg
Package width: 800 mm
Package depth: 480 mm
Package height: 1200 mm
Package weight: 40 kg
Harmonized System (HS) code: 85079080
