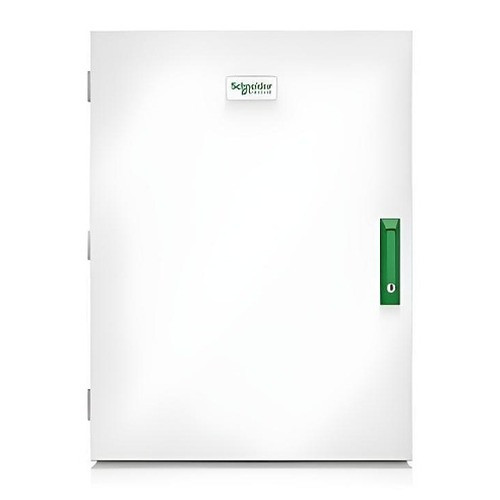

APC by Schneider Electric GVSBPSU150KH Maintenance Bypass Panel

Overview

The APC by Schneider Electric GVSBPSU150KH is a single-unit, wall-mount maintenance bypass panel designed to isolate your Galaxy VS or E UPS system for safe servicing without disrupting critical loads. This panel ensures continuous power delivery to connected equipment during UPS maintenance, battery replacement, or system upgrades. It is engineered for 150KW 400V UPS configurations, providing a robust solution for enterprise data centers and mission-critical facilities requiring high availability.

Compatibility

This bypass panel is specifically designed for use with the following APC by Schneider Electric UPS systems: Galaxy VS and Galaxy E series. Ensure your UPS model is within the 150KW 400V specification range for guaranteed compatibility and safe operation. It is not compatible with other UPS brands or different voltage/power rating models within the APC line.

Installation Notes

The GVSBPSU150KH features a white, wall-mount form factor with dimensions of 600 mm width, 280 mm depth, and 800 mm height. It operates reliably between 0°C and 40°C (32°F to 104°F) and can be stored between -25°C and 55°C (-13°F to 131°F). Relative humidity tolerance is 0-95% non-condensing during both operation and storage. Installation requires adherence to local electrical codes and manufacturer guidelines for secure mounting and proper connection to the UPS and load circuits.
