Description

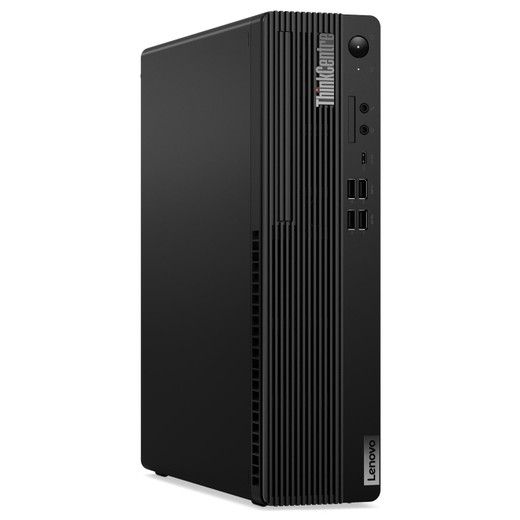

Lenovo 12V40002US ThinkCentre M90s Gen 5 SFF Desktop

Overview

The Lenovo ThinkCentre M90s Gen 5 Small Form Factor (SFF) desktop, model 12V40002US, provides robust performance for demanding business applications. It features an Intel Core i7-14700 vPro processor with Ecores up to 4.20GHz and 33MB cache, paired with 16GB of RAM and a rapid 512GB M.2 2280 PCIe Gen4 TLC Opal SSD. This configuration is designed for environments requiring significant processing power and fast data access, such as video editing workstations, CAD stations, or high-performance surveillance monitoring stations.

Compatibility

This system is pre-configured with Windows 11 Pro 64-bit. It includes Intel UHD Graphics 770 and supports Bluetooth 5.1 or above, along with Intel AX211 vPro wireless networking. The Slim DVD RAMBO drive offers optical media compatibility. Its USB ports provide connectivity for a wide range of peripherals. This model is suitable for integration into enterprise IT infrastructures where Windows 11 Pro and vPro capabilities are standard requirements.

Installation Notes

The 12V40002US comes with a 3-Year Onsite warranty, ensuring support for critical business operations. The SFF chassis is designed for space-constrained environments, offering a compact footprint without compromising on performance. Ensure adequate ventilation when deploying in densely packed server racks or workstations.

What's in the Box

  • 1x Lenovo ThinkCentre M90s Gen 5 SFF Desktop (12V40002US)
  • 1x Slim DVD RAMBO
  • 1x Power Cable
  • 1x Keyboard
  • 1x Mouse
  • 1x Windows 11 Pro 64-bit
  • 1x 3 Year Onsite Warranty Documentation
Specifications
Overview: ThinkCentre M90s Gen 5, Intel Core i714700 vPro Ecores up to 4.20GHz, 33MB, Windows 11 Pro 64, 16.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, Traditional,
Processor: Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 8GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 310W 92%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Country of Origin: Mexico
UNSPSC: 43211508
