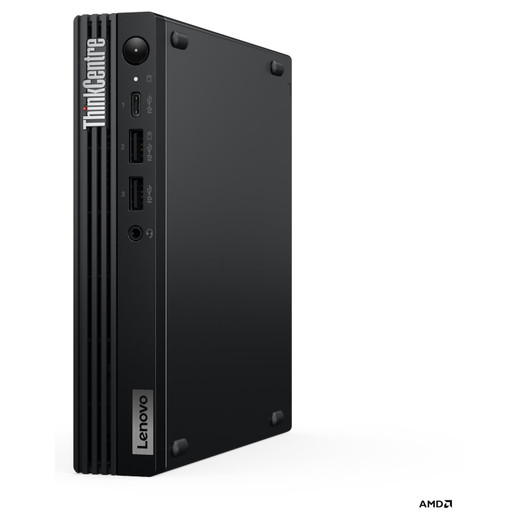

Lenovo 12RQ000MUS M75Q Tiny Gen 5 Mini PC — AMD Ryzen 7 PRO 8700GE, 16GB DDR5, 512GB NVMe
Overview
The Lenovo M75Q Tiny Gen 5 (12RQ000MUS) is a 1-liter form-factor mini PC built around AMD's Ryzen 7 PRO 8700GE — an 8-core, 16-thread processor with a 3.6GHz base and 5.1GHz boost — that fits behind a monitor or inside a server cabinet while delivering workstation-class compute for security workstation roles, VMS client stations, back-office analytics nodes, and edge inference applications. At 2.76 lbs and 7.05 × 7.2 × 1.44 inches, it installs where a full tower physically cannot, yet it doesn't ask you to trade away I/O or expandability to get there.
If you're speccing endpoints for a surveillance workstation deployment or a distributed edge compute rollout, the M75Q Tiny Gen 5 sits in a productive middle band: more compute than a thin client, far less bulk and power draw than a full desktop, and a commercial-grade feature set — TPM 2.0, MIL-STD-810H certification, EPEAT Gold, and a 3-year onsite warranty — that justifies it on a corporate refresh cycle.
Key Features
- AMD Ryzen 7 PRO 8700GE (8C/16T, 3.6–5.1GHz): Eight cores with simultaneous multithreading handle concurrent VMS streams, analytics inference, and OS workloads without contention. The 5.1GHz single-core boost keeps UI response snappy even when background decode is running. The PRO designation adds AMD's enterprise security stack — memory guard, shadow stack, fTPM — relevant for deployments with compliance requirements.
- 16GB DDR5-5200 SO-DIMM, Dual-Channel: DDR5-5200 delivers roughly 50% more memory bandwidth than DDR4-3200 at equivalent capacity. For VMS client software decoding multiple H.265 streams simultaneously, that bandwidth headroom matters more than raw clock speed. Two SO-DIMM slots are populated with a single 16GB stick by default, leaving one slot free to double to 32GB without replacing existing memory.
- 512GB PCIe 4.0×4 NVMe SSD (Opal 2.0): Sequential reads well above 5,000 MB/s mean application launch and OS boot times are fast enough not to be a friction point on a busy shift change. Opal 2.0 self-encrypting drive support lets BitLocker manage hardware-level encryption without the CPU overhead of software encryption — relevant on endpoints storing cached footage or sensitive access logs.
- Integrated AMD Radeon 780M Graphics: The 780M is AMD's RDNA 3 iGPU, capable of hardware-accelerated H.264/H.265/AV1 decode. For a VMS client station displaying 16+ camera grids, offloading decode to the GPU spares the CPU for analytics and OS tasks. It also supports DisplayPort 1.4 and HDMI 2.1 simultaneously for dual-display setups — useful for operator workstations running a camera wall on one display and event management on the other.
- DisplayPort 1.4 + HDMI 2.1 Outputs: HDMI 2.1 supports 4K@120Hz or 8K@30Hz; DP 1.4 handles 4K@144Hz. In practice this means you can drive two high-resolution monitors without a docking station or discrete GPU — a clean install for a security operations desk.
- USB-C 10Gbps (Front) + 4× USB-A 10Gbps: The front-panel USB-C at 10Gbps works for fast external storage or a single-cable docking connection. Combined with four USB-A SuperSpeed ports, you have enough bandwidth to attach multiple peripherals — IP camera USB capture devices, badge readers, biometric scanners — without a hub.
- AMD Wi-Fi 6E (802.11ax) + Bluetooth 5.3: Wi-Fi 6E's 6GHz band sidesteps crowded 2.4/5GHz environments common in dense commercial buildings. For wired deployments, the integrated Gigabit Ethernet handles primary connectivity; Wi-Fi 6E is available for management or out-of-band access without adding a USB adapter.
- MIL-STD-810H Tested: Testing against the military standard covers shock, vibration, humidity, altitude, and temperature extremes. This doesn't mean you should install it in a harsh outdoor enclosure, but it does mean the unit is engineered to handle the physical reality of commercial environments — being moved during refreshes, minor handling stress, and non-datacenter ambient conditions — without the fragility of a consumer mini PC.
- Discrete TPM 2.0 (FIPS 140-2 Certified) + Chassis Intrusion Switch: A discrete TPM — not firmware-emulated — provides a hardware root of trust for BitLocker, Secure Boot, and credential storage. FIPS 140-2 certification matters if your deployment touches federal, healthcare, or financial compliance frameworks. The chassis intrusion switch on the vertical stand logs physical case access, supporting tamper-detection audit trails.
- ENERGY STAR 8.0 / EPEAT Gold / TCO Certified 9.0: The 90W adapter and efficient Ryzen PRO platform keep idle power draw low, which matters in always-on deployments. EPEAT Gold and TCO 9.0 certifications satisfy corporate sustainability procurement requirements without additional verification work.
- 3-Year Onsite Warranty: Onsite service means a technician comes to you — no shipping the unit back, no extended downtime waiting for depot repair. For a deployed security workstation, that's the right service tier: a failed endpoint in a camera operations center gets repaired on-site, on Lenovo's clock.
Integration & Compatibility
The M75Q Tiny Gen 5 ships with Windows 11 Pro, which is the baseline OS requirement for most enterprise VMS platforms — Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet WAVE all install on Win11 Pro without compatibility workarounds. The AMD Radeon 780M has certified driver support under these platforms for GPU-accelerated decode. The AMD PRO 600 chipset supports vPro-equivalent manageability via AMD DASH (listed as None in the base configuration — verify with Lenovo if remote out-of-band management is a hard requirement for your deployment).
Storage is expandable: two M.2 2280 slots support up to 1TB each, so you can add a second NVMe drive for local video cache or application data without replacing the boot drive. The unit also accommodates mini PC mounting accessories including VESA adapters for monitor-back installation — a common approach on operator workstations.
For network integration in larger deployments, pair this unit with a managed PoE switch to handle camera power and data on the same infrastructure while the M75Q handles VMS client or server duties over its Gigabit Ethernet uplink.
Frequently Asked Questions
Q: What is the maximum RAM the Lenovo 12RQ000MUS supports?
A: The standard configuration supports up to 32GB via two SO-DIMM DDR5 slots (2×16GB). Configurations up to 64GB are available on special bids — confirm availability with your account contact if 64GB is a requirement.
Q: Can the 12RQ000MUS run a dual-monitor setup?
A: Yes. The rear panel includes one DisplayPort 1.4 and one HDMI 2.1 output, supporting two simultaneous displays. DP 1.4 handles up to 4K@144Hz; HDMI 2.1 supports 4K@120Hz or 8K@30Hz.
Q: What warranty does the 12RQ000MUS come with?
A: This configuration includes a 3-year onsite warranty, meaning a technician dispatches to your location for repairs — no depot return required.
Q: Is the storage on the 12RQ000MUS upgradeable?
A: Yes. The unit has two M.2 2280 SSD slots, each supporting up to 1TB. The second slot is unpopulated in this configuration, so you can add a second NVMe drive without replacing the existing 512GB boot drive.
Q: Does the 12RQ000MUS pass MIL-STD-810H?
A: Yes. Lenovo has tested this unit against MIL-STD-810H, covering shock, vibration, humidity, altitude, and temperature. This certification applies to the unit's engineering tolerance — it is not rated for outdoor or harsh-environment installation without an appropriate enclosure.
Q: Does this unit include AMD DASH remote management?
A: The base 12RQ000MUS specification lists System Management as None/DASH. If out-of-band remote management is required, verify with Lenovo whether a DASH-enabled configuration is available for this model.
The 12RQ000MUS is the unit I reach for when a deployment needs a compact, always-on endpoint that can handle real VMS workloads without a full tower footprint. The Ryzen 7 PRO 8700GE's 8-core architecture with 5.1GHz boost is the differentiator here — paired with the Radeon 780M's hardware H.265 decode, you can run a 16-camera grid in Milestone or Genetec without pinning the CPU, which keeps the OS and analytics tasks responsive on the same box.
Technical Highlights:
- DDR5-5200 Dual-Channel: At 5,200 MT/s in dual-channel mode, memory bandwidth is rarely the bottleneck for concurrent stream decode — a real-world advantage over DDR4-based mini PCs still in the market.
- PCIe 4.0×4 NVMe + Opal 2.0: Sequential throughput exceeds 5,000 MB/s, and the hardware encryption via Opal 2.0 means BitLocker runs without measurable CPU penalty — important on endpoints that may cache sensitive access control event data.
- Discrete TPM 2.0 (FIPS 140-2): A firmware TPM is software-emulated and vulnerable to certain cold-boot attacks; the discrete chip here is a true hardware root of trust, which matters if your security posture includes endpoint attestation or federal compliance requirements.
Deployment Considerations:
- The second M.2 2280 slot is empty in this configuration — budget for a secondary NVMe if you're using the unit as a local-edge VMS server storing short-term footage, rather than a pure client workstation.
- DASH remote management is listed as 'None' in this SKU's base spec. If your IT team relies on out-of-band management for endpoint fleet control, confirm with Lenovo before purchasing rather than assuming it can be enabled in firmware.
For a security operations center refresh — 4 to 20 operator workstations running a VMS client and a PSIM or access control interface simultaneously — the M75Q Tiny Gen 5 fits cleanly behind dual monitors on a VESA arm, draws a fraction of a tower's power, and carries a 3-year onsite service commitment that keeps your operations team covered without shipping hardware back for depot repair.
