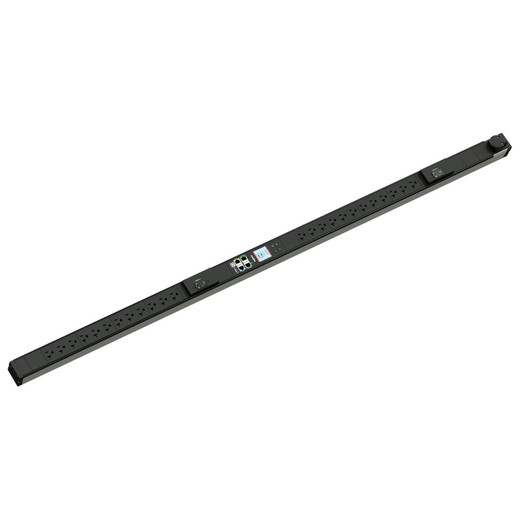

Middle Atlantic LP-41300 0U Vertical Rack PDU 24-Outlet 30A 120V

Overview

The Middle Atlantic LP-41300 is a zero-rack-unit (0U) vertical power distribution unit engineered for high-density rack environments where horizontal rack space is at a premium. Delivering 30 amps at 120 VAC through 24 NEMA 5-20R receptacles, the LP-41300 mounts vertically in the rear channel of standard open-frame and enclosed racks — freeing every horizontal rack unit for active equipment. If you're building out Middle Atlantic rack power infrastructure or expanding an existing deployment, this PDU slots directly into the vertical management space most integrators leave unused. It ships with a 9.84 ft (3 m) corded L5-30P plug — long enough to reach a dedicated 30A circuit without an extension, which matters in equipment rooms where outlet placement is rarely ideal. TAA compliance makes it viable for federal, state, and education projects subject to the Trade Agreements Act. Explore the full range of rack PDUs and power distribution options for your project.

Key Features

• 24x NEMA 5-20R Outlets: Twenty-four individually spaced 5-20R receptacles accommodate standard 5-15P and 5-20P plugs — no adapters needed for most rack equipment. Dense outlet count supports fully populated 42U racks without outlet conflicts.
• 30A / 120 VAC Input: A 30-amp circuit input provides substantial headroom above the NEC 80% continuous-load rule (effective 24A usable), so you can load the PDU to real-world rack densities without nuisance trips. Pair with a dedicated 30A breaker on a 120V circuit.
• L5-30P Twist-Lock Plug: The locking L5-30P plug resists accidental disconnection from a PDU or in-line receptacle — a practical detail in dense wiring environments where cable pulls happen. Verify your power panel or in-row UPS has a matching L5-30R receptacle before ordering.
• 0U Vertical Mounting: At 60.6 in (153.9 cm) tall and only 2 in (5.1 cm) wide and deep, the LP-41300 occupies zero horizontal rack units. It installs in the vertical rear rail channel of compatible Middle Atlantic and standard EIA racks — preserving every U for switches, NVRs, servers, and encoders. See compatible rack accessories for mounting hardware options.
• 9.84 ft (3 m) Cord: The 3-meter cord gives meaningful routing flexibility in equipment rooms where the nearest 30A outlet may not be directly behind the rack. Reduces the need for costly in-wall circuit extensions.
• TAA Compliant: Sourced and manufactured in compliance with the Trade Agreements Act — required for many government, military, and federally funded projects. Confirm project requirements early; TAA status is verified for the LP-41300 SKU.
• Black and Silver Finish: Clean dual-tone finish integrates visually with standard rack equipment. Minor point for most integrators, but relevant in customer-facing server rooms and NOC environments.

Integration & Compatibility

The LP-41300 is designed for standard 19-inch open-frame and enclosed rack cabinets that support vertical PDU mounting in the rear channel. All 24 outlets accept NEMA 5-15P and 5-20P plugs — covering the vast majority of rack-mount equipment including network video recorders, PoE switches, servers, and encoders. The L5-30P input requires a matching L5-30R outlet on the upstream UPS, PDU, or panel — confirm this before installation. This PDU does not include network management, current metering, or outlet switching; if per-outlet monitoring or remote switching is required, evaluate the metered or switched variants in the Middle Atlantic vertical PDU family. For projects requiring UPS battery backup, ensure the upstream UPS carries a 30A L5-30R output and sufficient VA capacity for your total rack load.

Frequently Asked Questions

Q: Is the LP-41300 TAA compliant for government projects?

A: Yes. The LP-41300 is verified TAA compliant, making it eligible for federal, state, and education projects subject to Trade Agreements Act procurement requirements.

Q: What plug type does the LP-41300 require at the source?

A: The LP-41300 uses an L5-30P twist-lock plug and requires a corresponding L5-30R receptacle on your UPS, in-row PDU, or branch circuit panel. Confirm your upstream power source before ordering.

Q: How many outlets does the LP-41300 provide, and what receptacle type?

A: It provides 24 NEMA 5-20R receptacles, which accept both standard 5-15P and 5-20P plugs — no adapters needed for most rack-mount equipment.

Q: Does the LP-41300 include network management or outlet switching?

A: No. The LP-41300 is a basic vertical PDU without metering, monitoring, or outlet switching. If remote management or per-outlet current monitoring is required, evaluate the metered or switched variants in the Middle Atlantic vertical PDU lineup.

Q: What is the usable continuous amperage on the LP-41300?

A: The input is rated 30A at 120 VAC. Per NEC 80% continuous-load guidelines, plan for a maximum of 24A continuous load across all 24 outlets to avoid nuisance circuit trips.

Q: Will the LP-41300 fit in a standard 42U rack?

A: At 60.6 in (153.9 cm) tall, the LP-41300 fits the vertical rear channel of most standard 42U+ open-frame and enclosed racks that support vertical PDU mounting. Verify your specific rack cabinet's vertical PDU channel depth and mounting compatibility.

Karl Wilson

The LP-41300 is the PDU I spec when a rack is fully committed to active equipment and losing even 1U to a horizontal power strip isn't acceptable. The 30A input with 24 NEMA 5-20R outlets is the right math for a fully loaded 42U — you get enough outlets to cover every device without daisy-chaining, and the 30A circuit gives you the headroom to run it at realistic density without sitting at 95% of the breaker limit.

Technical Highlights:

• 30A / 120V Input with 24 Outlets: At 24 outlets on a 30A feed, average per-outlet allocation is 1.25A — plenty for switches, NVRs, and encoders that typically draw 0.5–1.5A each. Run a load calc before commissioning; the NEC 80% rule caps you at 24A continuous.
• 0U Vertical Form Factor (60.6 in): At 2 in × 2 in cross-section and 60.6 in tall, this PDU disappears into the rear vertical channel. No U-space consumed, no front-panel obstruction — the entire rack face stays available for equipment.
• L5-30P Twist-Lock Plug with 3m Cord: The locking plug eliminates accidental disconnection during cable management work — a real failure mode in active racks. The 3-meter cord reaches most floor-level or in-row UPS units without an extension run.

Deployment Considerations:

• Confirm your upstream UPS or panel has an L5-30R receptacle rated for 30A before the rack arrives on-site. This is the single most common installation hold-up on vertical PDU deployments.
• The LP-41300 has no metering or switching capability. If the project requires per-outlet load monitoring or remote reboot, this is not the right SKU — move to a metered or switched variant in the Middle Atlantic lineup instead.

This PDU is well-matched to security operations centers and surveillance head-end racks where every U is allocated to NVRs, managed switches, and video wall controllers — environments where 0U power and 24 outlets at 30A is exactly the right spec, and network-managed PDU overhead is unnecessary cost.
