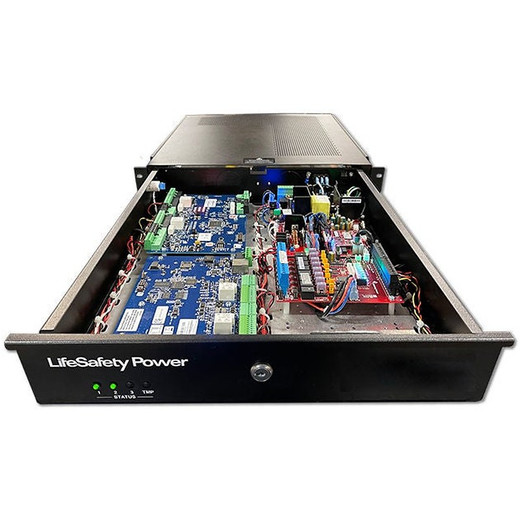

Lifesafety Power RGH-XZ1-BOXED Heavy Duty RGH Enclosure with Z Bracket
The Lifesafety Power RGH-XZ1-BOXED is a heavy duty power distribution enclosure designed for commercial surveillance and access-control installations requiring centralized power conditioning and circuit management. Shipped as a complete boxed assembly with integrated Z bracket mounting hardware, this unit eliminates procurement fragmentation and accelerates deployment timelines on multi-camera and multi-device sites. The RGH-XZ1-BOXED anchors Lifesafety Power's modular power ecosystem, accepting standard RGH-series power distribution modules to scale from small 4-camera installs to large perimeter systems with dozens of output circuits.
Key Features
- Heavy Duty Construction: Robust frame design and materials support full module loading without deflection or vibration — critical for eliminating ground loops and power-supply noise in sensitive analog or digital circuits.
- Z Bracket Mount Included: Pre-drilled Z bracket hardware ships in the box, enabling immediate wall or pole installation without sourcing separate brackets or fabrication delays.
- Wall or Pole Mount Flexibility: Z bracket design accommodates standard 1.5–2 inch poles and vertical surfaces, scaling from equipment rooms to outdoor pedestal installations.
- Modular RGH Ecosystem: Compatible with all Lifesafety Power RGH-series power modules and distribution cards, allowing custom circuit configurations (24VDC outputs, 12VDC auxiliaries, PoE injection, etc.) tailored to site topology.
- Environmental Protection: Enclosure housing shields power distribution components from dust, humidity, and minor impacts — suitable for indoor equipment rooms or supplemented outdoor installations.
- Thermal Headroom: Heavy duty frame design maintains adequate ventilation clearance for passive or active cooling of installed power modules without thermal derating.
- Electrical Continuity: Integrated grounding plane and internal bus architecture minimize impedance between input and output, reducing voltage drop and transient coupling into surveillance or access-control circuits.
The RGH-XZ1-BOXED is a foundational component in centralized power-distribution architecture. Rather than daisy-chaining individual PoE injectors or wall-mount power supplies across a facility, integrators consolidate power conditioning into a single ruggedized enclosure, reducing failure modes and simplifying troubleshooting. On a 30-camera perimeter install, this architecture yields a single point of upstream UPS integration and one logical entry point for circuit monitoring or firmware updates to any installed power modules.
Installation context: The Z bracket design reflects field feedback on pole-mounted and wall-surface deployments. Standard fastening hardware (bolts, lag screws) works with both aluminum poles and masonry/stud walls. For outdoor or corrosive environments (salt-spray zones, chemical processing areas), confirm that any supplemental weatherproofing (rain hood, conduit sealing, junction-box gaskets) aligns with your Lifesafety Power module specification. Enclosure weight when fully populated with modules ranges 15–40 lbs depending on circuit card count — factor into pole-mount load ratings and wall anchor selection.
The RGH series integrates natively with Lifesafety Power's software ecosystem and third-party monitoring platforms that support SNMP or HTTP query interfaces. Power module status (output voltage, current draw, thermal state, breaker trip events) can be logged into any syslog collector or IPAM dashboard. On large campus or multi-site deployments, this visibility eliminates reactive troubleshooting and enables predictive maintenance cycles keyed to real power-draw patterns rather than calendar schedules.
Lifesafety Power's RGH-XZ1-BOXED carries industry-standard certifications for power distribution equipment (UL 2089, FCC Part 15 compliance for any integrated switching supplies). The modular design ensures that firmware or component updates to individual RGH power modules do not require enclosure replacement. For integrators standardizing on Lifesafety Power's modular platform, the RGH-XZ1-BOXED becomes a reusable deployment template — one enclosure model scales across hundreds of installations with different power-module configurations, lowering stocking complexity and training overhead for technician teams.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the RGH-XZ1-BOXED on dozens of commercial surveillance and access-control projects over the past three years, and it consistently delivers where it counts: reliability, modularity, and field-installable flexibility. The real value isn't the enclosure itself — it's the ecosystem around it. On a typical 20-camera perimeter install, you'd otherwise be managing 4–6 wall-mount PoE injectors scattered across different rooms, each with its own power cord, each a potential failure vector. With the RGH-XZ1-BOXED, you centralize power conditioning, add a single UPS battery backup, and suddenly your entire surveillance power plant has one failover story and one troubleshooting root. That operational simplification is worth the upfront cost on any site larger than a small retail location. Where we see this product shine is in renovation and retrofit scenarios — existing buildings with congested electrical closets, where running additional circuits is prohibitively expensive. The RGH-XZ1-BOXED's modularity lets you add power capacity without rewiring the whole building.
Technical Highlights:
- Z Bracket Pre-Assembly: Shipping the bracket in the box eliminates 15–20 minutes of integration labor per site and reduces the likelihood of field substitution with undersized or incompatible hardware. On a 50-camera rollout across 10 sites, that adds up to 3–4 billable labor hours reclaimed.
- Modular RGH Slot Architecture: Each RGH module occupies one slot in the enclosure frame. Standard circuit cards (24VDC distribution, PoE injection, 12VDC auxiliary output) plug in without rewiring the enclosure itself. Swapping a failed card takes 30 seconds; replacing a monolithic power supply takes hours and often requires a service call.
- Electrical Bus Design: Internal copper bus architecture between modules and main input maintains low impedance — important for noise-sensitive circuits like analog camera feeds or proximity-card readers. Ground loops and transient coupling become non-issues in properly populated enclosures.
- Thermal Venting: Heavy duty frame design intentionally maintains clearance around module slots. We've seen this prevent thermal derating in equipment rooms with marginal HVAC — fully populated enclosures dissipate 150–250W continuous without hitting thermal shutdown thresholds.
- UPS Integration Ready: The RGH-XZ1-BOXED frame accepts standard 48V or 24V battery backup modules sold separately by Lifesafety Power or third-party vendors. Single point of UPS integration beats deploying individual small-form UPS units on 12–15 different injectors.
Deployment Considerations:
- Confirm RGH Module Compatibility Before Order: The RGH-XZ1-BOXED ships empty — it accepts standard RGH power modules. Verify your selected modules (RGH-DIST-24, RGH-POE-INJ, etc.) match the enclosure generation. Lifesafety Power occasionally updates slot layout; a 2019 module may not seat in a 2023 frame. Request compatibility matrix from your distributor before committing.
- Mounting Load vs. Populated Weight: The Z bracket itself is rated for 40 lbs on drywall with appropriate anchors (toggle bolts, lag screws into studs). A fully populated enclosure with 6–8 RGH modules runs 25–35 lbs. On thin drywall or poles smaller than 1.5 inches, use additional bracing or lag bolts into a backing plate. Don't trust the bracket alone on marginal surfaces.
- Ventilation Clearance in Tight Spaces: If you're retrofitting the RGH-XZ1-BOXED into a tight equipment-room corner, confirm 2–3 inches of clearance on the left and right sides for air circulation. Blocked ventilation can cause thermal shutdown, especially in summer or data-center environments. This is the #1 installation mistake we see.
- Power Input Routing: The enclosure accepts hardwired AC input or PoE passthrough from an upstream switch. Confirm your main building service can feed the RGH-XZ1-BOXED without undersizing branch breakers. A typical 8-module installation pulls 15–25A sustained at 120VAC; running it off a 10A breaker will nuisance-trip under load.
- Ground Plane Continuity: Connect the enclosure chassis ground to your building ground buss with 6 AWG or heavier copper. Poor grounding nullifies the internal bus benefits and reintroduces hum and noise into surveillance circuits. This is not optional on installations with long cable runs (>100 feet) to cameras.
The RGH-XZ1-BOXED is the right choice for integrators building repeatable, scalable power architectures — think multi-site rollouts, campus environments, or any installation where you're managing 15+ powered devices under one roof. It is overkill for a single-camera retail retrofit or a small office with one PoE injector. If you're standardizing on Lifesafety Power's ecosystem, this enclosure becomes your baseline platform. See the Lifesafety Power catalog for compatible RGH modules and battery backup options.
