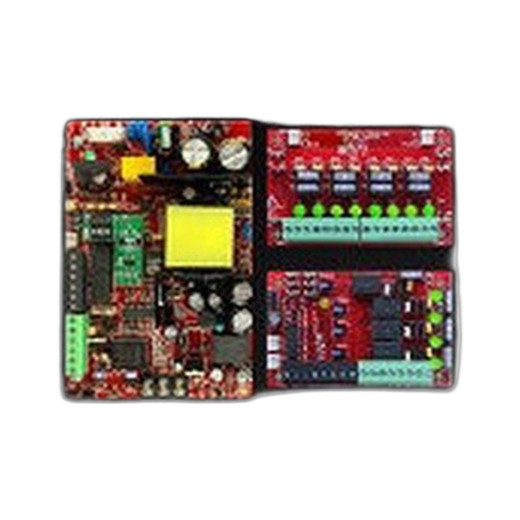

Lifesafety Power FPO75-C4D8E2 Four-Channel Access Control Power Supply
The Lifesafety Power FPO75-C4D8E2 (often searched as FPO75 C4D8E2) is a four-channel, 75W power supply engineered for distributed door-level power in multi-door access control and security installations. It delivers independent 12VDC or 24VDC output per channel—a critical flexibility when your lock hardware, magnetic readers, and auxiliary equipment demand mixed voltages from a single board.
Overview
This is backbone infrastructure. You install the FPO75-C4D8E2 in a 19-inch server rack, wall-mounted utility enclosure, or entrance closet to centralize supervised power for up to four separate access points. Each channel operates independently, so you configure voltage and load per door without compromise. Total capacity is 75W across all four outputs—meaning you can deliver roughly 6A at 12V, or proportionally less at 24V, depending on per-door lock current draw.
Key Features
- Four Independent Channels: Power four separate doors, readers, or auxiliary loads from one supply, reducing cable runs and simplifying supervision logic at the entrance level.
- Selectable Output Voltage per Channel: Configure each door as 12VDC or 24VDC independently. Eliminates the need for multiple single-voltage supplies when your hardware mix requires both—common in retrofits or multi-vendor door systems.
- 75W Total Capacity: Sufficient for typical electromagnetic locks (1–3A each) and reader combinations. Calculate per-door current draw beforehand; oversizing a single door will reduce capacity for the others.
- Compact E2 Enclosure: 20H × 16W × 4.5D inches fits standard 19-inch rack rails or mounts flat to a wall. Small enough for entrance utility closets, large enough to accommodate terminal blocks and service loops without wire bundling nightmares.
- PoE Integration Path: Designed to work alongside or adjacent to PoE switches and IP readers, allowing you to centralize power supervision for both network and door-level equipment in one physical location.
- Supervised Power Distribution: Integrates with door-strike monitoring and lock-status feedback loops typical in access control wiring—supports the reporting requirements of security panels and VMS systems that need to know if a lock is energized.
When Voltage Selection Matters
Many installers default to 24VDC for longer cable runs and lower per-amp voltage drop. However, older solenoid locks and some bargain readers are 12VDC only—and you cannot downconvert 24V safely without adding a separate regulator. The FPO75-C4D8E2 avoids that problem by letting you set each channel independently. If three doors use 24VDC mag locks and one uses a legacy 12VDC reader, provision them all from one supply with no external converters.
Installation Context
Deploy this in conjunction with your access control panel's power distribution module, or as a standalone node when the panel has limited door-level outputs. The E2 enclosure meets basic environmental and EMI containment for indoor cabinet or wall mounting—suitable for server rooms, entrance utility closets, and secured mechanical spaces. Not rated for outdoor or hazardous-location exposure; use only in climate-controlled or covered structures.
Integration & Compatibility
The FPO75-C4D8E2 is part of the Lifesafety Power platform and works with standard door hardware, mag locks, electrified panic bars, and IP-based access readers that accept 12V or 24V supervised power. It does not include built-in PoE power injection; rather, it complements a PoE infrastructure by handling the non-networked power loads at each entry point. If you are standardizing on IP-based door sensors and readers, this supply isolates their 12/24V power rails from the PoE backbone, reducing noise and simplifying troubleshooting.
Frequently Asked Questions
Q: Can I mix 12VDC and 24VDC outputs on the same FPO75-C4D8E2?
A: Yes. Each of the four channels is independently selectable. Set channels 1 and 2 to 24VDC for mag locks and channels 3 and 4 to 12VDC for legacy readers—all from one board.
Q: What happens if I exceed 75W total across all four channels?
A: The supply will throttle or shut down to protect itself. Calculate total current demand before installation: add up all per-door lock and reader amperages and confirm the total stays within 75W (approximately 6A at 12V or 3A at 24V across all channels combined).
Q: Can the FPO75-C4D8E2 be wall-mounted or does it require a rack?
A: It can be mounted either way. The E2 enclosure (20H × 16W × 4.5D inches) fits standard 19-inch rack rails or can be mounted flat to a wall using appropriate hardware—check your installation guide for hole patterns and fastener recommendations.
Q: Does this supply include battery backup?
A: No. The FPO75-C4D8E2 is a straight AC-to-DC power conversion board. If you require battery-backed power for emergency egress or failsafe lock operation, add a separate UPS or battery module downstream.
Q: Is the FPO75-C4D8E2 suitable for outdoor use?
A: No. The E2 enclosure is rated for indoor, climate-controlled environments only. For outdoor or weather-exposed installations, you will need an outdoor-rated enclosure or a different power supply line.
Q: What's the warranty on the FPO75-C4D8E2?
A: Refer to your invoice or contact the supplier for warranty terms. Standard commercial power supplies typically carry a 1–3 year manufacturer warranty; verify with the vendor at time of purchase.
The FPO75-C4D8E2 is a workhorse for access control retrofits where you inherit a mix of lock hardware on the same entrance. Real-world scenario: you have two 24VDC mag locks that eat 2.5A each, a legacy 12VDC solenoid reader pulling 1A, and a 12VDC notification relay. Single-voltage supplies force you to choose—and then add a separate buck converter or second supply. This board lets you configure each channel and move forward. The 75W ceiling is the constraint you must respect; I've seen integrators overload a single supply by not calculating lock inrush current properly, so verify your amperage upfront.
Technical Highlights:
- Four Independent Channels, Selectable Per Channel: Eliminates the need for dual power supplies when integrating 12VDC and 24VDC equipment. Each channel draws from the same 75W pool, so load-balance across doors to avoid starving any single lock.
- 75W Total Capacity (approximately 6A at 12V): Sufficient for four typical electromagnetic lock circuits (1–1.5A each). If your locks or readers pull more than 6A total, you will need a larger supply—the FPO75-C4D8E2 simply cannot deliver it.
- E2 Compact Form Factor (20H × 16W × 4.5D inches): Fits a standard 19-inch rack without eating half your cabinet, and small enough to slip into an entrance utility closet. Wall mounting is possible, but confirm bracket availability—not all installations ship with wall-mount hardware.
Deployment Considerations:
- Plan per-door current draw before ordering. Many mag locks have 800–1500mA inrush on unlock; if you're driving four locks that all spike at once, you risk nuisance shutdown or protection relay lockout. Stagger unlock commands or add a small capacitor bank to smooth transients.
- The FPO75-C4D8E2 is not outdoor-rated. If any of your entry points are under a soffit or partial weather exposure, you'll need an external IP-rated enclosure or a different supply line entirely.
- No built-in battery backup. Emergency egress and failsafe door operation require downstream UPS or rechargeable battery modules—this supply cannot survive a power loss on its own.
Use the FPO75-C4D8E2 in small-to-medium multi-door access control systems where voltage flexibility and compact form factor outweigh the need for larger total capacity or integrated backup power. It's the right choice for controlled-environment entrances (office lobbies, server rooms, secured parking gates) where you need clean, supervised 12/24V power and physical space is tight.
