Lifesafety Power FPO250-D8E1 8 Aux Outputs 20A/12V Or 10A/24V Fus

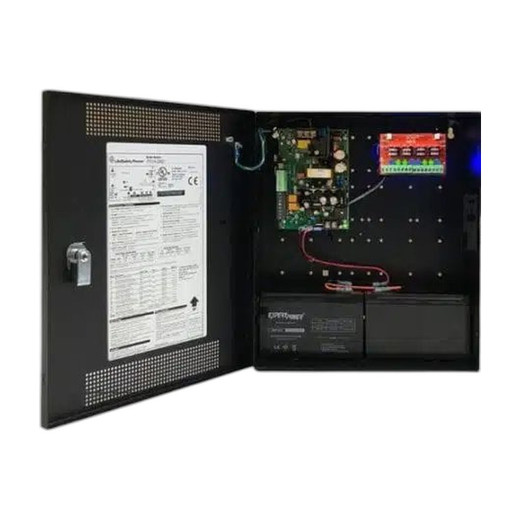

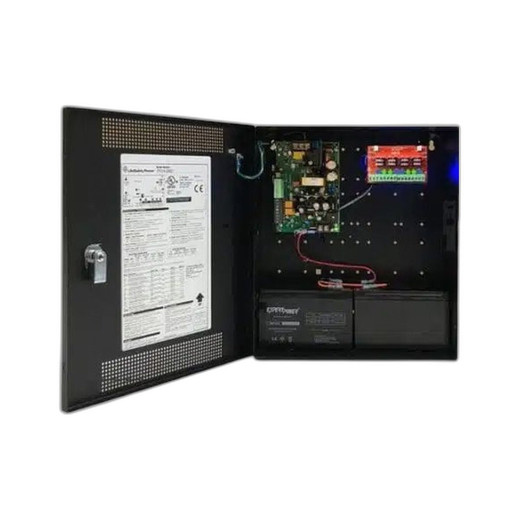

Lifesafety Power FPO250-D8E1 Cabinet Power Supply, 8 Fused Outputs

Overview

The FPO250-D8E1 is a 250W enclosed power supply designed for security system integration in control room and equipment cabinet environments. It delivers either 20A at 12VDC or 10A at 24VDC, split across eight independently fused auxiliary outputs rated at 2.5A each—allowing you to power and protect multiple subsystems (cameras, access readers, locks, lighting) from a single source without running separate circuits to each device. The E1 enclosure provides compact, wall-mountable form factor suitable for standard 19-inch racks or side-by-side cabinet placement.

Compatibility

This supply integrates with security architectures requiring distributed 12V or 24V DC power: IP camera systems, card readers, door locks, and auxiliary control modules. Each output is independently fused, so a fault on one load does not cascade to others. Confirm your total load—eight outputs at 2.5A maximum per output—against your connected device current draw to avoid nuisance fuses.

Installation Notes

Verify input voltage availability (120VAC or 240VAC) at the installation site before ordering. Eight fused outputs require terminal-block or connector termination; use appropriately gauged wire (typically 14–18 AWG for 2.5A circuits). The E1 enclosure allows flush or surface mounting. Plan fuse replacement accessibility—standard blade fuses are field-replaceable but frequent nuisance fusing indicates undersizing for that load.
