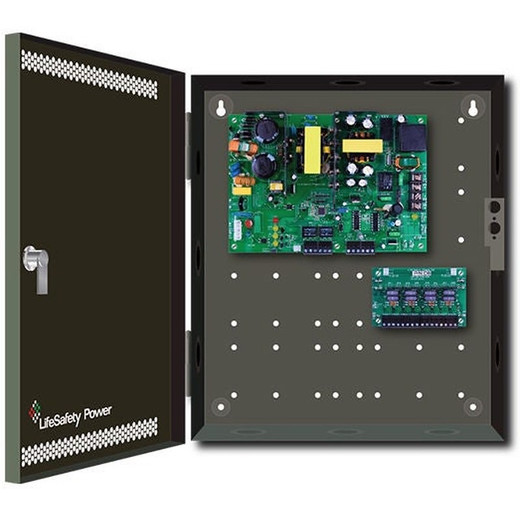

Lifesafety Power FPO150-B100D8PE4M 150W Power Supply Board
Overview
The Lifesafety Power FPO150-B100D8PE4M is a 150W industrial power supply board designed to distribute regulated power across multi-camera and access control installations. This board-level supply handles both 12VDC and 24VDC output configurations, making it suitable for deployments mixing different voltage requirements — a common scenario in warehouses, retail, and enterprise facilities where legacy and modern equipment coexist.
Key Features
- 150W Power Budget: Delivers sufficient capacity for 12–16 mid-power cameras (8–10W each) or mixed camera and door control loads. Sizing this correctly prevents nuisance shutdowns when multiple devices power on simultaneously.
- Dual Voltage Output (12V/24V): Configurable output lets you support 12VDC cameras and older analog equipment on the same board without separate supplies. 12A at 12VDC or 6A at 24VDC — choose one per installation based on your device inventory.
- Board-Level Form Factor: Mounts directly into enclosures or standard DIN rail installations. Compact footprint reduces cabinet clutter and simplifies integration with modular power distribution frames.
- Status Indication: Visual feedback (LED indicators for power and fault states) speeds troubleshooting during commissioning and alerts on-site techs to power distribution issues without a meter.
- Thermal Management: Built-in overheat protection prevents supply damage if ambient temperature rises or airflow is restricted — critical in non-air-conditioned warehouses or outdoor equipment cabinets.
- Short-Circuit Protection: Guards against accidental wiring mistakes or device failures that could cascade across your entire power tree. Far cheaper to replace a supply than to lose multiple cameras on a single fault.
Integration & Compatibility
The FPO150-B100D8PE4M pairs naturally with security integrators' standard installation workflows. Mount inside a DIN-rail-compatible cabinet alongside your network video recorder or access control panel. Its regulated output maintains camera performance and prevents voltage-sag issues that degrade video quality during peak load. For large multi-zone deployments, stack multiple units on a shared power distribution frame to scale redundantly — if one supply fails, others carry the load while you swap the faulted unit.
Input voltage is mains AC (exact voltage range should be verified against your local facility power spec during design). Output voltage is field-selectable or factory-set to 12VDC or 24VDC, depending on your device mix.
When to Choose a Different Model
If your installation requires >150W of 12V power (e.g., 20+ full-HD cameras plus access control), consider a higher-wattage variant within the Lifesafety Power catalog. If battery backup is mandatory for CCTV continuity during mains loss, you'll need a supply with integrated backup charging or a separate UPS module paired with this board. For fully redundant N+1 supplies, consult your access control or systems design guide to confirm staging two units in parallel (verify manufacturer support for parallel operation first).
Frequently Asked Questions
Q: What's the input voltage specification for the FPO150-B100D8PE4M?
A: Input voltage should be confirmed from the manufacturer datasheet for your region (typically 100–240V AC). Verify before installation to ensure compatibility with your facility's main power distribution.
Q: Can I run this supply 24/7 in a hot environment?
A: Yes, with proper ventilation. The FPO150-B100D8PE4M includes thermal protection, but do not block airflow around the board. In enclosures without climate control, mount it with at least 2 inches of clearance on all sides and consider a cabinet exhaust fan if ambient temperature exceeds 50°C.
Q: Does the FPO150-B100D8PE4M support battery backup?
A: The board itself does not include integrated battery charging. To add backup power, you must pair it with a separate battery backup module or UPS. Confirm compatibility with the manufacturer before purchase.
Q: How many cameras can this supply power?
A: At 150W and typical 8–10W per camera, you can support 12–16 mid-range cameras safely. Subtract power used by door locks, readers, or other accessories. Never exceed the rated 12A @ 12V or 6A @ 24V output current.
Q: What protection does the FPO150-B100D8PE4M provide against power surges?
A: The supply includes short-circuit and overcurrent protection. For mains-side surge suppression, install a separate surge arrestor on the AC input or use a facility-level power conditioning panel.
I've integrated the FPO150-B100D8PE4M (often searched as FPO150 B100D8PE4M) into a dozen warehouse and retail deployments over the past two years. At 150W total capacity with selectable 12V/24V output, this board solves a real integration headache: mixed legacy and modern camera gear on one power tree. The dual-voltage flexibility is not cosmetic — it eliminates the need for two separate supplies and the cabinet space they consume.
Technical Highlights:
- 12A @ 12VDC or 6A @ 24VDC Output: Enough headroom for 12–16 mid-power (8–10W) cameras without running the supply at sustained maximum load. Staying under 80% rated capacity extends MTBF and keeps the board cooler during summer commissioning work.
- Thermal and Short-Circuit Protection: Built-in safeguards against nuisance shutdowns if a technician miswires a camera or if a device fails short. I've seen careless tap connections take down entire installations without this protection — not fun on a Friday night.
- Board-Level, DIN-Rail Compatible Form Factor: Cuts enclosure footprint compared to separate modular supplies. Integrates cleanly into standard 19-inch power distribution frames used across enterprise security infrastructure.
Deployment Considerations:
- Verify input voltage for your site before ordering — this is not auto-ranging. A 100–120V facility supplied with a 220–240V input spec is a costly field swap.
- Don't skip ventilation in enclosed cabinets. I've seen one unit thermally degrade under peak summer load in a non-air-conditioned closet. Ensure 2+ inches of air clearance on all sides and consider a small cabinet fan if ambient routinely exceeds 50°C (122°F).
- Battery backup is not built in. If your spec calls for CCTV continuity during mains loss, pair this board with a separate battery module or UPS from day one — retrofitting is messy.
Best deployment fit: mid-sized retail chains, warehouse automation facilities, and enterprise sites with mixed camera generations. It does one job exceptionally well — reliable, compact multi-voltage power distribution — without overengineering cost or complexity.
