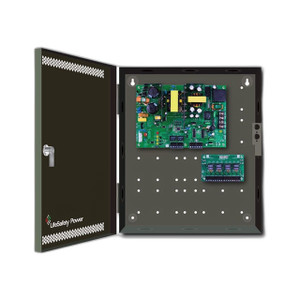

Lifesafety Power FPO150/250-B1002C82D8E12M Dual-Output Power Supply with Relay/Auxiliary Control
Overview
The FPO150/250-B1002C82D8E12M is a configurable AC-input power supply designed for access control and security systems requiring simultaneous 12VDC and 24VDC outputs with integrated relay and auxiliary switching. Select between 150W (12A at 12V or 6A at 24V) or 250W (20A at 12V or 10A at 24V) modes to match your endpoint power budget — critical for deployments mixing different voltage-class access readers, locks, and sensors without requiring separate supply units.
Key Specifications
Output configuration: Eight relay lock control outputs, each fused at 3A and individually selectable for FAI (fail-as-is), failsafe, or failsecure logic — allows independent lock behavior on door groups without external relay modules. Eight auxiliary DC outputs, each fused at 3A and assignable to Bus1 or Bus2, enabling distributed power to badge readers, magnetic locks, or request-to-exit sensors across multiple entry points.
Power delivery: Output voltage and current mode depend on field selection. At 150W, deliver 12A continuous at 12VDC or 6A at 24VDC; at 250W, 20A at 12VDC or 10A at 24VDC — sized to support mixed-voltage access control cabinets where voltage conversion or multiple supplies would add cost and wiring complexity.
Compatibility Notes
Integrates with Lifesafety Power access control cabinets and third-party security management systems using dry relay and 12/24VDC auxiliary inputs. Relay outputs accept standard solenoid-type electric locks, electromagnetic door strikes, and access control modules. Verify your cabinet harness matches the output connector type before installation.
Installation Considerations
Each of the 16 fused outputs (8 relay + 8 auxiliary) requires individual load sizing to stay within 3A per channel. Oversized or shorted circuits will trip channel fuses; pre-calculate total lock and sensor current draw. AC input wiring requires standard power-entry conduit; outputs terminate to terminal blocks or connectors per cabinet design.
