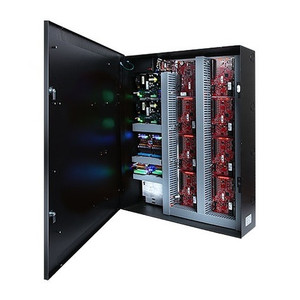

Lifesafety Power FPO150/250-2D8P2M8PNLCE8M2 Managed Power Distribution Supply
Overview
The Lifesafety Power FPO150/250-2D8P2M8PNLCE8M2 is a dual-voltage power supply and managed distribution module designed for medium-scale security installations requiring isolated, supervised Class 2 power-limited circuits. It provides two selectable output configurations: 150W at 12A/12V or 250W at 20A/12V, with equivalent 24V capacity. The eight managed auxiliary outputs each deliver up to 2.5A of Class 2 power-limited current, with individual Bus1/Bus2 selectability — enabling independent supervision and load balancing across multiple circuit branches. This topology isolates powered endpoint groups, reduces fault propagation, and simplifies troubleshooting in larger PoE switch and IP camera deployments.
Compatibility and Integration
The FPO150/250-2D8P2M8PNLCE8M2 serves as a secondary or primary power aggregator in integrated security systems. Each of the 8 managed outputs supports Class 2 power-limited devices — typical for dome cameras, turrets, access control readers, and small infrared illuminators. Bus selectability allows pairing with redundant or load-balanced supervision schemes, making it suitable for installations where a single IP camera feed or accessory branch requires isolation from main distribution. Confirm final device current draw against the 2.5A per-channel limit during design phase.
Dimensions and Enclosure
The E8 form factor measures 36 inches height × 30 inches width × 6.5 inches depth — a standard 1/3-rack-depth footprint suitable for wall-mount or shallow cabinet installation. Confirm mounting surface load rating and clearance for power terminals and DIN-rail accessories before deployment.
