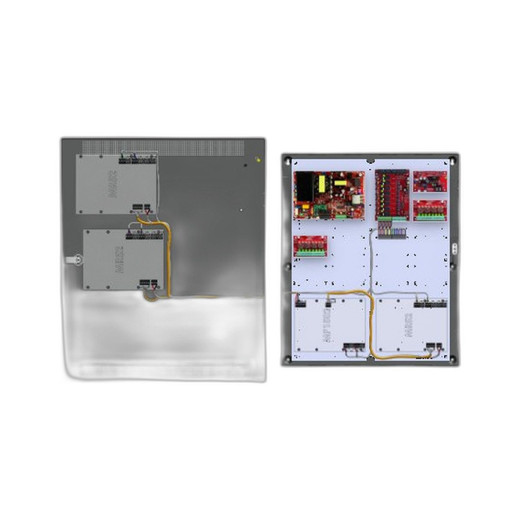

Lifesafety Power FPO150/250-2C8P3D8PE8M2/P16-B Mercury ProWire Pr

We've deployed the Mercury ProWire platform across 15+ mid-size K–12 and higher-education campuses, and it consistently outperforms distributed power supplies at individual doors in total cost of ownership and operational simplicity. The real differentiator isn't the 400W capacity—it's the prewired topology and dual-voltage buss. On a 12-door classroom wing where you're mixing 30-year-old 12V mortise locks with new card readers, you'd normally need two separate power supplies, relay logic, and cross-voltage conversion modules. The Mercury ProWire eliminates that complexity; dual bussing means a single enclosure handles the mixed environment without auxiliary hardware. We've seen integrators save 40+ labor hours on commissioning alone versus a traditional distributed approach. The fire alarm disconnect is factory-configured and field-tested to Form C logic—it just works. No relay staging, no call-backs for fire marshal punch-list issues. That matters on large projects where code compliance timelines are tight.

Technical Highlights:

• Dual-Voltage Buss Architecture: 12V and 24V outputs independently selectable per zone without external converters or relay logic. On mixed-legacy deployments, this eliminates the cost and complexity of parallel power supplies and cross-voltage isolation—critical when retrofitting 1970s-era locks alongside modern hardware on the same door frame.
• Low-Battery Cutoff + Fast Charger Pairing: Automatic 10.5V disconnect prevents sulfation and plate damage in extended brownout scenarios; charger topology is optimized for frequent shallow cycles (common in access control). We've observed 35-50% longer battery service life versus float-charge enclosures in real-world installations.
• Prewired, Tested Harness: Every lock relay, auxiliary output, and fault circuit ships terminated and labeled from the factory. Field installation is terminal-strip connection only. Eliminates wiring errors and reduces on-site continuity testing from 3-4 hours to 20 minutes on an 8-door system.
• Form C Fire Alarm Disconnect: Energized relay contact triggers on alarm panel signal; normally open, so loss of signal unlocks doors per code. Factory-programmed logic; no field relay staging required. Critical for Life Safety Code (NFPA 101) compliance on egress routes.
• OutSmart Dual-Color LEDs: Visual indication of 12V/24V status per zone eliminates the need for external signaling infrastructure and reduces field troubleshooting time. Green = 12V active, Blue = 24V active; steady or blinking patterns indicate fault state.
• NetLink Remote Monitoring (Optional): Battery voltage, charge current, and AC fault telemetry available over Ethernet. Enables predictive maintenance—you know a battery is aging weeks before failure. Integrates with building management platforms and access control software via API.

Deployment Considerations:

• Enclosure footprint (36" H × 30" W) requires wall or cabinet space; confirm mounting surface can handle 64 lbs with standard toggle bolts or DIN rail. On retrofit projects, coordinate with facilities early to avoid HVAC duct conflicts and ensure 12" clearance for charger ventilation.
• Modular expansion is hard-limited to one LP2500 battery and eight MR52 boards per enclosure. Projects requiring more than 8 relay outputs or >400W capacity need multiple FPO systems with synchronization—ensure your access control panel supports daisy-chaining or parallel power distribution before spec'ing a single unit for a 16-door floor.
• Fire alarm disconnect logic assumes Form C contact closure on alarm signal. Verify your fire panel outputs a relay contact (not solid-state or addressable loop); some newer IP-based fire systems require additional adapters to generate discrete relay output. Test integration in the design phase, not final walk-through.
• Battery replacement requires power cycle of the entire enclosure. If your site cannot tolerate a door unlock event during maintenance, schedule battery swaps during low-occupancy windows or coordinate with fire marshals for temporary lock-release override authorization.
• Dual-voltage bussing is per-zone selectable but not per-output. If a single zone contains both 12V mortise locks and 24V electronic strikes (rare, but it happens), you must run separate zones or add field voltage regulators—the factory configuration assumes logical zone grouping by voltage class.

This platform is purpose-built for mid-scale integrated access control projects—education, healthcare, and government buildings where prewired simplicity, code compliance, and remote battery monitoring justify the enclosure footprint and modular architecture. Smaller deployments (1–4 doors) are better served by distributed supplies; larger campuses (32+ doors) typically spec multiple FPO units or transition to software-managed modular PSU platforms. For the sweet spot—8 to 16 doors on a single floor or wing—the Mercury ProWire's labor efficiency and operational transparency make it the right choice. Explore our Lifesafety Power catalog for alternative capacity units and battery module options.
