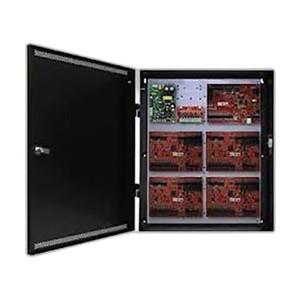

Lifesafety Power E8B1-BOXED Enclosure E8B1 36x30x6.5 black

The E8B1-BOXED is a straightforward metal enclosure that does its job without fuss — it's not the flashy part of an access control system, but it's foundational. We've installed dozens of these across retail chains, office parks, and tenant-build scenarios where Brivo is the control platform and wall space is at a premium. The shallow 6.5-inch depth is the real win here. Too many integrators default to deeper general-purpose electrical enclosures (8–12 inches), which require serious cavity work or add ugly surface-mount bulk to the wall. The E8B1-BOXED splits the difference: compact enough to recesses without creating a structural cavity, large enough that you're not playing Tetris with controller boards and power supplies during commissioning. The 36x30-inch footprint accommodates a full Brivo ecosystem — controller, PoE supply, two reader modules, and a relay card — with genuine slack for cable routing and future module adds. Where we see problems, it's almost always site-specific: insufficient wall anchoring on concrete block (leading to rocking and intermittent loose-connection failures) or underestimating cable bulk when fiber-optic reader runs are involved alongside standard Ethernet. The powder-coat finish holds up in typical indoor commercial environments, but it's not UV-stable outdoors — we've seen sun-exposed installations develop chalking and color fade after 18–24 months.

Technical Highlights:

• Brivo Native Design: Enclosure geometry and DIN-rail configuration are purpose-built for Brivo controller cards and PoE modules. No adapter plates or internal rework required — pull the Brivo kit and it aligns with the backplate cutout. Reduces commissioning labor by a half-day on typical retrofit jobs.
• Dual-Mount Flexibility: Recessed or surface installation without design compromise. Recessed saves wall aesthetic and protects the enclosure from casual contact in high-traffic areas (retail checkout, office entry). Surface mount is faster on concrete or when cavity framing is unavailable. Both mount types preserve internal volume and cable access.
• Shallow Depth (6.5"): Most general-purpose 36x30 enclosures are 8–12 inches deep. The E8B1-BOXED shallow profile means you can recess it into 2x6 framing with standard blocking, avoiding the need for deeper cavity work or unsightly surface extension. Critical in retrofit scenarios where structural modification cost can eclipse the enclosure itself.
• Thermal Headroom: 30-inch height and 6.5-inch depth create internal air volume sufficient for passive cooling of typical Brivo power supplies (24VDC, 10–20A). Door hinges permit circulation; no forced ventilation required in standard indoor commercial environments (72–76°F ambient). Verify ambient temperature if the enclosure is near an HVAC return or in a high-heat space (kitchen, server closet proximity).
• Cable Entry Architecture: Multiple knockouts on bottom and side panels support RJ45 reader drops, 24VDC feeder, and alarm/relay circuits. Use cable glands (1/2" NPT threaded inserts available separately) to avoid sharp-edge damage to conductors and to create a consistent wire-management appearance. Interior space permits 90-degree Ethernet elbows without kink stress.

Deployment Considerations:

• Mounting surface load rating: Enclosure plus typical Brivo equipment weighs 50–70 lbs. On drywall, use toggle bolts or heavy-duty anchors rated for that load; on concrete block, use expansion anchors minimum 1/4-inch diameter. Do not rely solely on top-mount fasteners — use at least four anchor points (top, bottom, left, right) to prevent rocking under cable tension.
• Recessed cavity framing: If recessing into drywall over studs, confirm 2x6 or equivalent blocking behind the mounting surface. A cavity that's too shallow forces surface extension, defeating the compact-depth advantage. Pre-drill all cable penetrations before permanent mounting — retrofitting new knockouts after installation is messy and time-consuming.
• Cable bundle thermal stress: Brivo systems often combine Ethernet reader runs, 24VDC power, and auxiliary alarm relay circuits in the same cable bundle. Keep bundled cable diameter under 0.75 inches inside the enclosure to maintain airflow. Separate high-power 24VDC feeder (if >15A) from low-voltage signal lines to minimize induced noise on reader data.
• Door swing clearance: The hinged door requires approximately 100 degrees of swing for full access to DIN-rail terminals. Confirm wall-mounted obstacles (fire extinguisher, signage, adjacent door frame) don't block the swing radius. On tight-space retrofits, a piano hinge retrofit is possible but adds cost and labor.
• Finish durability in sunlit spaces: The black powder coat is rated for indoor commercial use. West-facing exterior walls or sunlit vestibules will show UV fade and chalking after 18–24 months. If outdoor exposure is likely, specify stainless steel or polycarbonate-gasketed variants instead.
• Future module expansion: The DIN rail can accommodate additional Brivo modules (second controller, expanded reader breakout, battery backup module). Leave at least 2 inches of horizontal DIN-rail space open at time of initial installation to avoid costly rework if the system scales.

The E8B1-BOXED is the right enclosure for integrators and end-users standardizing on Brivo across multiple facilities. It's not a universal control cabinet — don't try to retrofit it with non-Brivo gear or dual-vendor controller architecture; the backplate and cable-entry geometry are purpose-built. For straightforward Brivo deployments (single-door or multi-reader, single-controller systems) in indoor commercial settings, this enclosure eliminates the guesswork and shortens the critical-path installation timeline. Explore the full Lifesafety Power catalog for alternative sizes, finishes, and configurations suited to larger or outdoor-exposed deployments.
