Middle Atlantic LH Cnsl Xtype MED AIR S - LH-XTCMHS

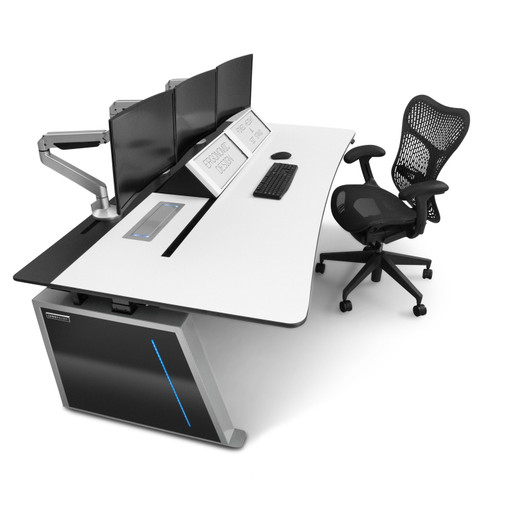

Middle Atlantic LH-XTCMHS X-Type Broadcast Console with Electric Lift

Overview

The Middle Atlantic LH-XTCMHS is a heavy-duty, height-adjustable X-Type broadcast console built for demanding control room and operations center environments where operator ergonomics, rack integration, and dual-monitor support all have to coexist in a single workstation. At 63 inches wide with a 396 lb payload capacity and an electric lift that moves the worksurface from 26 to 47 inches, the LH-XTCMHS is designed for multi-shift SOC, NOC, and broadcast master control deployments — not general office furniture. If you're specifying furniture for a security operations center, broadcast production suite, or 24/7 dispatch environment, this is the product family worth evaluating. Explore the full Middle Atlantic catalog for complementary rack and console solutions.

Key Features

• Electric Height Adjustment (26"–47"): The 21-inch travel range covers sit-stand ergonomics for operators of virtually any height. In a multi-shift control room, this isn't a convenience — it's a compliance and fatigue-reduction requirement. No manual crank, no fixed-height compromise.
• 396 lb Weight Capacity: That's enough headroom to carry dual large-format displays, a 6 RU rack section loaded with broadcast gear, and all associated cabling without approaching the structural limit. Overloading a console in a live broadcast environment is a liability; this rating gives you margin.
• 6 RU Integrated Rack Section: Cage nut rail type means you're working with standard rack hardware — no proprietary fasteners. Mount patch panels, signal processors, KVM switches, or UPS modules directly in the console. For rack enclosure planning, this keeps frequently accessed gear at arm's reach rather than in a distant equipment room.
• Dual Monitor Mounting (2 Displays): Factory-engineered monitor mounting for two displays means no aftermarket VESA adapter guesswork. In a broadcast or security control room, display positioning relative to the operator is a workflow decision — the integrated mount keeps that geometry intentional and stable.
• 63" Width: Wide enough to accommodate two operators side-by-side or one operator with substantial horizontal spread across keyboard, control surfaces, and reference materials. At 160 cm, this console occupies a defined footprint — measure your room before specifying. See our technical furniture category for companion pieces if you're building out a full control room suite.
• 515 lb Unit Weight / Ships Flat: The flat-ship packaging means the console can move through standard doorways and freight elevators before final assembly on-site. At 515 lbs assembled, it is not relocatable without equipment — plan the final position before build-out.
• Black/Silver/Gray Frame with White Worksurface: The two-tone finish is standard for broadcast and SOC environments where a clean, professional aesthetic matters to stakeholders. The white worksurface also improves ambient contrast for operators working with paper documentation or peripheral devices.
• TAA Compliant: The LH-XTCMHS (often searched as LH XTCMHS) carries TAA compliance with UK country of origin under Federal Ops designation — relevant for government, defense, and federally funded projects where Buy American Act and TAA provisions apply to furniture procurement. Confirm your specific contract vehicle requirements before final specification.

Integration and Compatibility

The cage nut rail system in the integrated 6 RU rack section accepts standard 10-32 and 12-24 rack hardware, so any rack-mounted equipment you're already deploying — signal processors, KVM extenders, broadcast routers, access control head-end gear — installs without modification. The console is designed to work within a broader control room furniture layout and pairs naturally with Middle Atlantic's monitor mounting and cable management accessories. For organizations building out a full security or broadcast operations environment, pairing this console with appropriate rack accessories ensures clean cable routing and serviceability. The flat-ship format requires on-site assembly — factor assembly labor into your project schedule.

Frequently Asked Questions

Q: Is the LH-XTCMHS TAA compliant for government procurement?

A: Yes. The LH-XTCMHS is TAA compliant with a Federal Ops country of origin of the United Kingdom, making it eligible for government and federally funded projects subject to TAA provisions. Verify your specific contract vehicle requirements with your contracting officer.

Q: What is the weight capacity of the LH-XTCMHS console?

A: The LH-XTCMHS has a rated weight capacity of 396 lbs (179.6 kg), sufficient for dual large-format monitors, a fully loaded 6 RU rack section, and associated cabling.

Q: How many rack units does the LH-XTCMHS provide?

A: The integrated rack section provides 6 RU using a standard cage nut rail type, compatible with standard 10-32 and 12-24 rack hardware.

Q: What is the height adjustment range on the LH-XTCMHS?

A: The electric lift adjusts the worksurface from 26 to 47 inches — a 21-inch range that covers seated and standing operator positions for most ergonomic configurations.

Q: Does the LH-XTCMHS support dual monitors?

A: Yes. The console includes integrated monitor mounting designed for two displays.

Q: What are the overall dimensions of the LH-XTCMHS?

A: The LH-XTCMHS is 63 inches (160 cm) wide and 39.4 inches (100.1 cm) deep. Height adjusts from 26 to 47 inches via the electric lift. Assembled unit weight is 515 lbs (233.6 kg).

James Everett

The spec I focus on first when evaluating a console like the LH-XTCMHS is that 396 lb weight capacity against the 515 lb unit weight — what that tells you is Middle Atlantic engineered the structure to carry a meaningful operational load, not just the worksurface itself. In a live broadcast master control or 24/7 SOC where the console needs to hold two large displays, a loaded 6 RU rack section, and operator peripherals simultaneously, that payload rating is the number that keeps the installation safe and insurable over a multi-year service life.

Technical Highlights:

• Electric Lift (26"–47" travel): 21 inches of powered height adjustment is substantial — covers the ergonomic range from a 5'2" seated operator to a 6'4" standing one without anyone touching a crank or lever. In a multi-shift environment, operators actually use this feature, which means it has to be reliable over tens of thousands of cycles.
• 6 RU Cage Nut Rack Integration: Standard cage nut rails mean no adapter plates, no proprietary hardware sourcing. Any broadcast, AV, or security rack unit you already specify drops straight in. Six RU is enough for a KVM switch, patch panel, and small signal processor — the gear that has to be at the operator position rather than in the equipment room.
• TAA Compliance (UK Origin): Government and defense control room projects frequently require TAA-compliant furniture. The LH-XTCMHS clears that bar, which eliminates a common late-stage procurement complication on federal or state agency SOC builds.

Deployment Considerations:

• At 515 lbs assembled and 63 inches wide, final positioning must be determined before build-out — this console does not move easily once loaded. Coordinate with facilities on floor loading capacity, especially in upper-floor installations or older buildings.
• The flat-ship format is an advantage for freight and access, but on-site assembly labor is a real project cost. Factor 2–4 hours of skilled assembly time into your installation budget; this is not a drop-and-go delivery.

The LH-XTCMHS is the right specification for a purpose-built, permanent control room position — broadcast master control, enterprise SOC, or public safety dispatch — where operator ergonomics, integrated rack access, and dual-display workflow have to function reliably across multiple shifts for years without revisiting the furniture decision.
