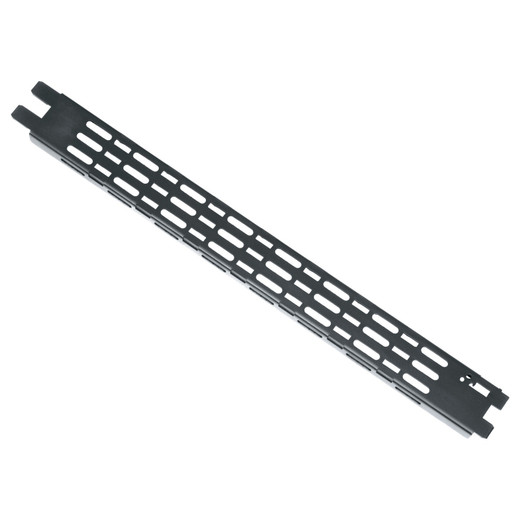

Middle Atlantic Lever Lock Vertical Channel Lace 21in. H 4 pieces - LL-VC21-4

Middle Atlantic LL-VC21-4 Lever Lock Vertical Cable Lace Channel

Overview

The Middle Atlantic LL-VC21-4 is a four-piece set of 17.11-inch steel vertical lace channels designed for structured cable management inside open-frame and enclosed racks. Part of Middle Atlantic's Lever Lock accessory line, these channels let integrators route and dress vertical cable runs without improvised tie-wraps or afterthought cable loops. If you're building a security rack with a dense layer of camera home-runs, NVR connections, and PoE switch uplinks, vertical lacing channels are the difference between a rack that's maintainable in year three and one that requires a full tear-down to trace a single fault.

The LL-VC21-4 (often searched as LL VC21 4) ships as a pack of four, so a single order typically covers both vertical channels on a standard two-post or four-post open rack bay, with spares for high-density vertical sections or a second rack position.

Key Features

• Lever Lock attachment mechanism: Channels snap and lock into position without loose hardware — no dropped screws inside a live rack during installation, and no tools required to reposition a channel if your cable plan changes mid-project. Middle Atlantic calls this out explicitly as an installation time saver, and in practice it eliminates the fumbling that slows down multi-rack builds.
• 17.11-inch working height (43.5 cm): Spans roughly half a standard 42U rack opening, giving you a full vertical lacing zone for mid-rack cable management. For taller cable runs, two channels can be staged in sequence.
• 2-inch channel width (5.1 cm): Wide enough to accommodate bundled camera cable runs, patch leads, and fiber pigtails side by side, but narrow enough to keep the rack footprint clean and leave room for airflow paths on either side.
• Steel construction: Handles the weight of dense cable bundles without flexing or deforming over time — relevant in security racks where dozens of Cat6 home-runs can add up to real lateral load on the lacing channel.
• Four-piece pack: Covers a standard rack bay front-to-back and left-right, or stocks a two-rack deployment from a single order. At 4 lbs shipping weight for the set, logistics overhead is minimal.

Integration & Compatibility

The LL-VC21-4 is designed for use within Middle Atlantic rack systems and accessories. Verify your rack's vertical channel mounting pattern before ordering — Middle Atlantic open-frame and enclosed rack enclosures are the primary target. Consult the rack cable management guide for pairing recommendations with horizontal lacing bars, cable rings, and rack accessories that complete a structured wiring plan. For high-density PoE switch and NVR deployments, combining vertical lace channels with rack power distribution planning ensures cable routes stay accessible for future maintenance.

What's in the Box

• 4x Middle Atlantic LL-VC21-4 lever lock vertical lace channels (17.11 in / 43.5 cm each)

Frequently Asked Questions

Q: How many lace channels are included in the LL-VC21-4 package?

A: The LL-VC21-4 ships as a four-piece set — four individual 17.11-inch steel vertical lace channels per order.

Q: What rack systems is the LL-VC21-4 compatible with?

A: The LL-VC21-4 is designed for Middle Atlantic rack systems. Verify your specific rack model's vertical channel mounting pattern before ordering to confirm fit.

Q: What does the Lever Lock mechanism actually do?

A: Lever Lock is Middle Atlantic's tool-free attachment system. The channel snaps and locks into place without loose screws or nuts, speeding installation and allowing repositioning without disassembling the rack.

Q: What is the working height of each channel?

A: Each channel is 17.11 inches (43.5 cm) tall and 2 inches (5.1 cm) wide — sized to manage vertical cable runs across a mid-rack zone.

Q: What material is the LL-VC21-4 made from?

A: Steel, which handles the sustained load of dense cable bundles without flexing or deforming over the life of the installation.

James Everett

The LL-VC21-4 is the kind of component that doesn't get specified until someone inherits a messy rack and spends two hours tracing a single cable fault. At 17.11 inches per channel and four pieces per pack, this set gives you the vertical structure to keep camera home-runs, switch uplinks, and NVR patch cables in defined lanes from day one — which matters when you're commissioning a rack with 30-plus cable entries and need every run identifiable at a glance.

Technical Highlights:

• Lever Lock attachment: Snap-fit, no-tool installation means you can reposition a channel mid-build without hunting for a screwdriver or dropping hardware into a live rack — a real time saver on multi-rack security deployments.
• Steel construction at 2-inch width: Handles the accumulated weight of dense Cat6 bundles without deflecting; the 2-inch opening accommodates mixed cable types (copper, fiber, power) side by side without crowding.
• Four-piece pack, 4 lbs shipped: One order covers a standard rack bay fully — both vertical columns — with two channels remaining for a second position or high-density mid-rack zone.

Deployment Considerations:

• Confirm your Middle Atlantic rack model accepts the Lever Lock vertical channel mounting pattern before ordering — not all Middle Atlantic enclosures share the same attachment rail spec.
• At 17.11 inches per channel, a single piece does not span a full 42U rack height; plan for staged channels or combine with horizontal lacing bars for full-height cable management.

Best fit for security integrators building structured Middle Atlantic racks with dense PoE camera home-runs and NVR patch fields — anywhere a maintainable, labeled cable plant is a project requirement rather than an afterthought.
