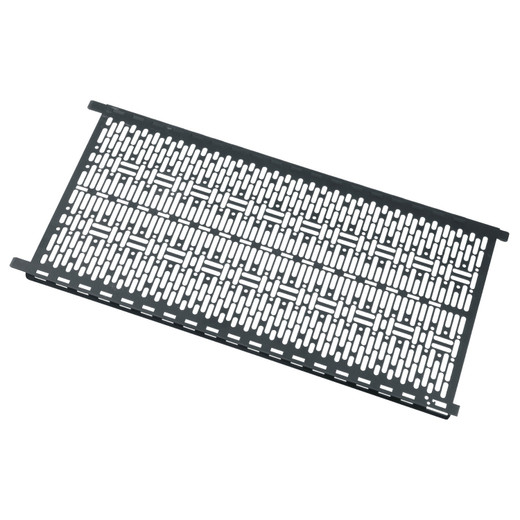

Middle Atlantic LL-VP1710 Vertical Accessory Mounting Plate
Overview
The Middle Atlantic LL-VP1710 is a 17-inch high, 10-inch deep vertical accessory mounting plate constructed from steel. It's designed to optimize space utilization within network or AV racks by allowing you to mount equipment like network switches, patch panels, or small form-factor servers vertically. This approach is particularly useful in depth-constrained enclosures where traditional horizontal mounting is not feasible or efficient. The LL-VP1710 leverages Middle Atlantic's Lever Lock system, incorporating features intended to reduce installation time.
Compatibility
This mounting plate is designed for use with Middle Atlantic's Lever Lock system. It is compatible with any standard 19-inch rack enclosure that supports vertical accessory mounting and accommodates the plate's 10-inch depth. Specific compatibility extends to other Middle Atlantic rack systems and accessories that utilize the Lever Lock mechanism for quick component attachment and removal. It is suitable for mounting a wide range of small networking and AV devices that do not exceed the plate's dimensions or weight capacity.
Installation Notes
The LL-VP1710 features 'Installation Time Savers' inherent to the Lever Lock system, which typically involves tool-less or minimal-tool attachment of accessories to the plate, and the plate's attachment to rack rails. The steel construction provides a rigid platform for mounted equipment. Ensure rack rails are properly spaced to accommodate the 10-inch depth of the plate and any mounted devices. Standard rack mounting hardware (not included) may be required for securing the plate to the rack rails.
