Lenovo 83F0001QUS Legion 5 15IAX10 Intel Core Ultra 7 255HX Ecores Up to 4.50GHZ 30MB 15.1 Wqxga

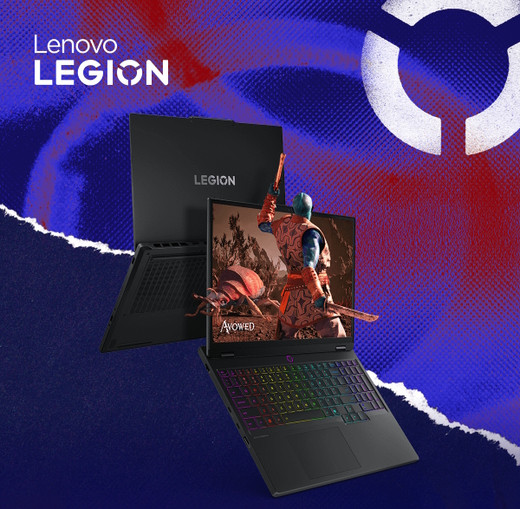

Lenovo 83F0001QUS Legion 5 15.1" Gaming and Professional Laptop

Overview

The Lenovo Legion 5 83F0001QUS is a 15.1-inch clamshell laptop built around Intel's Core Ultra 7 255HX processor and an NVIDIA GeForce RTX 5060 8GB GPU — a configuration that handles both GPU-accelerated workstation tasks and high-refresh gaming on a single device. The 15.1" OLED panel running at 165Hz and 2560x1600 (WQXGA, 16:10) delivers sharper vertical content area than the standard 1080p 16:9 form factor, which matters for engineers and analysts working across split panes or reviewing dense security footage in a VMS client. At 7.20 lb and 20.40 x 13.10 x 3.40 inches, this is a full-power portable workstation — not ultrabook territory, but carries the GPU headroom that many field-deployable security and automation workloads actually need.

Key Features

• Intel Core Ultra 7 255HX Processor: The 255HX is a high-performance H-series chip with efficiency cores scaling to 4.50GHz and a 30MB cache — sufficient headroom for concurrent VMS decoding, AI-assisted analytics review, and virtualization side-by-side without thread contention. The "HX" designation means desktop-class core counts in a mobile chassis.
• NVIDIA GeForce RTX 5060 8GB GDDR7: The RTX 5060 brings dedicated GPU compute that accelerates hardware-decoded video streams in NVIDIA-compatible VMS platforms, as well as CUDA-based analytics inference workloads. 8GB VRAM handles multi-stream 4K decode sessions that would stall a CPU-only approach.
• 15.1" OLED WQXGA Display at 165Hz: 2560x1600 on a 15.1" panel gives you roughly 200 ppi — fine enough that individual pixels don't resolve at normal viewing distance. The OLED panel type means true blacks and per-pixel illumination control, which translates to better differentiation of dark-area detail in surveillance footage. The 165Hz refresh eliminates blur during rapid camera pan review. The 500 cd/m² brightness handles moderately lit environments; the glossy surface is a tradeoff worth noting in high-ambient-light deployment locations.
• 100% DCI-P3 Color Gamut: Full DCI-P3 coverage isn't just for creative work — it means color-critical forensic review and anomaly detection in thermal or color-calibrated analytics outputs render accurately. You're not second-guessing whether a color shift is display drift or a real scene event.
• 16GB RAM + 1TB PCIe Gen4 TLC M.2 SSD: 16GB supports concurrent VMS client, browser-based management consoles, and background services without paging. The PCIe Gen4 SSD delivers the sequential read speed needed for fast local playback of high-bitrate recorded footage — no buffering lag when scrubbing through 4K multi-channel recordings.
• WiFi 7 (2x2 BE) + Bluetooth 5.4: WiFi 7 support means this device is ready for 6GHz band deployment in environments with dense AP infrastructure — relevant for warehouse automation and large-campus security integrations where WiFi 6E/7 APs are already in place. BT 5.4 covers current-generation BLE peripherals.
• 5MP Webcam: The integrated 5MP front camera supports high-quality video conferencing and remote commissioning sessions — a meaningful upgrade over the 1080p/2MP cameras found in most business laptops.
• Windows 11 Pro 64-bit: Win 11 Pro includes BitLocker encryption, Hyper-V virtualization, and enterprise domain join — standard requirements for devices deployed in regulated security operations or enterprise IT environments.
• PCIe + Ethernet Interfaces: Wired Ethernet remains the reliable path for on-site commissioning, firmware updates, and high-bandwidth NVR management tasks where WiFi variability is unacceptable. PCIe interface on the M.2 slot confirms the storage path is native NVMe, not a SATA adapter.
• Eclipse Black ABS/Aluminum/Polycarbonate Build: The mixed-material chassis (ABS + aluminum + PC) balances rigidity with weight. At 7.20 lb, this is heavier than thin-and-light competitors — acceptable when the tradeoff is a full-voltage RTX 5060 rather than a throttled mobile variant.

Integration & Compatibility

The 83F0001QUS ships with Windows 11 Pro 64-bit, which provides out-of-the-box compatibility with the majority of enterprise VMS clients (Milestone XProtect, Genetec Security Center, Avigilon Control Center, and others) that publish Windows-native installers. The RTX 5060 supports NVENC/NVDEC hardware codec acceleration, which most major VMS platforms can leverage for GPU-offloaded stream decoding — reducing CPU load when monitoring large camera counts. WiFi 7 requires a compatible access point to operate at full throughput; in standard WiFi 6 or 5 environments it falls back gracefully. The PCIe Gen4 M.2 2242 slot form factor is a shorter-than-standard 2242 footprint — relevant if you are evaluating secondary storage expansion, as 2242-length M.2 drives are less common than 2280 variants. Verify drive availability before specifying storage upgrades. This laptop is not listed as NDAA Section 889 compliant based on available evidence; verify directly with Lenovo for compliance requirements in federal or government-adjacent deployments.

Frequently Asked Questions

Q: What operating system does the Lenovo 83F0001QUS ship with?

A: The 83F0001QUS ships with Windows 11 Pro 64-bit (English), making it ready for enterprise domain join, BitLocker encryption, and Hyper-V virtualization without additional licensing.

Q: What is the display resolution and panel type on the 83F0001QUS?

A: The display is a 15.1" OLED panel running at 2560x1600 (WQXGA, 16:10 aspect ratio) with a maximum refresh rate of 165Hz and 500 cd/m² brightness. The panel covers 100% of the DCI-P3 color gamut with a glossy surface finish.

Q: Does the Lenovo Legion 5 83F0001QUS support wired Ethernet?

A: Yes. The 83F0001QUS includes an Ethernet interface alongside WiFi 7 (2x2 BE), so you can connect directly to a wired network for on-site commissioning, firmware updates, or high-bandwidth NVR management tasks where wireless reliability is not acceptable.

Q: What GPU does the 83F0001QUS include, and does it support hardware video decode?

A: The 83F0001QUS includes an NVIDIA GeForce RTX 5060 with 8GB of dedicated VRAM. NVIDIA RTX-series GPUs support NVENC/NVDEC hardware codec acceleration, which compatible VMS platforms can use to offload multi-stream video decode from the CPU.

Q: What is the M.2 SSD form factor in the 83F0001QUS?

A: The installed SSD uses an M.2 2242 form factor (42mm length) with a PCIe Gen4 TLC interface. Note that 2242-length M.2 drives are less commonly stocked than the standard 2280 form factor — verify drive availability before planning storage upgrades.

Q: What does the 83F0001QUS weigh, and what are its dimensions?

A: The 83F0001QUS weighs 7.20 lb and measures 20.40 x 13.10 x 3.40 inches (L x W x H). This is a full-power portable workstation — heavier than ultrabooks, but the tradeoff is a full-voltage discrete GPU and large-format OLED display.

James Everett

The 83F0001QUS is the first Lenovo Legion 5 I'd genuinely recommend for field security integration work — the combination of a 165Hz OLED panel at 2560x1600 and the RTX 5060 8GB makes it practical as a primary workstation for VMS commissioning, not just a travel laptop you tolerate. The 100% DCI-P3 display means what you see in your VMS client during camera tuning actually reflects what the camera is capturing, which matters when you're calibrating analytics zones or reviewing forensic exports on-site.

Technical Highlights:

• RTX 5060 8GB VRAM: 8GB of dedicated VRAM lets you run GPU-accelerated multi-stream decode in NVIDIA-compatible VMS platforms without exhausting the frame buffer — a real constraint on 4GB cards when monitoring 16+ channels at high resolution.
• PCIe Gen4 M.2 SSD: Gen4 sequential read speeds eliminate the playback stuttering you get on slower storage when scrubbing through high-bitrate multi-camera recordings — no artificial bottleneck between the GPU and local storage.
• WiFi 7 (2x2 BE) + Ethernet: Having both WiFi 7 and wired Ethernet means you're not forced to choose between mobility and reliability on-site. Wire in for NVR config and firmware pushes; switch to WiFi 7 when you need to move around the installation floor.

Deployment Considerations:

• The M.2 2242 SSD form factor is shorter than the common 2280 standard — if a customer asks about storage expansion later, source 2242-length NVMe drives specifically, or confirm whether an adapter bracket is available for this chassis.
• At 7.20 lb and a glossy OLED display, this is not optimized for outdoor field work in direct sunlight — 500 cd/m² is adequate indoors and in shaded environments but will wash out in bright outdoor conditions.

Best fit for a lead integrator or systems engineer who needs a single device that handles VMS client work, high-resolution footage review, and occasional GPU-accelerated analytics testing — without carrying a separate desktop to the job site.
