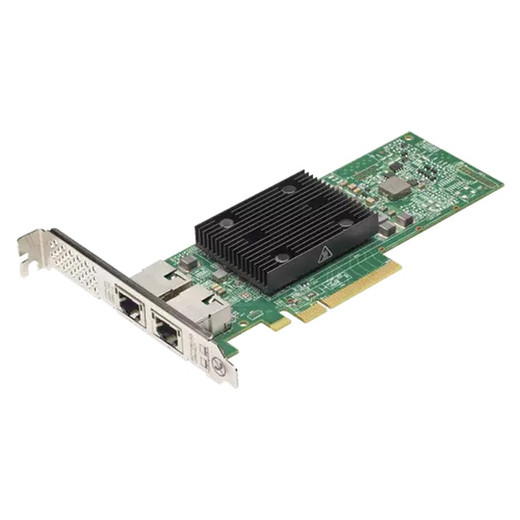

Lenovo 7ZT7A00496 THINKSYSTEM BROADCOM NX-E PCIE 10GB 2-PORT BASE-T ETHERNET ADAPTER
Lenovo 7ZT7A00496 THINKSYSTEM BROADCOM NX-E PCIE 10GB 2-PORT BASE-T ETHERNET ADAPTER
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Lenovo 7ZT7A00496 10GbE Ethernet Adapter

Overview

The Lenovo 7ZT7A00496 is a dual-port 10 Gigabit Ethernet adapter designed for ThinkSystem servers. It provides high-speed wired connectivity, enabling faster data transfer for demanding applications like video surveillance recording, large file transfers, and high-performance computing. This internal adapter utilizes a PCIe interface for direct integration into compatible server motherboards, ensuring a stable and high-bandwidth connection.

Compatibility

This adapter is compatible with Lenovo ThinkSystem servers. Specific compatibility should be verified against your server model's documentation, but it is generally designed for systems supporting standard PCIe Gen3 or higher interfaces for optimal 10GbE performance.

Installation Notes

The adapter requires a standard PCIe x4, x8, or x16 slot. Ensure the server has adequate airflow and power to support the additional component. Maximum operating distance for 10GBase-T connections is 100 meters using Cat6a or higher cabling. The adapter supports Jumbo frames and iSCSI, which can improve network performance for specific workloads, but require configuration on both the adapter and network switch.

Expert Analysis
Specifications
Weight: 0.60 lb
Dimensions: 9.50 x 6.00 x 2.00 in (L x W x H)
Country Origin: MX
Interface: PCIe, Ethernet
Country Of Origin: MX
Unspsc Code: 43201404
Connectivity technology: Wired
Host interface: PCI Express
Ethernet LAN (RJ-45) ports: 2
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3ab, IEEE 802.3an
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Cabling technology: 10GBase-T
Jumbo frames support: Yes
iSCSI support: Yes
Maximum operating distance: 100 m
Product colour: Black, Green
Internal: Yes
Storage temperature (T-T: -40 - 65 °C
Operating relative humidity (H-H: 5 - 95%
Storage relative humidity (H-H: 5 - 95%
Width: 69 mm
Depth: 168 mm
Q&A
Reviews
Product Video
Have Questions?

Lenovo 7ZT7A00496 Thinksystem Broadcom Nx-e PCIE 10GB 2-PORT Base-t Ethernet Adapter

$929.00
$928.99
Add to Cart
