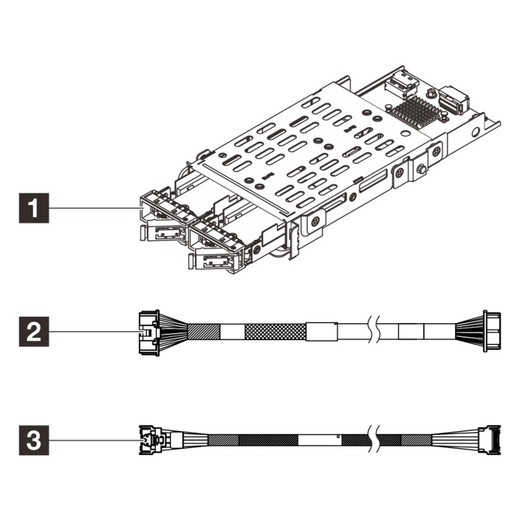

Lenovo 4XH7A96836 SR630 V4 M.2 RAID B540P HS KIT

Lenovo 4XH7A96836 SR630 V4 M.2 RAID B540P Hot-Swap Kit

Overview

The Lenovo 4XH7A96836 is an M.2 RAID B540P hot-swap kit designed for the ThinkSystem SR630 V4 server platform. If you're deploying or expanding an SR630 V4 and need to enable M.2-based boot or caching storage with hot-swap capability, this kit provides the hardware and adapter infrastructure to do it within the server's existing chassis — no external enclosures, no aftermarket brackets. The M.2 form factor keeps the storage footprint compact, and the B540P RAID controller support means you get redundancy without dedicating full-height PCIe slots to storage.

Compatibility

Designed specifically for the Lenovo ThinkSystem SR630 V4 server. This kit is not a universal M.2 adapter — do not attempt to install it in SR630 V2/V3, SR650, or other ThinkSystem platforms unless Lenovo's configuration guide explicitly lists this part number for that system. Confirm your SR630 V4 configuration supports the B540P RAID adapter and has an available M.2 slot position before ordering. Consult the Lenovo ServerProven database or your SR630 V4's hardware maintenance manual to verify slot availability and controller compatibility in your specific BTO configuration.

Installation Notes

Manufactured in Mexico. The kit ships at 10 lb — account for this when planning rack staging logistics, though the installed component weight is negligible. Installation is a tool-assisted internal server procedure; follow ESD precautions and Lenovo's SR630 V4 hardware maintenance guide for proper M.2 carrier seating and RAID controller configuration steps. Hot-swap capability is only active once the B540P adapter and drives are correctly provisioned in the server firmware.
