Lenovo 4XH7A96827 SR630 V4 X8/X8 G5 Riser 1 Fh+lp

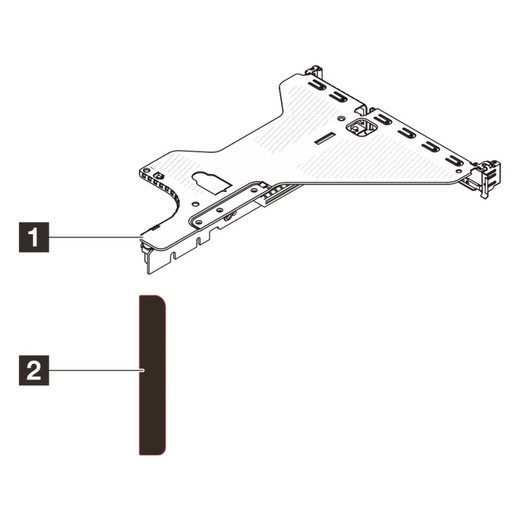

Lenovo 4XH7A96827 SR630 V4 X8/X8 G5 Riser 1 FH+LP PCIe Riser Card

Overview

The Lenovo 4XH7A96827 is a PCIe Gen 5 X8/X8 Riser 1 card in a full-height/low-profile (FH+LP) configuration, designed specifically for the ThinkSystem SR630 V4 rack server. If you're expanding PCIe slot availability in an SR630 V4 build — adding network adapters, HBAs, or other expansion cards — this riser positions those cards correctly in the chassis without requiring a custom bracket solution. At 1.00 lb, it installs directly into the riser slot on the system board and brings two X8 Gen 5 PCIe lanes to the expansion bay.

Compatibility

Designed exclusively for the Lenovo ThinkSystem SR630 V4 server platform. This riser is not interchangeable with SR630 V3, SR650, or other ThinkSystem server options in the family — riser slot geometry and connector pinout are generation- and chassis-specific. Confirm your SR630 V4 chassis configuration before ordering: some SR630 V4 configurations ship with a riser pre-installed, and a second riser may or may not be supported depending on your base system's riser bay layout. The FH+LP form factor accommodates full-height/low-profile PCIe add-in cards in the Riser 1 position.

Installation Notes

Installation requires powering down the server and removing the top cover per standard ThinkSystem service procedures. The riser seats into the dedicated Riser 1 slot on the system planar — no tools beyond a Phillips screwdriver are typically required to secure the bracket. Verify that target PCIe add-in cards conform to the FH+LP physical envelope before installing; full-height/full-length cards will not fit this riser position. Consult the SR630 V4 Hardware Maintenance Guide for slot prioritization rules if populating multiple risers simultaneously.
