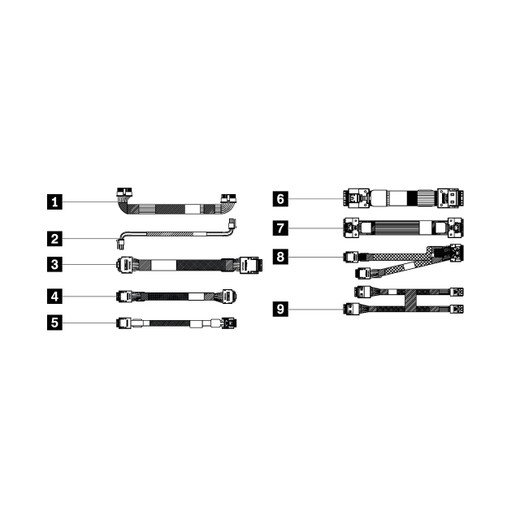

Lenovo 4X97A59982 SR630 V2 8X2.5 Sas/sata BP Cable KIT V2

Lenovo 4X97A59982 SR630 V2 SAS/SATA Backplane Cable Kit

Overview

The Lenovo 4X97A59982 is a SAS/SATA backplane cable kit designed for the ThinkSystem SR630 V2 rack server, specifically supporting 8x 2.5" drive bay configurations. When expanding storage or replacing a damaged cable assembly in an SR630 V2, this kit provides the correct factory-spec harness — eliminating the guesswork of sourcing compatible third-party cabling that may not seat reliably in Lenovo's backplane connectors. The 4X97A59982 supports both SAS and SATA interface types, so it accommodates mixed drive populations across the 8-bay backplane without requiring separate cable sets.

Compatibility

Designed for the Lenovo ThinkSystem Lenovo server SR630 V2 platform in the 8x 2.5" server storage drive configuration. This kit is specific to the V2 revision of the SR630 — do not substitute for SR630 (V1) builds, as backplane connector layouts differ between generations. Verify your server's chassis configuration (8x 2.5" SFF) before ordering; SR630 V2 configurations with different bay counts use separate cable kits. Compatible with both SAS HDDs/SSDs and SATA HDDs/SSDs populating the front drive cage.

Installation Notes

Route and seat all connectors fully before powering the system — partial seating on SAS/SATA backplane connectors is a common cause of drive non-detection. The kit ships as a complete cable assembly; do not mix individual cables from other kits, as pin-out and locking tab geometry are matched to the SR630 V2 backplane. Consult the SR630 V2 server accessories maintenance manual for cable routing paths through the chassis to avoid interference with airflow baffles or GPU riser brackets.
