Lenovo 30K50052US ThinkStation P3 Tiny Gen 2 Intel Core Ultra 9 285 vPro Ecores Up to 4.60GHZ 36MB

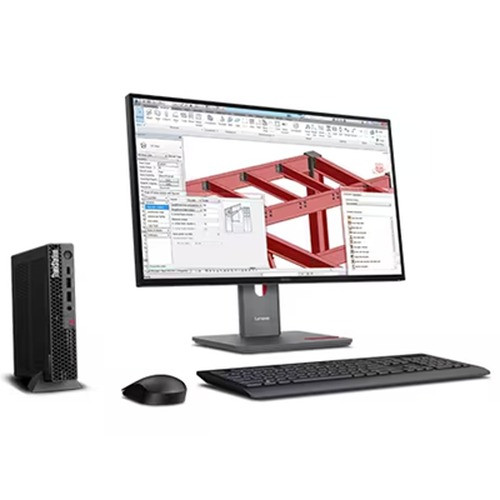

Lenovo 30K50052US ThinkStation P3 Tiny Gen 2 Mini Workstation

Overview

The Lenovo 30K50052US is a compact professional workstation built around the Intel Core Ultra 9 285 vPro processor and an NVIDIA RTX A400 GPU — a combination that delivers certified workstation performance in a chassis roughly the size of a thick hardback book. At 9 lbs and 19.25 × 10.50 × 5.75 inches, it fits under a monitor arm, behind a display, or in a rack tray where a tower would be impractical. This is not a rebadged business desktop: it ships with Windows 11 Pro 64-bit, a PCIe Gen5 NVMe SSD, and Intel vPro manageability out of the box — the stack a security integrator or enterprise IT team actually needs at the edge.

Key Features

• Intel Core Ultra 9 285 vPro (Series 2), 24 cores / 20 threads: The hybrid architecture splits work across 8 Performance cores (boosting to 5.4 GHz) and 16 Efficient cores (boosting to 4.6 GHz). Heavy single-threaded tasks — VMS client rendering, report generation, codec transcoding — hit the P-cores first; background telemetry, OS housekeeping, and lightweight agent processes land on the E-cores without competing for headroom. The result is sustained throughput without the thermal throttling common in fanless or ultra-compact designs.
• 40MB Smart Cache, 182W max turbo power: At 182W peak TDP, this processor can sustain burst workloads that smaller Core i7 designs throttle under in minutes. The 40MB L3 cache keeps large working sets — VMS frame buffers, database indexes, edge inference models — close to the cores, reducing memory latency where it matters most in real-time applications.
• Intel AI Boost NPU: The on-die neural processing unit offloads AI inference tasks (noise suppression, background processing, on-device analytics) from both the CPU cores and the GPU. In a security or surveillance deployment, this means running lightweight edge-AI features without consuming RTX A400 compute budget reserved for graphics-accelerated VMS workloads.
• NVIDIA RTX A400 4GB GDDR6: The RTX A400 is a professional-grade (ISV-certified) GPU — not a consumer GeForce card. This matters for VMS platforms like Milestone, Genetec, and Avigilon that validate GPU decoding against professional driver stacks. 4GB GDDR6 handles multi-stream H.265/H.264 decode and supports up to four simultaneous display outputs, making it practical as a dedicated operator workstation driving a 4-monitor video wall.
• 32GB RAM: Sufficient headroom for a full VMS client plus a browser, reporting tools, and lightweight server-side services running concurrently. If you're running 64+ camera streams in a single-pane VMS, evaluate whether 64GB is warranted — the platform supports upgrades.
• 1TB M.2 2280 PCIe Gen5 Performance TLC Opal SSD: PCIe Gen5 sequential reads roughly double PCIe Gen4 speeds, which translates to faster boot, faster VMS database queries, and faster export of evidence clips. The Opal self-encrypting drive capability means full-disk encryption can be managed at the hardware layer — relevant for deployments with data-at-rest compliance requirements (HIPAA, CJIS, CMMC).
• Intel BE200 vPro Wi-Fi 7 + Bluetooth 5.4: Wi-Fi 7 (802.11be) supports multi-link operation and up to 46 Gbps theoretical throughput — more practically, it provides the low-latency, high-reliability wireless link needed when this unit deploys in areas where running Ethernet is cost-prohibitive. vPro wireless enables out-of-band remote management even when the OS is unresponsive, which matters for edge deployments with limited on-site IT support.
• Intel vPro platform: vPro enables hardware-level remote management (AMT/KVM), hardware-enforced security features, and remote remediation without requiring a functional OS — critical for nodes deployed at remote sites, retail locations, or distributed enterprise campuses where truck rolls are expensive.
• 300W power supply: The 300W PSU comfortably handles the 182W peak CPU + RTX A400 GPU draw plus storage and peripherals without hitting supply limits under sustained load. In a deployment running 24/7, headroom matters more than peak specs — this unit is not running at the edge of its power budget.
• Windows 11 Pro 64-bit (English) pre-installed: Ships ready for domain join, BitLocker, Remote Desktop, and Hyper-V — no additional OS licensing required. The vPro stack pairs with Windows 11 Pro's hardware-based security (TPM, Secure Boot, HVCI) for a defense-in-depth posture without third-party add-ons.
• 3-Year Onsite Warranty: Onsite service means a technician comes to the deployment location — not depot return. For workstations embedded in a security operations center or camera management infrastructure, this eliminates the downtime window that a mail-in repair would create.

Integration and Compatibility

The 30K50052US ships with PCIe, USB, and Ethernet interfaces. The Ethernet port supports wired LAN integration with managed switches and VLAN-segmented security networks. USB connectivity covers peripheral attachment — keyboards, mice, card readers, and dongles. PCIe expansion, available through the platform's slot configuration, allows adding capture cards, additional network interfaces, or specialty I/O cards depending on the deployment requirement.

The NVIDIA RTX A400's professional driver stack is compatible with major VMS platforms that validate GPU-accelerated decoding. The Intel vPro management stack integrates with enterprise endpoint management tools including Microsoft Endpoint Manager (Intune) and Intel EMA for out-of-band device management at scale across distributed sites.

For professional workstations deployed in physical security operations centers, the combination of vPro remote management and Opal-encrypted storage addresses two of the most common enterprise IT requirements simultaneously. Pair this unit with a managed PoE switch for camera infrastructure or a network video recorder for dedicated recording, reserving this workstation for operator display and VMS client duties. See the IP camera catalog for compatible camera lines supported by major VMS platforms, and the VMS workstation selection guide for sizing guidance on stream count vs. GPU decode capacity.

Frequently Asked Questions

Q: What processor does the 30K50052US use, and how many cores does it have?

A: It uses the Intel Core Ultra 9 285 vPro (Series 2) — a 24-core, 20-thread hybrid processor with 8 Performance cores boosting to 5.4 GHz and 16 Efficient cores boosting to 4.6 GHz. The 40MB Smart Cache and up to 182W turbo power envelope support sustained workstation-class workloads.

Q: What GPU is included, and is it suitable for VMS multi-monitor setups?

A: The 30K50052US includes an NVIDIA RTX A400 with 4GB GDDR6. The RTX A400 is a professional-grade GPU with ISV-certified drivers, making it compatible with VMS platforms that validate GPU-accelerated H.265/H.264 decode. It supports up to four simultaneous display outputs, suitable for multi-monitor operator stations.

Q: What type of storage does this workstation include?

A: It ships with a 1TB M.2 2280 PCIe Gen5 Performance TLC SSD with Opal self-encrypting drive capability. PCIe Gen5 delivers significantly faster sequential performance than Gen4, and the Opal feature supports hardware-managed full-disk encryption for compliance-driven deployments.

Q: What does the 3-Year Onsite Warranty cover?

A: The included 3-year onsite warranty provides on-location service — a technician dispatched to the deployment site rather than depot return shipping. This is the relevant coverage level for workstations embedded in security operations infrastructure where downtime is operationally disruptive.

Q: Does this system support remote management for distributed deployments?

A: Yes. The Intel vPro platform (with Intel BE200 vPro Wi-Fi 7) enables out-of-band hardware-level remote management via Intel AMT/KVM — functional even when the OS is unresponsive. This makes the unit practical for edge or multi-site deployments where on-site IT support is limited.

Q: What wireless standard does the 30K50052US support?

A: It includes an Intel BE200 vPro adapter supporting Wi-Fi 7 (802.11be) with Bluetooth 5.4. Wi-Fi 7's multi-link operation provides lower latency and higher reliability than Wi-Fi 6E — relevant for installations where wired Ethernet is not feasible.

Marty Allison

The 30K50052US stands out in the mini workstation space specifically because of its 182W max turbo power envelope — that's a number most compact workstations can't sustain, and it's what separates this from a business-class mini PC when you're running a VMS client decoding 32+ H.265 streams alongside live analytics. The RTX A400 handles the GPU decode side while the Core Ultra 9 285 P-cores stay available for application logic, reporting, and anything else the operator needs simultaneously.

Technical Highlights:

• Core Ultra 9 285 vPro — 8P + 16E cores: The P-core / E-core split means VMS rendering and codec work hits the 5.4 GHz Performance cores while background processes (telemetry agents, AV scans, OS updates) run on the 16 Efficient cores at 4.6 GHz — no contention, no thermal queue, no user-visible stutter during live monitoring.
• PCIe Gen5 NVMe SSD with Opal encryption: Gen5 sequential bandwidth is roughly double Gen4, which translates directly to faster evidence export under time pressure. The Opal SED capability lets you enforce full-disk encryption at the hardware layer — if a compliance audit asks about data-at-rest on your VMS workstations, this box checks that requirement without software overhead.
• Intel BE200 vPro + Wi-Fi 7: Out-of-band remote management over Wi-Fi 7 means you can KVM into this machine, push a BIOS update, or recover a hung OS without ever touching it physically. For edge security nodes at retail branches or distributed enterprise campuses, that capability eliminates most emergency truck rolls.

Deployment Considerations:

• At 9 lbs and 19.25 × 10.50 × 5.75 inches, this fits behind a monitor or in a VESA-mount bracket — but confirm your mounting hardware supports 9 lbs. The physical footprint is not an issue; the weight occasionally is for lighter monitor stands.
• The RTX A400 4GB GDDR6 handles multi-stream decode comfortably, but if your VMS deployment exceeds 64 simultaneous H.265 streams or requires AI-accelerated analytics on every stream simultaneously, evaluate whether a higher-VRAM professional GPU variant is warranted — 4GB fills fast when frame buffers stack up.

This unit is the right pick for a security operations center operator station where you need professional GPU drivers, hardware remote management, and a sub-10-lb footprint — think a distributed retail loss prevention node or a satellite SOC terminal that needs to be managed remotely but can't justify a full tower.
